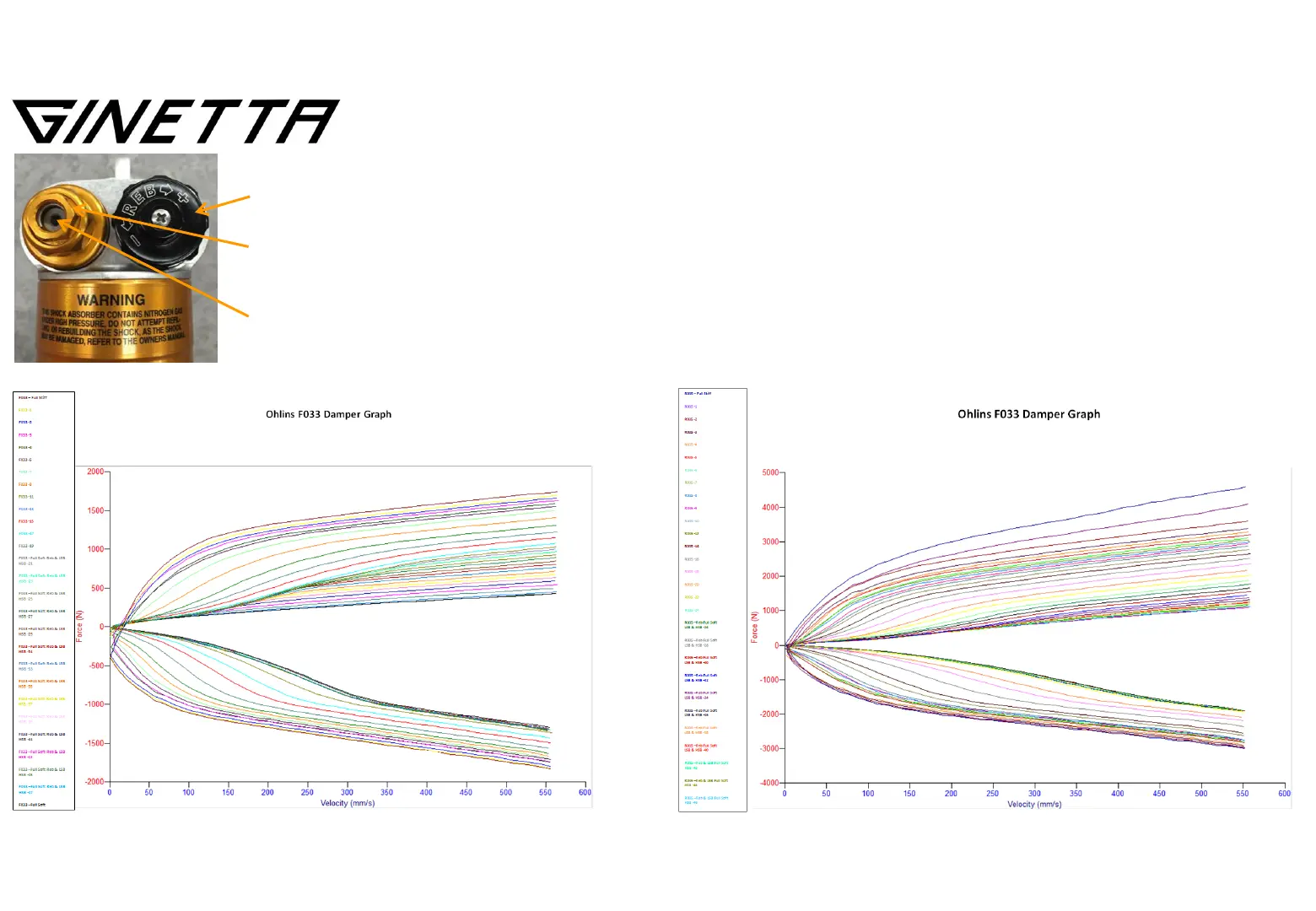

G58 Front Damper Dyno Data
26
Damper Adjustments
Damper settings are stated from full stiff (Clockwise).
• The gold adjuster is high & low speed bump
• Low speed is adjusted using a 3mm hex key
• High speed with a 12mm spanner.
• (Do not turn large outer hex)
• Rebound is adjusted by turning the adjuster knob
Rebound
Low speed bump
(3mm hex key)
High speed bump
(12mm spanner)
G58 Rear Damper Dyno Data
