Corner Weight
20
Adjustment:
• Make small changes in ride height and document each change
• To increase a given corner weight raise the ride height on that corner
• This will also increase weight on the diagonally opposite corner
• And reduce weight on the other two corners
• Always attempt to maintain ideal ride heights.
• E.g. rather than one full turn up make two smaller changes of
half turn up on one side, half turn down on other side
• Ensure left – right ride heights difference is as small as possible
• Front ride height more critical than rear
• For small changes we recommend changing rear ride heights to keep
the front aero platform level
Measurement:

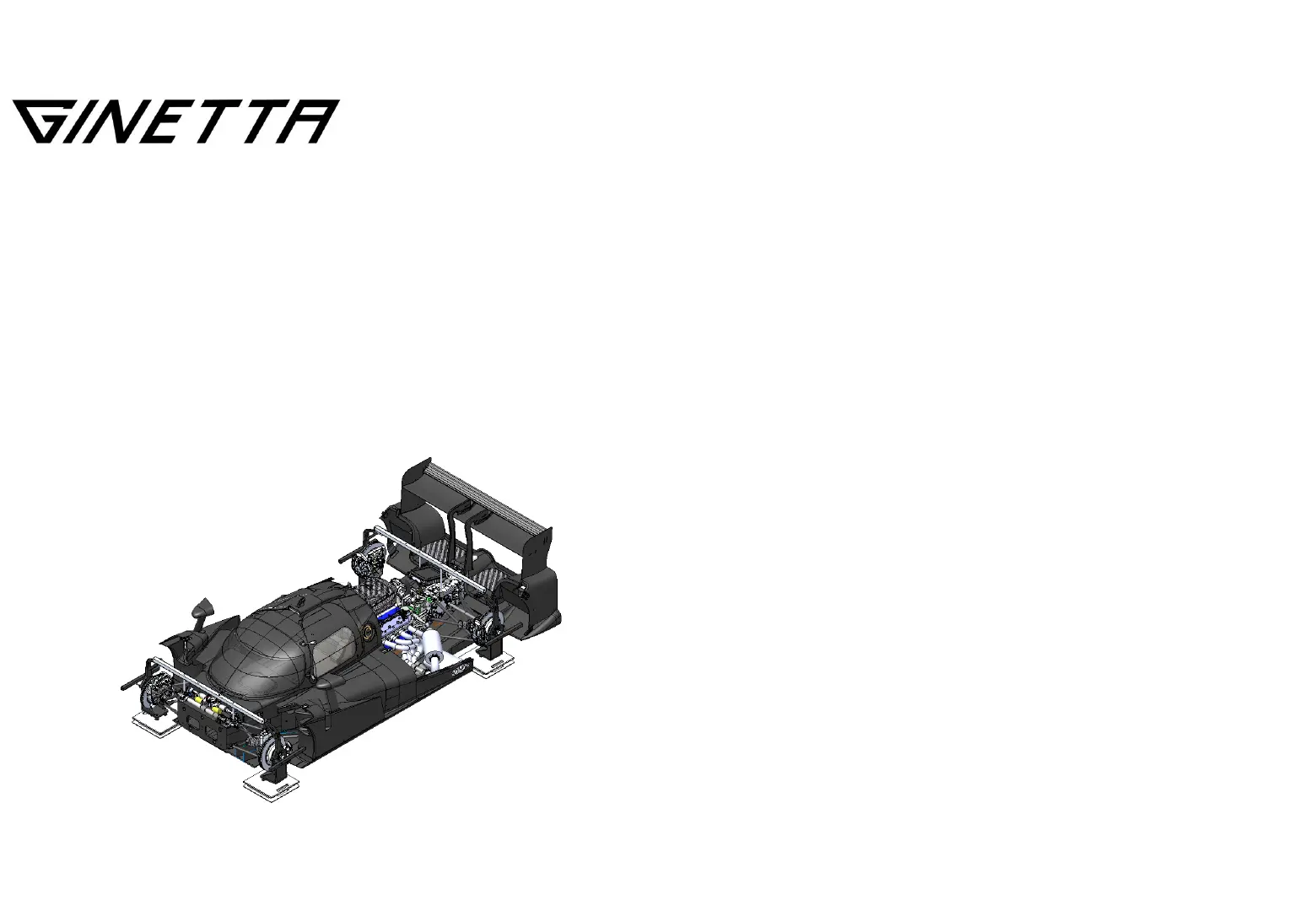

• Lower car onto corner weight scales
• Bounce front and rear end simultaneously
• Let car settle
• Target:
• 0-2kg difference corner weight across front axle
• 50/50 weight distribution left – right with driver weight
• Same ride height across front axle
