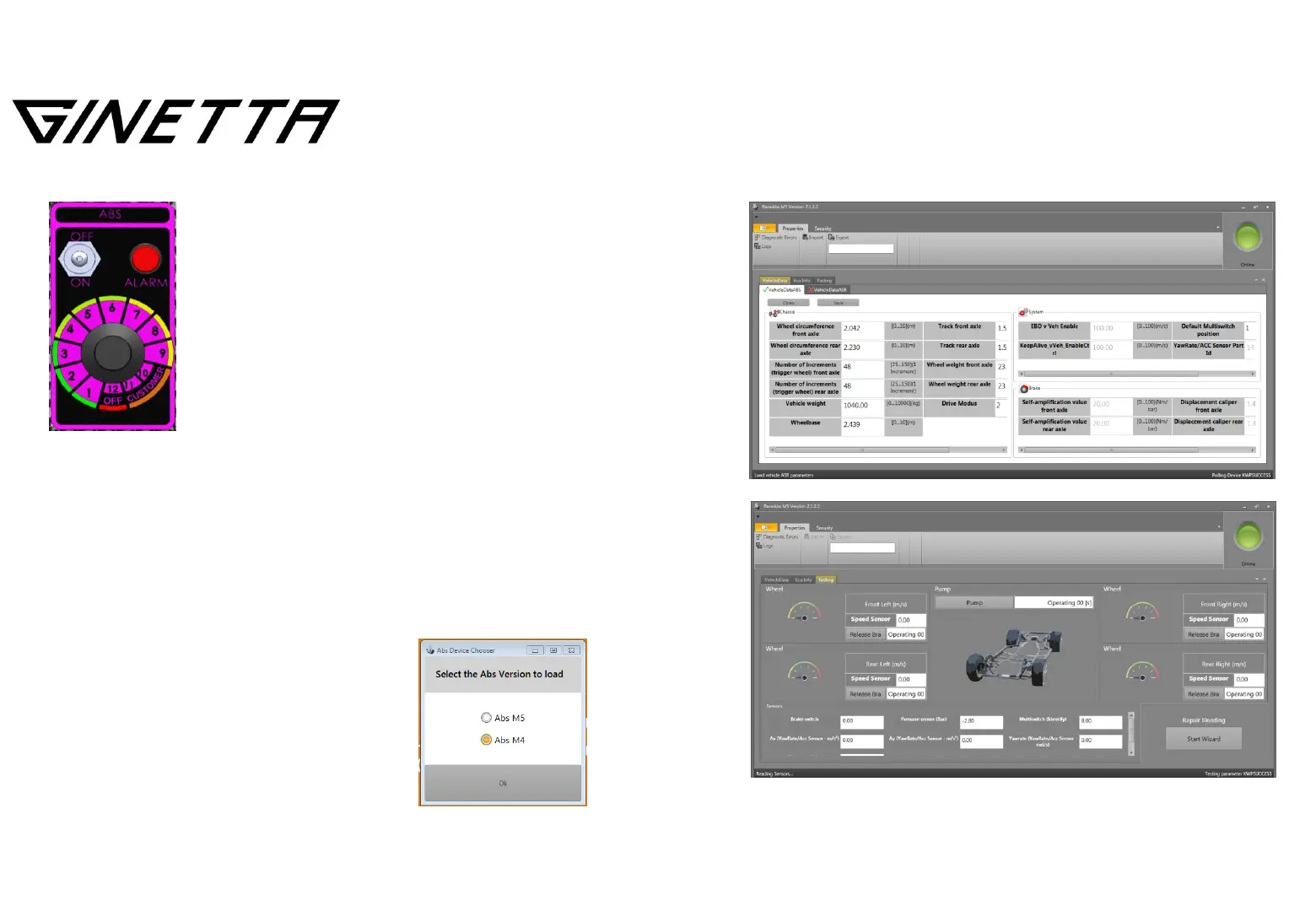

Anti-lock Braking System
General information:
• Ensure ABS is ON and in Position 12 for gearbox run up
• Return to desired setting before car goes to circuit
• Position 1 is full wet conditions
• Position 9 is full dry conditions (Recommended default)
• Positions 10 and 11 are Ginetta configured maps
• If red alarm light is lit ABS is NON functional
Bosch RaceABS:
• Select “ABS M4” upon start up
• Initial page shows ABS configuration (pre-set from Ginetta)
• ECU info tab enables the user to clear and save any faults
• Testing tab enables the user to test each wheel speed sensor individually as well
as bleed the ABS system
