3. Installation
User Manual
3.1.1.1 Examples of correct and incorrect installations
3.1.2 Other environmental considerations
3.1.2.1 Consult technical data
Consult the specifications section (section 10) for additional environmental conditions
(protection rating, temperature, humidity, altitude, etc.).
3.1.2.2 Vertical wall installation
This model of Solis inverter should be mounted vertically.

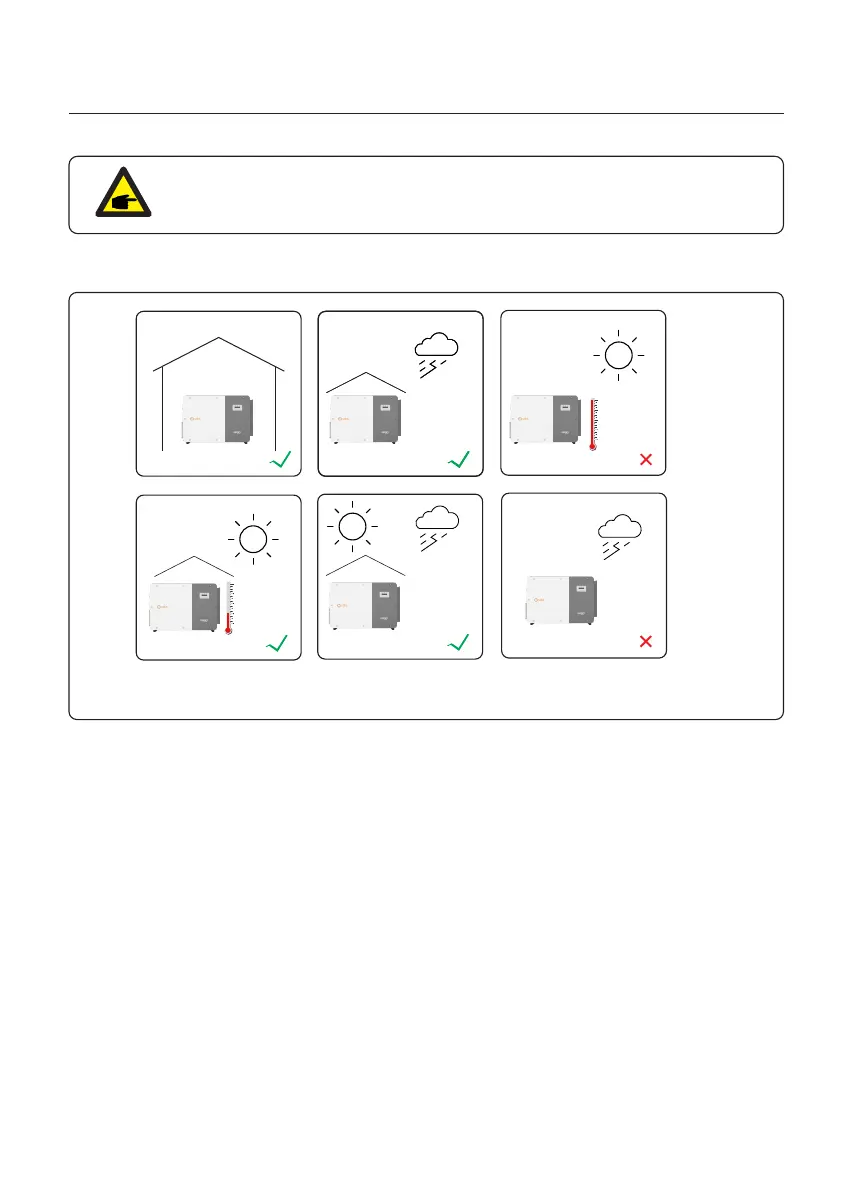

Figure 3.1 Recommended Installation locations
3.1.2.3 Avoiding direct sunlight
Installation of the inverter in a location exposed to direct sunlight should to be avoided.
Direct exposure to sunlight could cause:
● Power output limitation (with a resulting decreased energy production by the system).
● Premature wear of the electrical/electromechanical components.
● Premature wear of the mechanical components (gaskets) and user interface.
12
Indoor
Direct Sun
Shade Cover
Shade Cover
Direct Rain
Shade Cover
Rating
NEMA 4X
NOTE
Nothing should be stored on or placed against the inverter.
