3. Installation
WARNING
Due to the weight of the inverter, contusions or bone fractures could
occur when incorrectly lifting and mounting the inverter. When mounting
the inverter, take the weight of the inverter into consideration. Use a suitable
lifting technique when mounting. When installers are carrying the inverter,
please use 4 handles to secure safety. Lifting force of each handle shall not
exceed 1.5 times of the inverter weight.
In case of using hoisting to lift the inverter, fix the hoisting cable to the hanger shown in the
graph. Please make a reasonable selection of hoisting equipment considering the inverter
weight of 113kg/249lb.

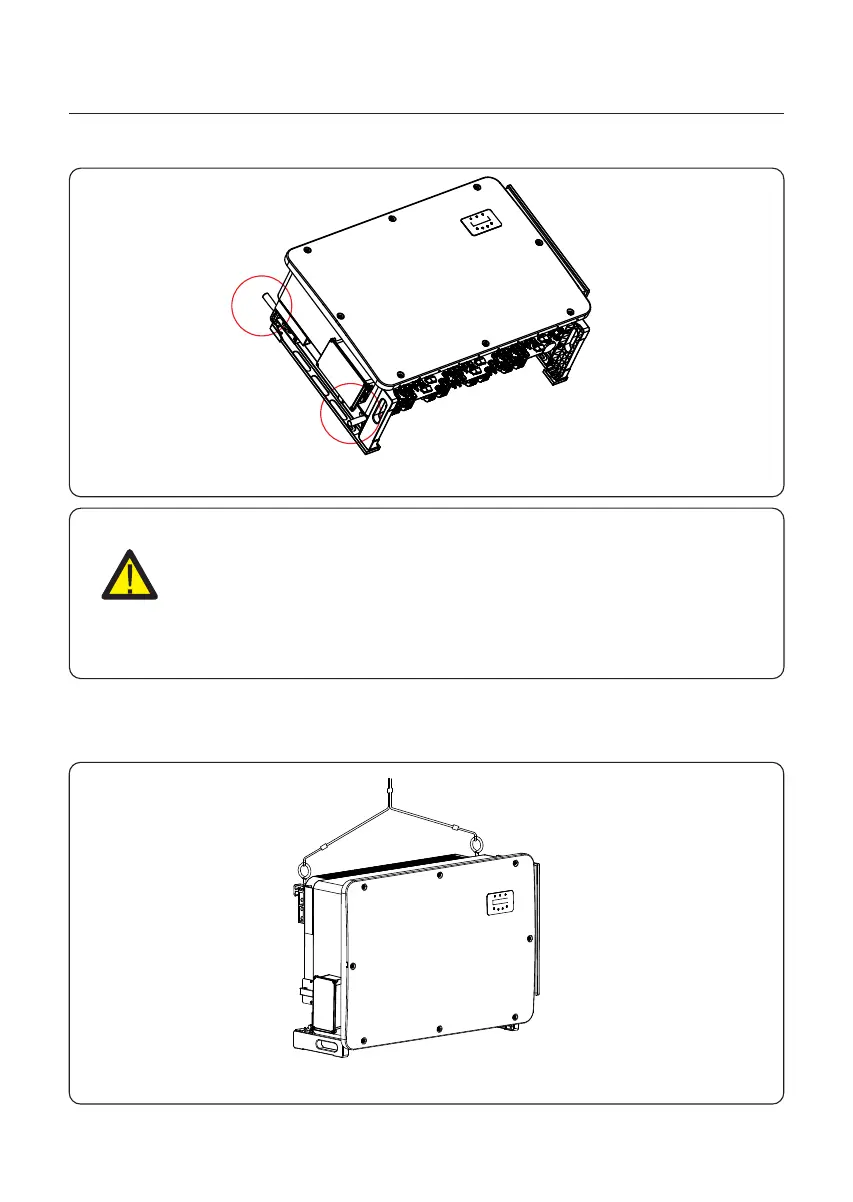

Figure 3.6 Hoisting sketch
15
Figure 3.5 Inverter handles
