User Manual
19
NOTE
After crimping the terminal to the wire, inspect the connection to ensure the
terminal is solidly crimped to the wire.
5. Remove the screw from the heat sink ground point.

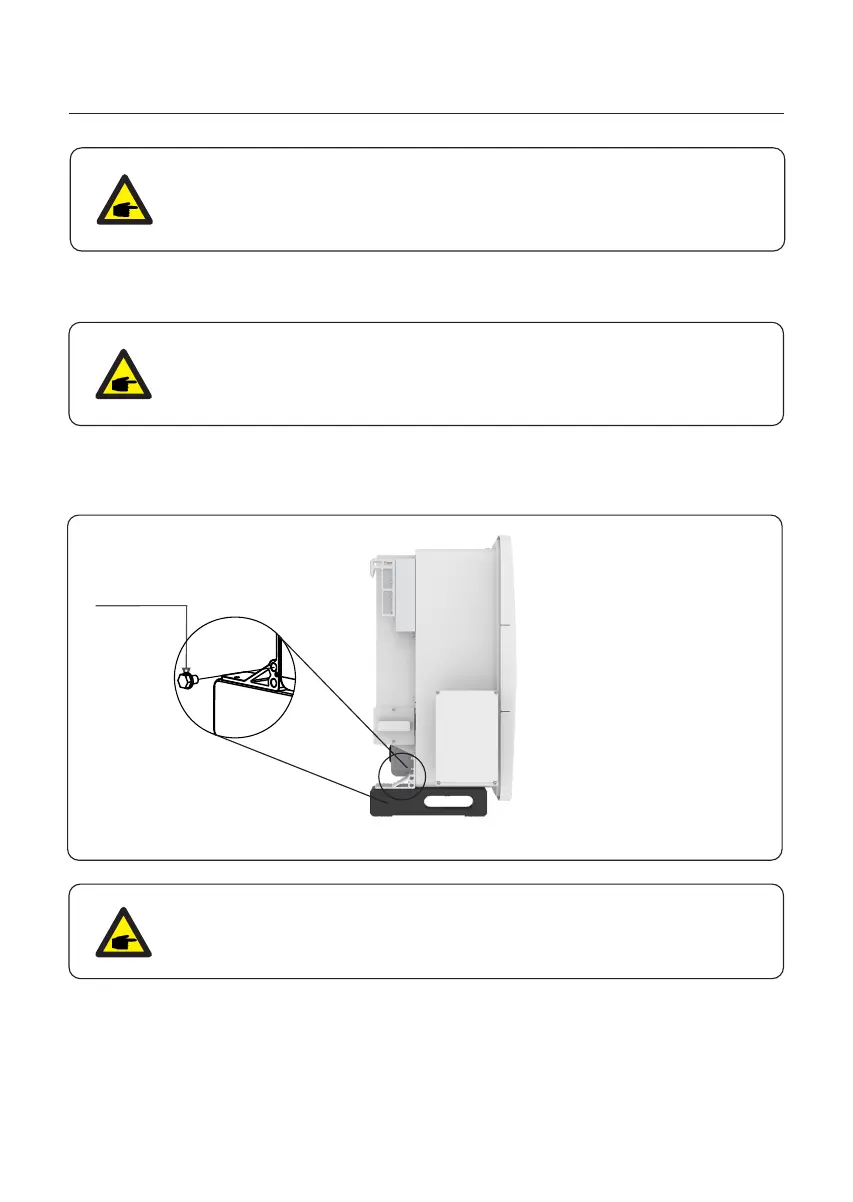

Figure 3.12 Fixed cable
To reduce corrosion, apply silicone or paint to the screw after ground cable
has been installed.
NOTE
6. Connect the grounding cable to the grounding point on the heat sink, and tighten the
grounding screw, Torque is 7.4-8.9 ft.lbs.
4. Insert the stripped wire into the OT terminal crimping area and use the hydraulic
clamp to crimp the terminal to the wire.
Grounding Screw
Torque：7.4-8.9 ft.lbs
3. Installation
NOTE
B (insulation stripping length) is 2mm~3mm longer than A (OT cable
terminal crimping area) .
