ADVANCED CONNECTIONS 81
11 - Advanced Connections

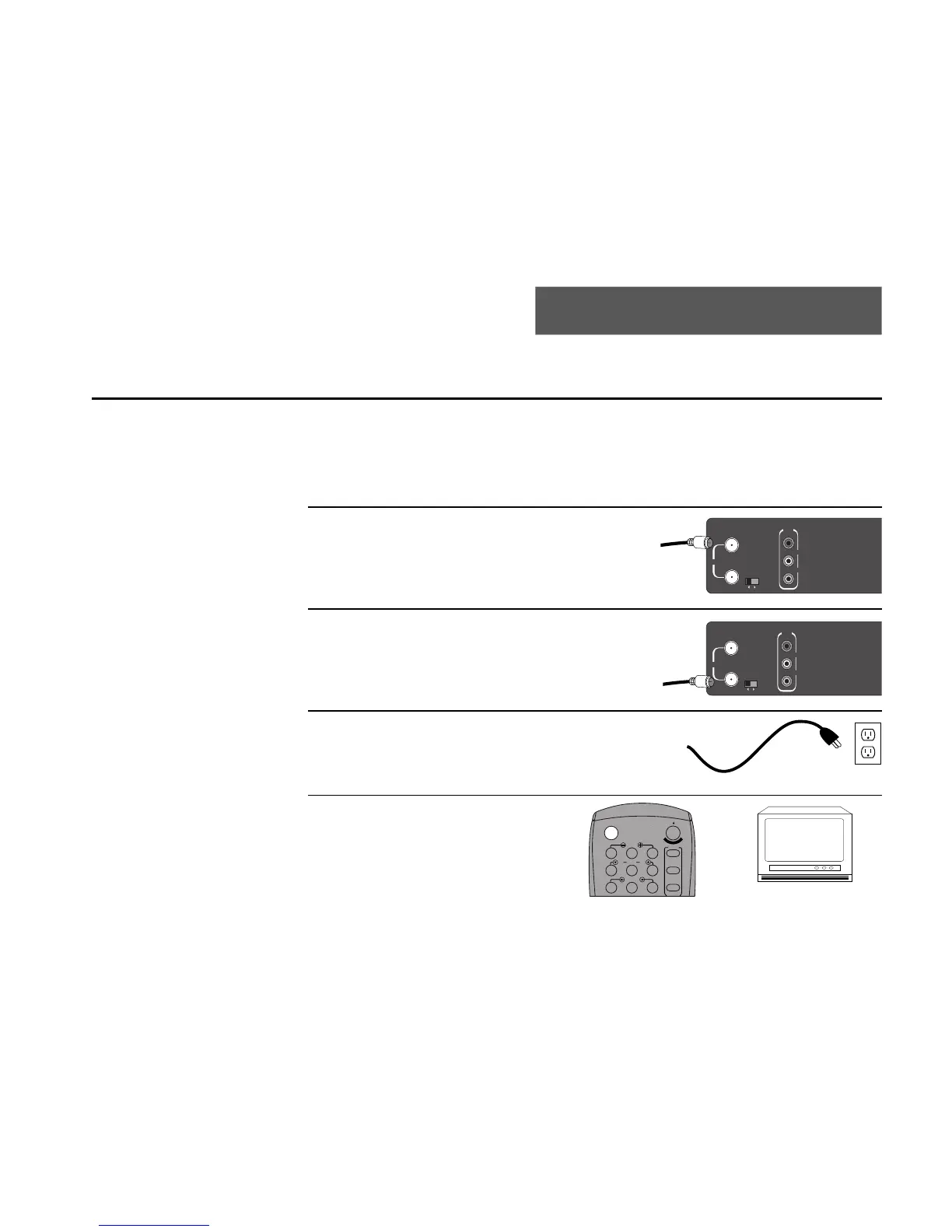

Cable Box Hookup
This chapter will show you
how to connect external
devices, such as a cable box,
stereo, or satellite receiver, to
your Dual-Deck VCR.
1
2
3
Connect Cable to Cable Box
Connect an RF antenna cable from your cable
wall outlet to the “In from Cable” jack on the
Cable Box.
Connect Cable Box to VCR
Connect a second RF cable from the “Out to
TV” jack on the Cable Box to the “IN (FROM
ANT.)” jack on the back panel of the VCR.
Connect VCR to TV
Connect the supplied RF cable from the “OUT
(TO TV)” jack on the back panel of the VCR to
your television’s “Antenna In” jack.
Plug In VCR
Connect the VCR power cord to a standard
120V/60Hz wall outlet.
Turn On TV, VCR & Cable Box
Press the power buttons on the remote control,
TV, and Cable Box.
4
From Cable
Box
To TV
IN
(FROM ANT.)
RF
OUT
(TO TV)
R
AUDIO
L
VIDEO
LINE
OUT
CH
3 4
IN
(FROM ANT.)
RF
OUT
(TO TV)
R
AUDIO
L
VIDEO
LINE
OUT
CH
3 4
5
1
2
3
4
5
7
89
AUTO
SHUTTLE
TRK TRK
POWER
C
O
P
Y
T
A
P
E
SLOW
6
¥TV
¥CABLE
¥DSS
VCR
ON
