Goodwe GW10K-ET User Manual

23
05 InstallationUser Manual V1.1-2022-12-20

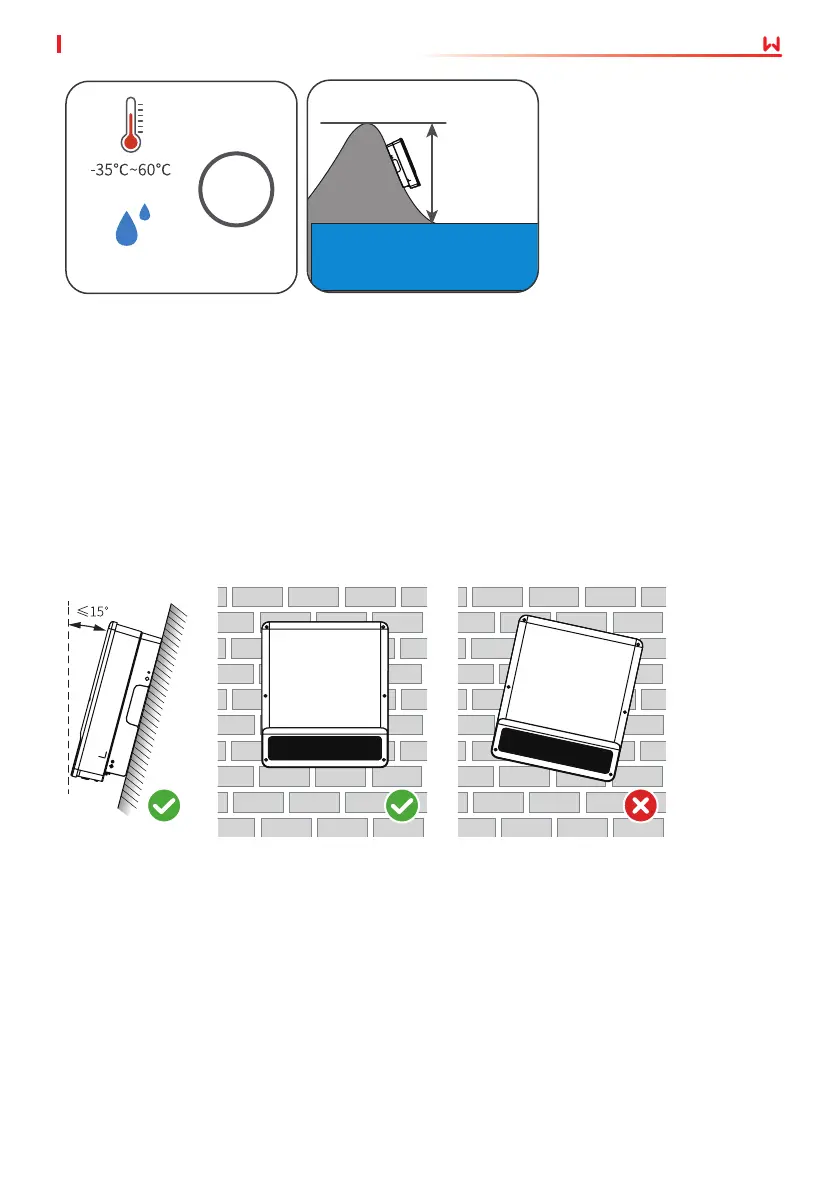

Mounting Support Requirements
• The mounting support shall be nonammable and reproof.
• Install the equipment on a surface that is solid enough to bear the inverter weight.
• Do not install the product on the support with poor sound insulation to avoid the noise
bothering people nearby.
Installation Angle Requirements
• Install the inverter vertically or at a maximum back tilt of 15 degrees.
• Do not install the inverter upside down, forward tilt, back forward tilt, or horizontally.
0%~95%RH
IP66
ALT: 4000m

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
