Goodwe GW10K-ET User Manual

39
06 Electrical ConnectionUser Manual V1.1-2022-12-20
6.7 Communication
6.7.1 Connecting the Communication Cable
NOTICE
Make sure that the communication device is connected to the right COM port. Route the
communication cable far away from any interference source or power cable to prevent the
signal from being inuenced.

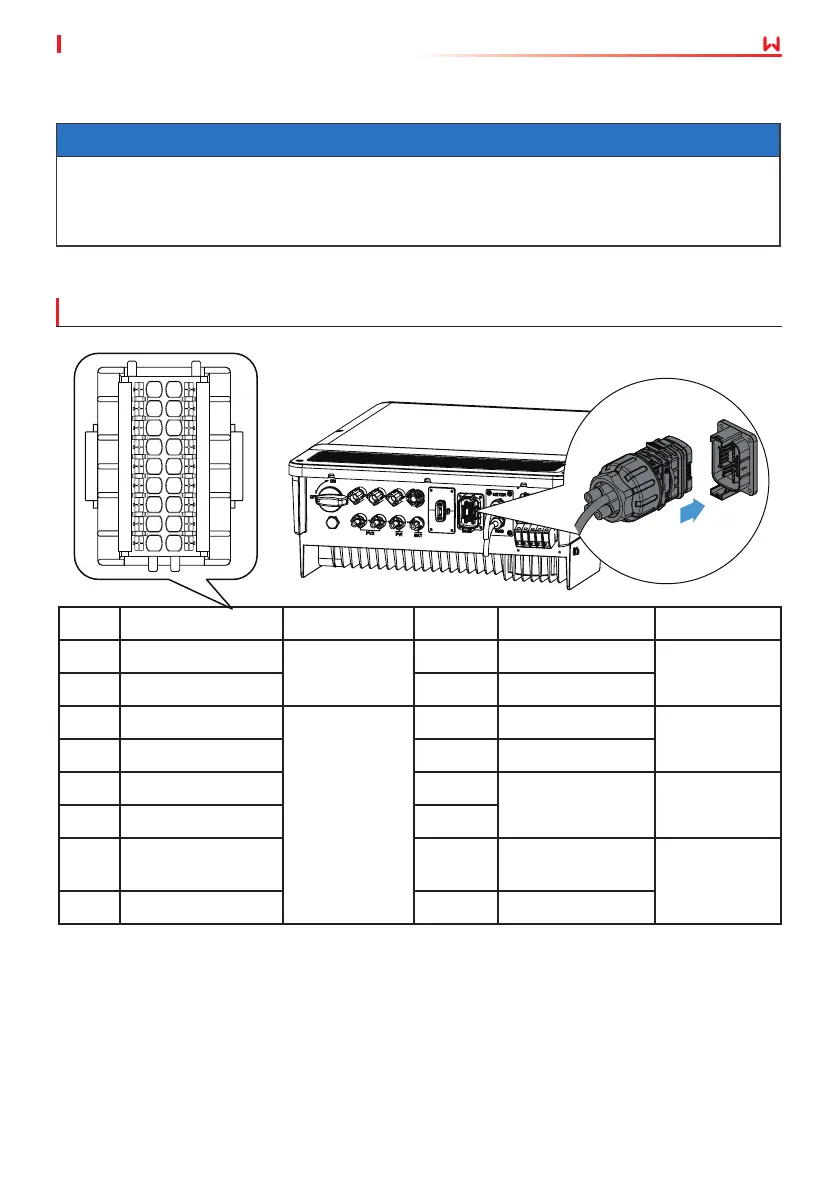

Type I (18PIN Terminal Block)
PIN Denition Function PIN Denition Function
1 485_A1
RS485 or EMS
9 Remote Shutdown
Remote
Shutdown*
2 485_B1 10 GND-S
3 DRM 1/5 or DI_1
DRED* or RCR
11 LG_EN+
LG battery
enable signal
4 DRM 2/6 or DI_2 12 LG_EN-
5 DRM 3/7 or DI_3 13/14
N/A N/A
6 DRM 4/8 or DI_4 15/16
7
COM/DRM0 or
REF_1
17 DO-
Load control
dry contact
8 REFGEN or REF_2 18 DO+
2 4 6 8 10 12 14 16 18
1 3 5 7 9 11 13 15 17

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
