05 Installation User Manual V1.1-2022-12-20
5 Installation
5.1 Installation Requirements

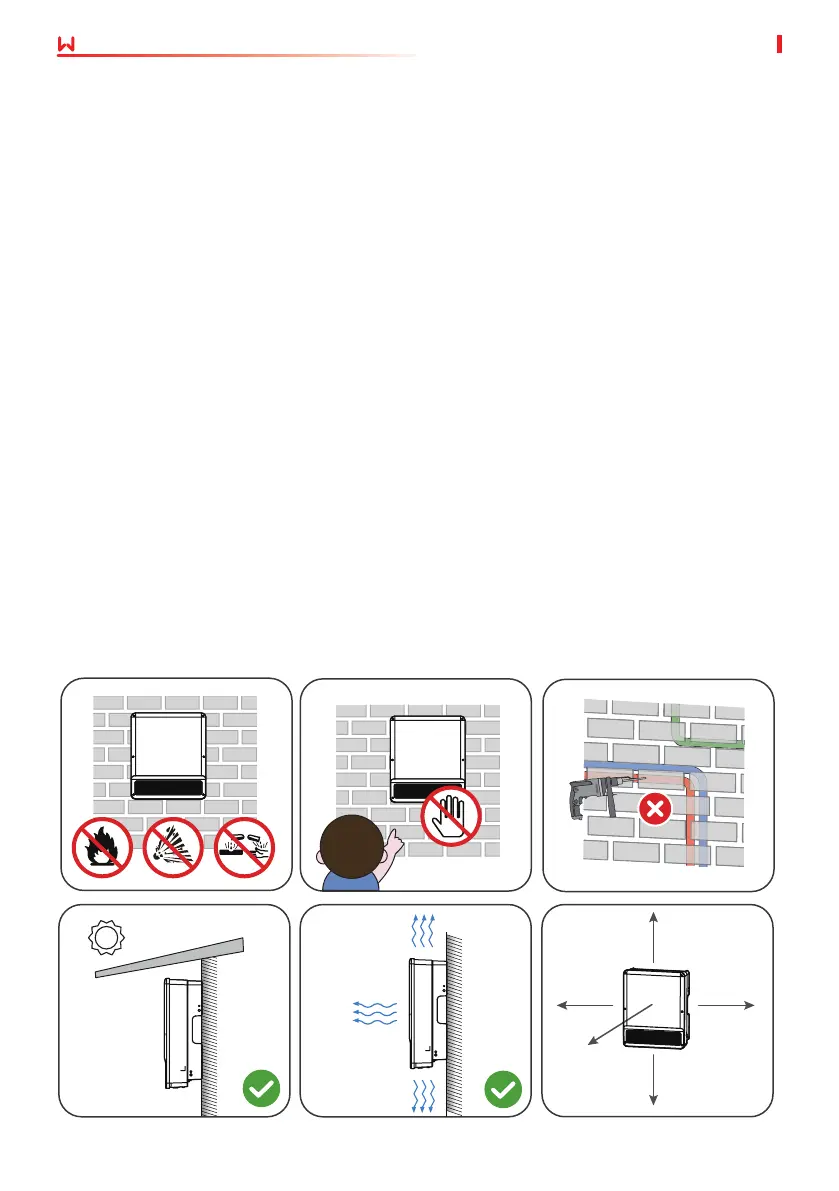

Installation Environment Requirements
1. Do not install the equipment in a place near ammable, explosive, or corrosive materials.
2. Do not install the equipment in a place that is easy to touch, especially within children’s reach.
High temperature exists when the equipment is working. Do not touch the surface to avoid
burning.
3. Avoid the water pipes and cables buried in the wall when drilling holes.
4. Install the equipment in a sheltered place to avoid direct sunlight, rain, and snow. Build a
sunshade if it is needed.
5. The place to install the equipment shall be well-ventilated for heat dissipation and large
enough for operations.
6. The equipment with a high ingress protection rating can be installed indoors or outdoors.
The temperature and humidity at the installation site should be within the appropriate range.
7. Install the equipment at a height that is convenient for operation and maintenance, electrical
connections, and checking indicators and labels.
8. The inverter shall be installed below the maximum operating elevation of 4000m.
9. Install the equipment away from electromagnetic interference. If there is any radio or
wireless communication equipment below 30MHz near the equipment, you have to:
• Add a multi-turn winding ferrite core at the DC input line or AC output line of the inverter,
or add a low-pass EMI lter.
• Install the inverter at least 30m far away from the wireless equipment.
Children No Touch
≥300mm
≥200mm ≥200mm
≥500mm
≥300mm

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
