Goodwe GW10K-ET User Manual

17
03 Product IntroductionUser Manual V1.1-2022-12-20

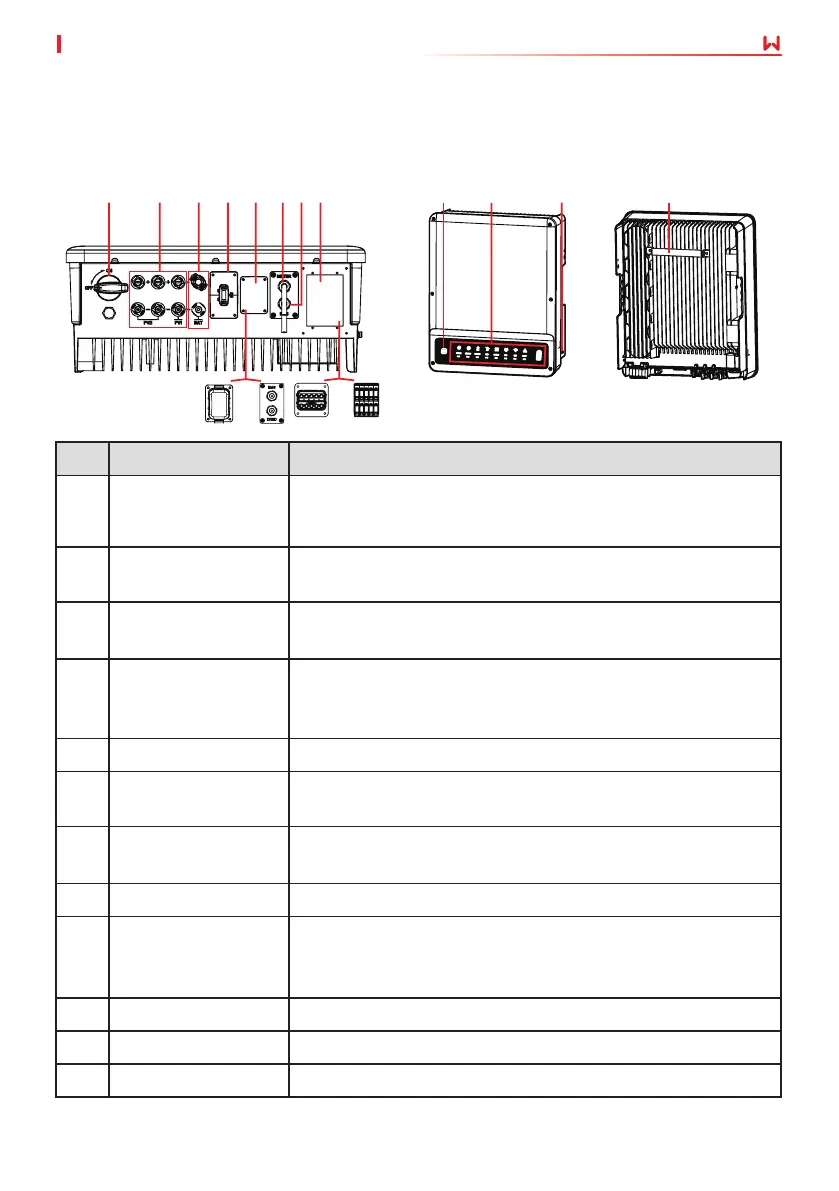

3.5 Appearance
3.5.1 Parts
No. Parts Description
1 DC Switch Starts or stops DC input.
Only for hybrid inverters.
GW5KL-ET, GW6KL-ET, GW8KL-ET,GW10KL-ET: optional.
2 PV input terminal Connects the PV module DC input cables.
Only for ET series and ET Plus series.
3 Battery input
terminal
Connects the battery input cables.
4 Communication
module port
Connects communication modules like Bluetooth, WiFi, LAN,
4G, etc.
Only for ET series and ET Plus series.
5 Communication port Supports RS485, DRED, RCR, DO, EMS etc.
6 Meter
communication port
Connects the smart meter communication cable.
7 BMS communication
port
Connects the battery BMS communication cable.
8 AC output terminal Connects the AC output cable.
9 Wi-Fi reset • Short press the button to restart the WiFi module.
• Long press for at least 3 seconds to factory reset the WiFi
module.
10 Indicators Indicates working status of the inverter.
11 PE terminal Connects the grounding cable.
12 Mounting Plate Used to install the inverter.
1 2 3 4 6 75
or
or
8
9
10 11 12

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
