Goodwe GW10K-ET User Manual

45
06 Electrical ConnectionUser Manual V1.1-2022-12-20

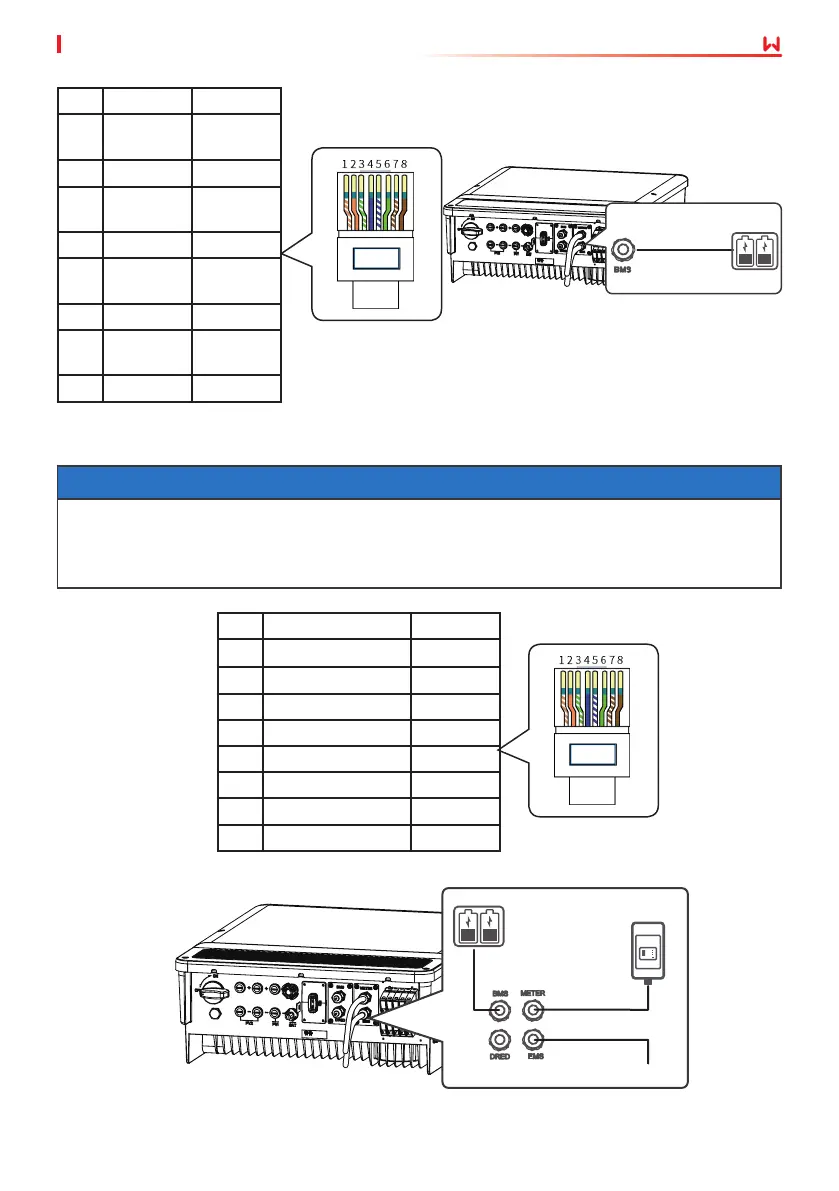

No. Color BMS
1
Orange
and White
485_A2
2 Orange
NC
3
Green and
White
485_B2
4 Blue CAN_H
5
Blue and
White
CAN_L
6 Green NC
7
Brown
and White
NC
8 Brown NC
No. Color EMS
1 Orange and White 485_A
2 Orange 485_B
3 Green and White 485_A
4 Blue NC
5 Blue and White NC
6 Green 485_B
7 Brown and White NC
8 Brown NC
NOTICE
Connect the EMS communication cable to the 18PIN communication terminal block when a
18PIN terminal block is applied. Connect the EMS communication cable as following when the
18PIN terminal block is not applied.
6.7.4 Connecting the EMS Communication Cable
To Battery
Smart
meter
Battery
To smart meter
To EMS device
To battery

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
