06 Electrical ConnectionUser Manual V1.1-2022-12-20
N and PE cables shall be wired separately in the Main Panel.

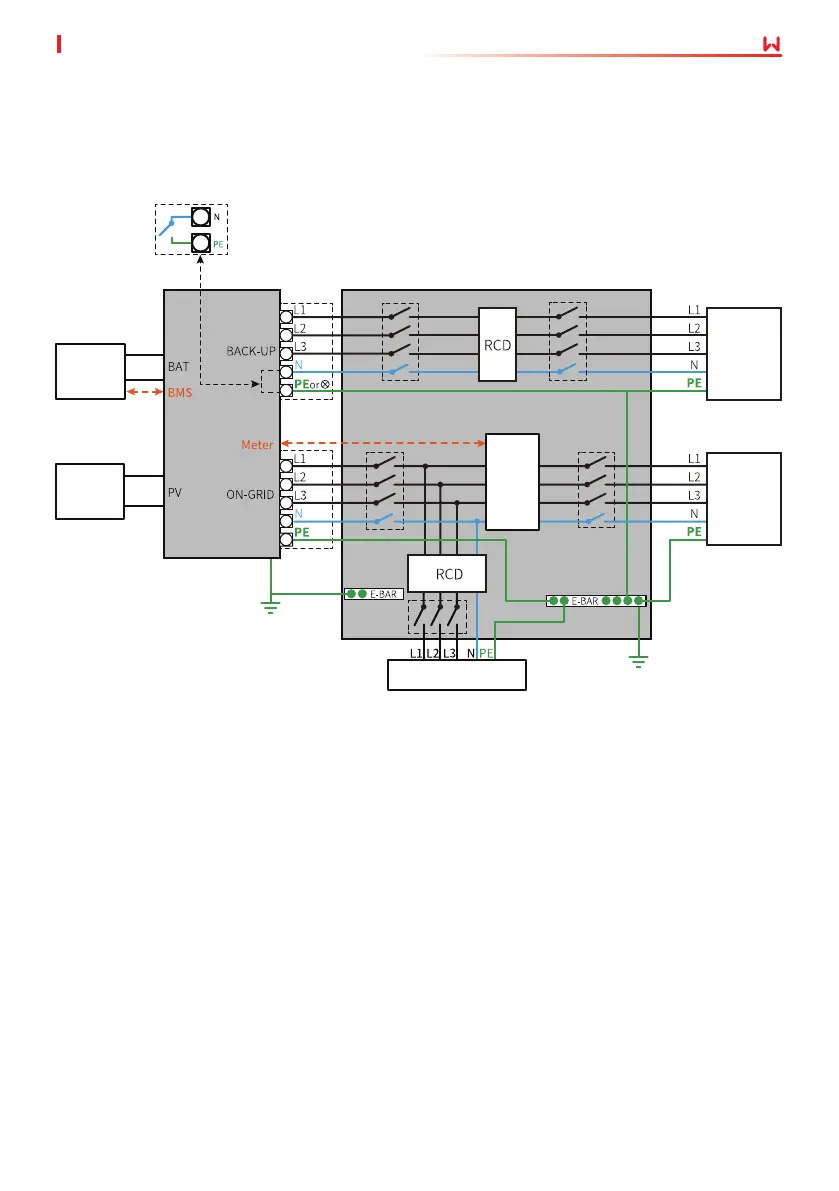

The following diagram is applicable to areas except Australia, New Zealand, South Africa.
Main PanelInverter
Battery
PV
string
• The internal relay will automatically connect the N wire and PE cable
when the inverter is in BACK-UP mode.
• The internal relay will automatically disconnect the N wire and PE
cable when the inverter is in ON-GRID mode.
BACK-UP
loads
Household loads
Utility
grid
Smart
meter

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
