Gooxi SL101-D04R-G3 User Manual

23

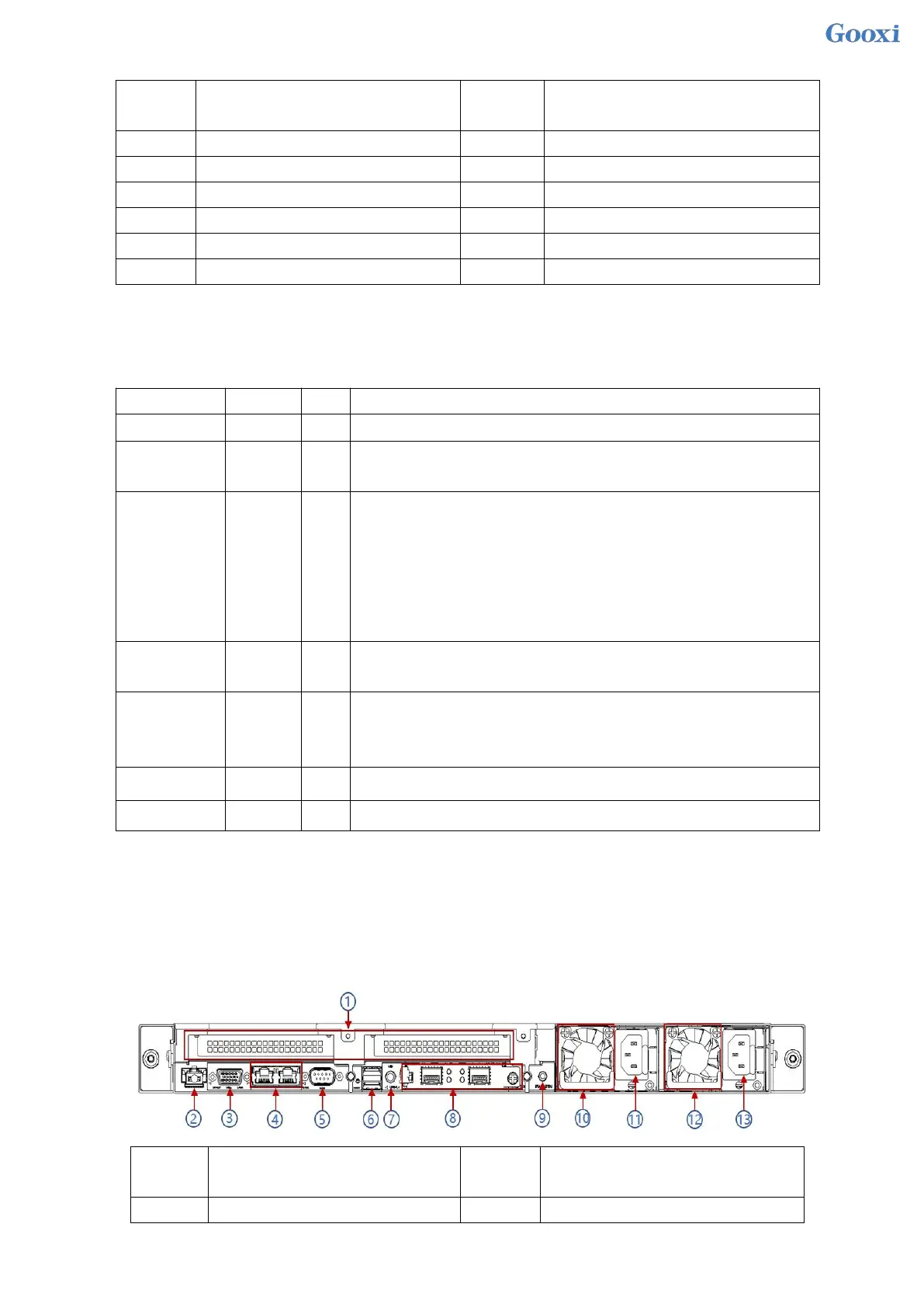

Figure 2- 9
Serial
number
Name
Serial
number
Name
1
Riser module
7
USB 3.0 port
2
Hard disk module
8
OCP3.0 port
3
Management network port
9
Power Module 1
4
VGA port
10
Power Module 1 AC port
5
RJ45 Gigabit Ethernet port
11
Power Module 2
6
COM port
12
Power Module 2 AC port
Table 1- 14
 Description:
Both 1 and 2 can be equipped with rear hard disk modules or Riser modules. This picture is for reference
only, and the actual configuration shall prevail.
Rear panel port description
Name
Types of
No.
Description
VGA port
DB15
1
For connecting to a display terminal such as a monitor or KVM.
Management
network port
GE
BASE-T
1
Provide outgoing 1000Mbit/s Ethernet port. The server can be
managed through this interface.
USB port
USB 3.0
2
Provides an outgoing USB port via which USB devices can be
connected.
Notice:
When using an external USB device, please make sure that the USB
device is in good condition, otherwise the server may work
abnormally.
RJ45 Gigabit
Ethernet port
GE
BASE-T
2
Server service network port.
Power
Module AC
port
/
1 or
2
You can choose the number of power supplies according to your
actual needs, but make sure that the rated power of the power supply
is greater than the rated power of the whole machine.
COM port
1
Serial communication port
OCP3.0 port
1
Install the network card of OCP3.0
Table 1- 15
Rear Panel Indicators and Button Descriptions
Serial
number
Name
Serial
number
Name
1
Riser module
8
OCP3.0 port
