Maintenance
20 309856A
Maintenance
Supplied Tool Kit
• Hex Nut Driver; 5/16
• Screwdriver; 1/8 blade
• CeramTip Drill Bit; various sizes depending on
CeramTip size. See T
ABLE
2, page 24.
• Polycarballoy Mix Module Drill Bit; various sizes
depending on port size. See T
ABLE
1, page 23.
• 117661 Pin Vise; dual reversible chucks
• 15B817 Flush Manifold
Keep Gun Clean
Keep gun clean with accessory gun cover, page 49.
Applying a light coat of lubricant will make cleaning eas-
ier.
As Needed
Daily
Weekly to Monthly
1.
Clean Outside of Gun
, page 21.
2.
Clean CeramTip
, page 24, a minimum of once a
day.
3.
Clean Air Cap
, page 21.
TI3864a

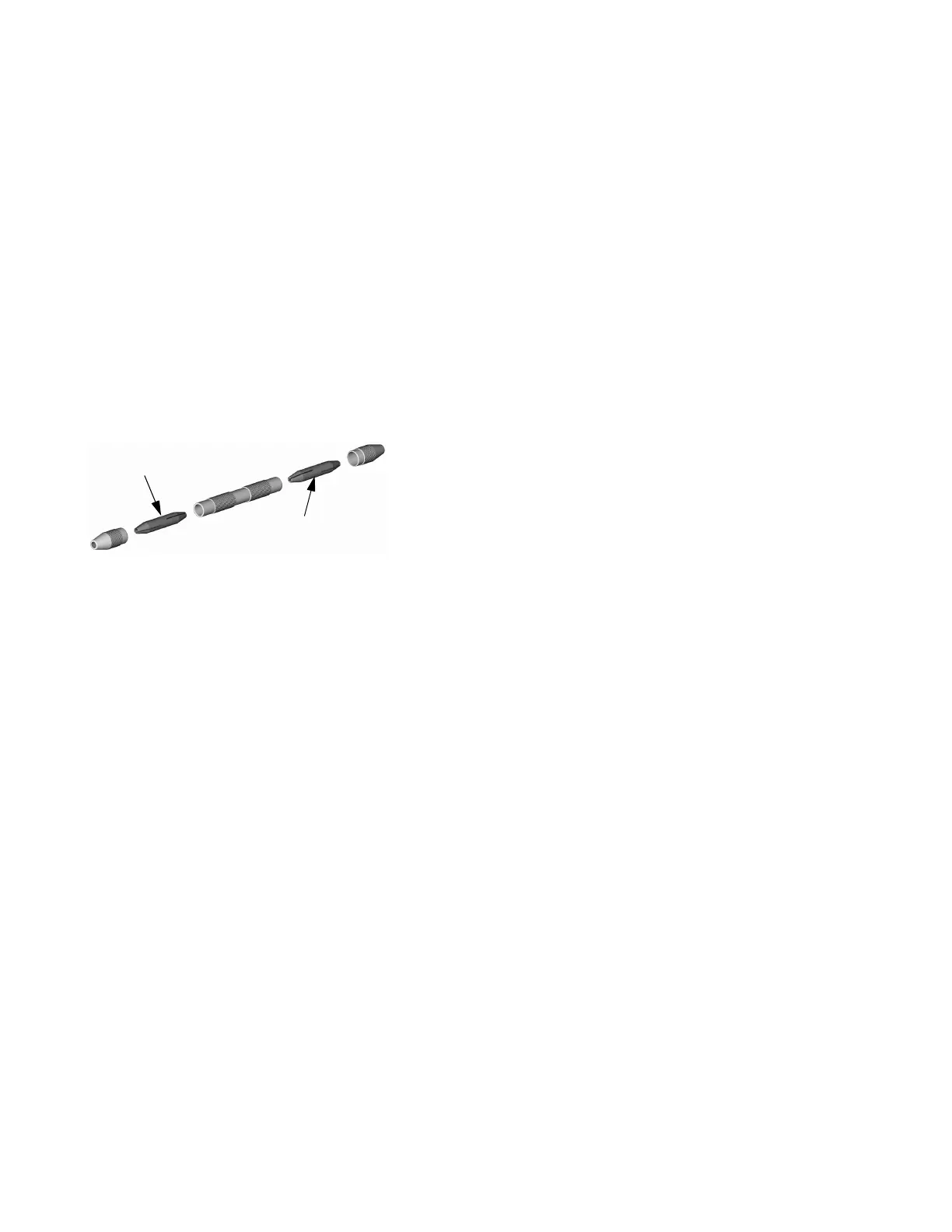

Reversible
Reversible
4.
Clean Muffler
, page 21.
5.
Clean Fluid Manifold
, page 21.
6.
Clean Polycarballoy Mix Module
, page 22.
Follow
Shutdown
, page 16.
1.
Clean Purge Rod
, page 25.
2.
Clean
Check Valves
, page 38. Check o-rings and
screens.
3.
Check that safety lock threaded connection is tight,
page 41.
