Graco A Series Instructions - Parts

Adjust Purge Rod
14 309856A

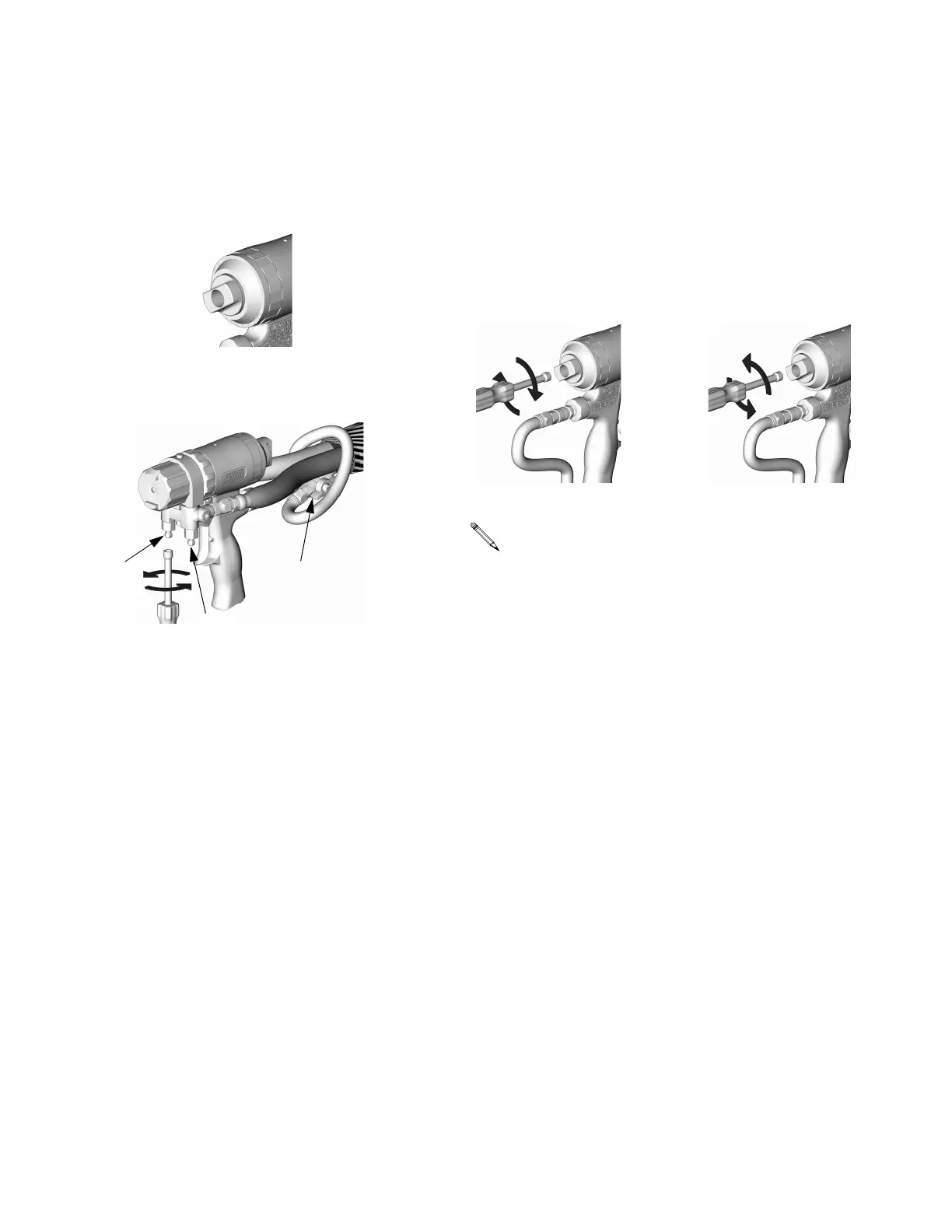

Adjust Purge Rod
1.
Engage safety lock, page 11.
2.
Close fluid valves A and B.
TI3850a
TI3837a
U
A
B
3.
Connect air supply and open air valve (U).
4.
Adjust purge rod with nut driver clockwise until it
just touches CeramTip, then back off 1/8-1/4 turn.
Be sure to back out purge rod 1-2 turns before
changing CeramTips or Polycarballoy Mix
Modules. Readjust purge rod after replacing
CeramTips or Polycarballoy Mix Modules.
1/8-1/4 Turn
TI3829a TI3828a
