Graco A Series Instructions - Parts

Repair
36 309856A
Polycarballoy Mix Module
See page 44 for available Polycarballoy Mix Module
sizes.
1.
Follow
Pressure Relief Procedure
, page 17.
2.
Flush Gun
, page 21.
3.

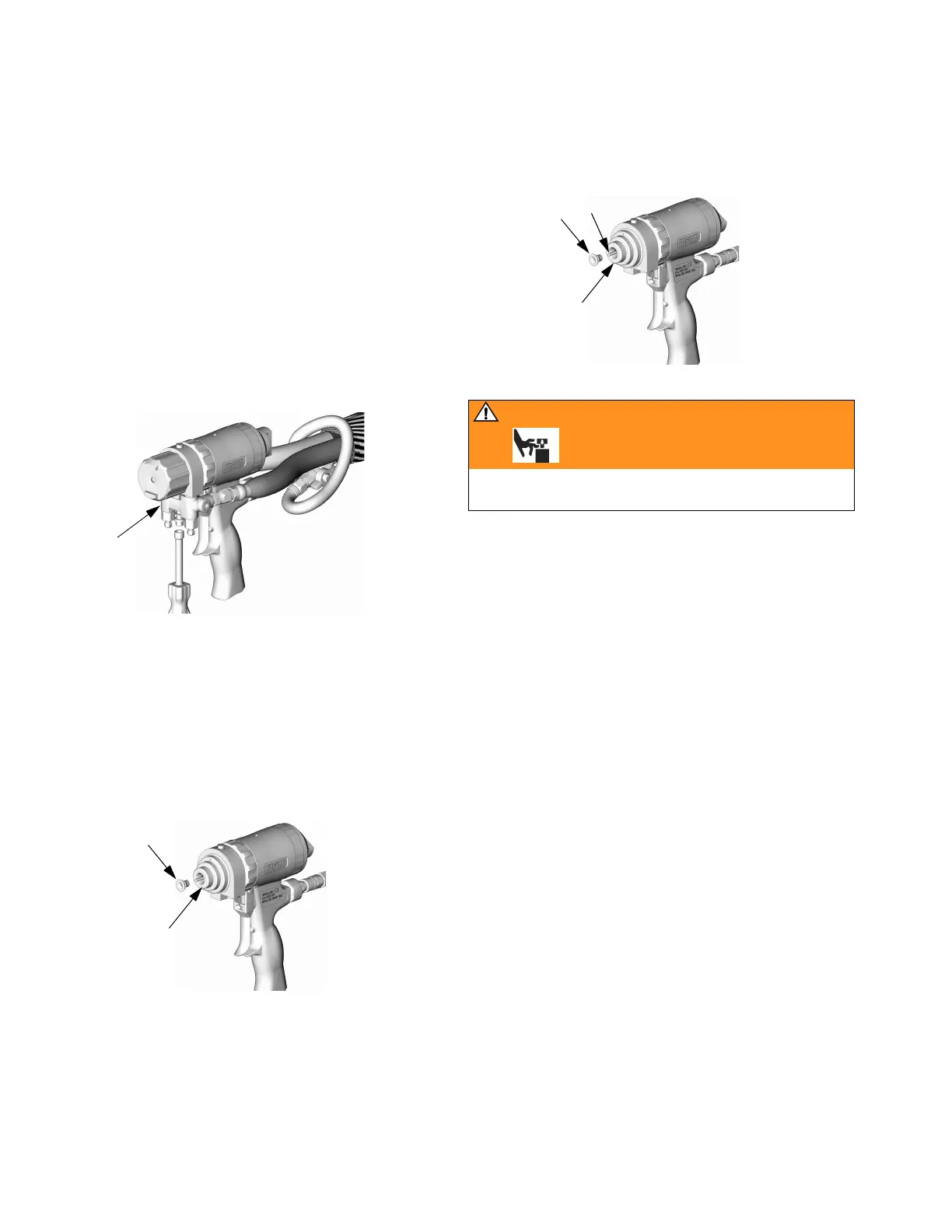

Remove fluid manifold (G). Leave air connected.
4.
Disassemble Front End
, page 33.
5.
Disengage safety lock, page 11. Trigger and detrig-
ger gun once to release Polycarballoy Mix Module
(39) from fluid housing (7). Remove Polycarballoy
Mix Module. Engage safety lock.
TI3852a
G
39
7
TI3845a
6.
Push new Polycarballoy Mix Module (39) onto rod
(31) as far as possible.
WARNING
Keep fingers away from mix module (39) when doing
step 7.
7.
Trigger gun and hold, to pull Polycarballoy Mix
Module tight into fluid housing (7).
8.
Reassemble Front End
, page 34.
9.
Adjust Purge Rod
, page 14.
10.
Attach fluid manifold. Return gun to service.
39
7
TI3845a
31
