Graco A Series Instructions - Parts

Setup
12 309856A

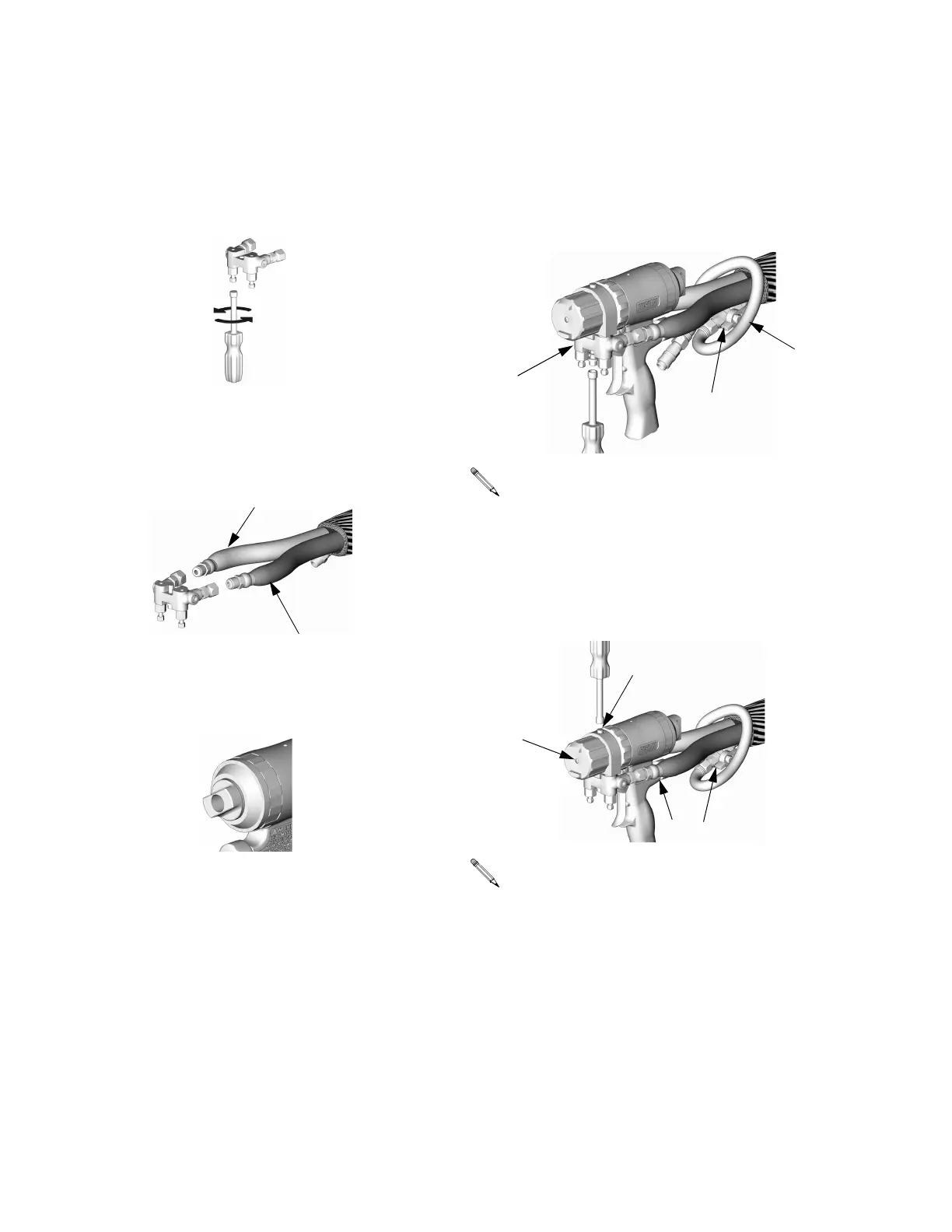

Setup
1.
Close fluid valves A and B.
2.
Connect A (ISO) and B (RESIN) fluid hoses to fluid
manifold.
3.
Engage safety lock, page 11.
TI2411A
A (ISO)
B (RESIN)
TI2417A
TI3850a
4.
Connect gun air whip hose (T) and air valve (U) to
main air hose. Attach fluid manifold (G) to gun.
To change position of fluid manifold or use
optional fluid inlets, see pages 18 and 19.
5.
Connect air line to quick coupler (D). Turn on air.
Open air valve (U). Air should flow from air cap
around CeramTip (M). Adjust air flow with cleanoff
air valve (K).
To use optional air inlet, see page 19.
6.
Adjust purge rod, page 14.
7.
Turn on proportioner.
G
U
T
TI3830a
D
K
M
U
TI3839a
