Graco A Series Instructions - Parts

Parts
309856A 47

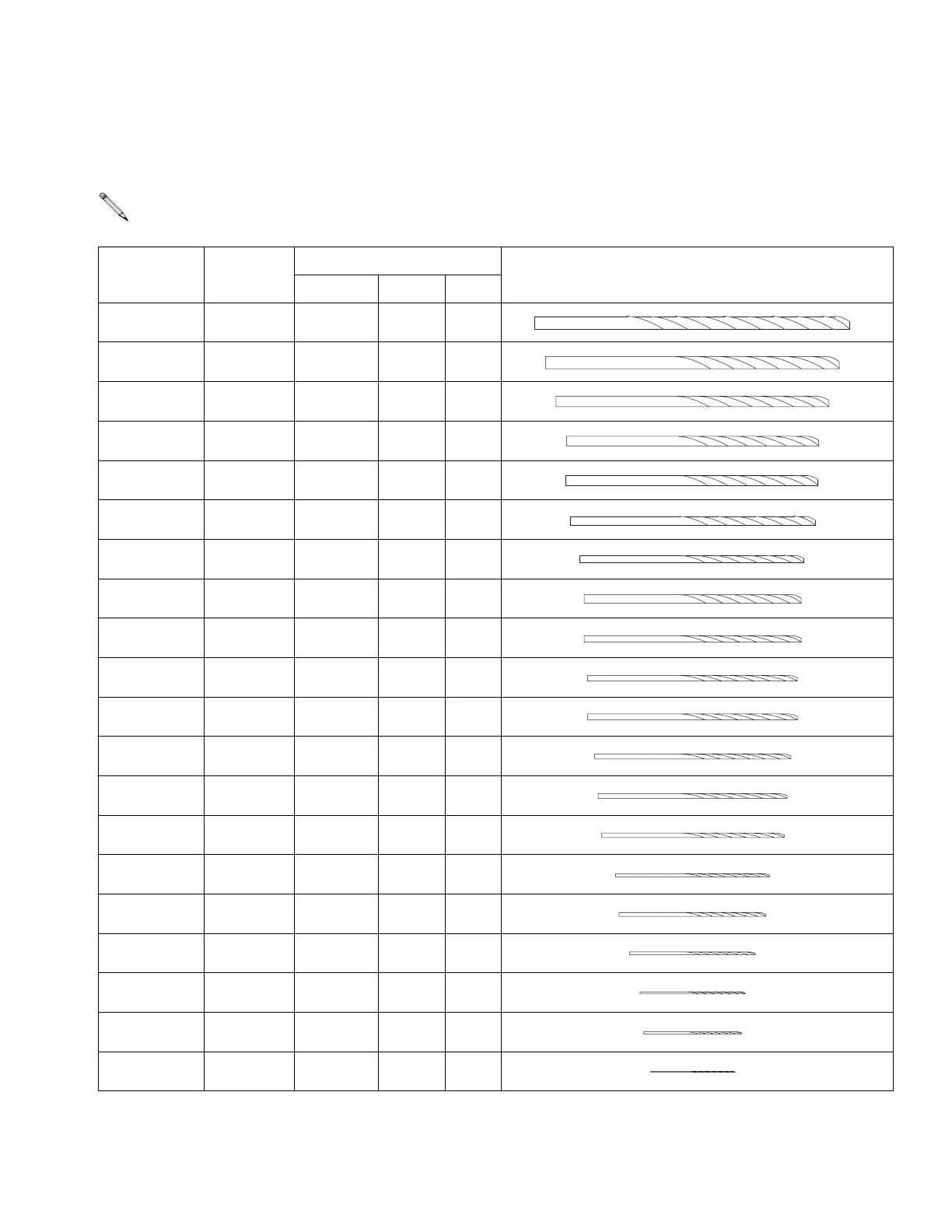

Drill Bit Kits
For cleaning gun ports and orifices. Illustrations are actual size, for comparison.
Not all sizes are used with your gun.
Kit Part No. Qty in Kit
Drill Bit Size
Illustration
nominal in. mm
246623 3 #32 0.116 2.90
246810 3 7/64 0.109 2.77
246813 3 #39 .099 2.51
246812 3 #43 .089 2.26
246624 3 3/32 .094 2.39
246625 3 #44 .086 2.18
246626 6 #50 .070 1.78
246811 3 2 mm .079 2.00
246627 6 #53 .060 1.52
246628 6 #55 .052 1.32
246809 6 #54 .055 1.40
246814 6 #56 .046 1.18
246629 6 #58 .042 1.07
246808 6 #60 .040 1.02
246630 6 #69 .029 0.74
246807 6 #67 .032 0.81
246815 6 #73 .024 0.61
246816 6 #77 .018 0.46
246631 6 #76 .020 0.51
246817 6 #81 .013 0.33
