Component Identification
10 3A9286B
Component Identification

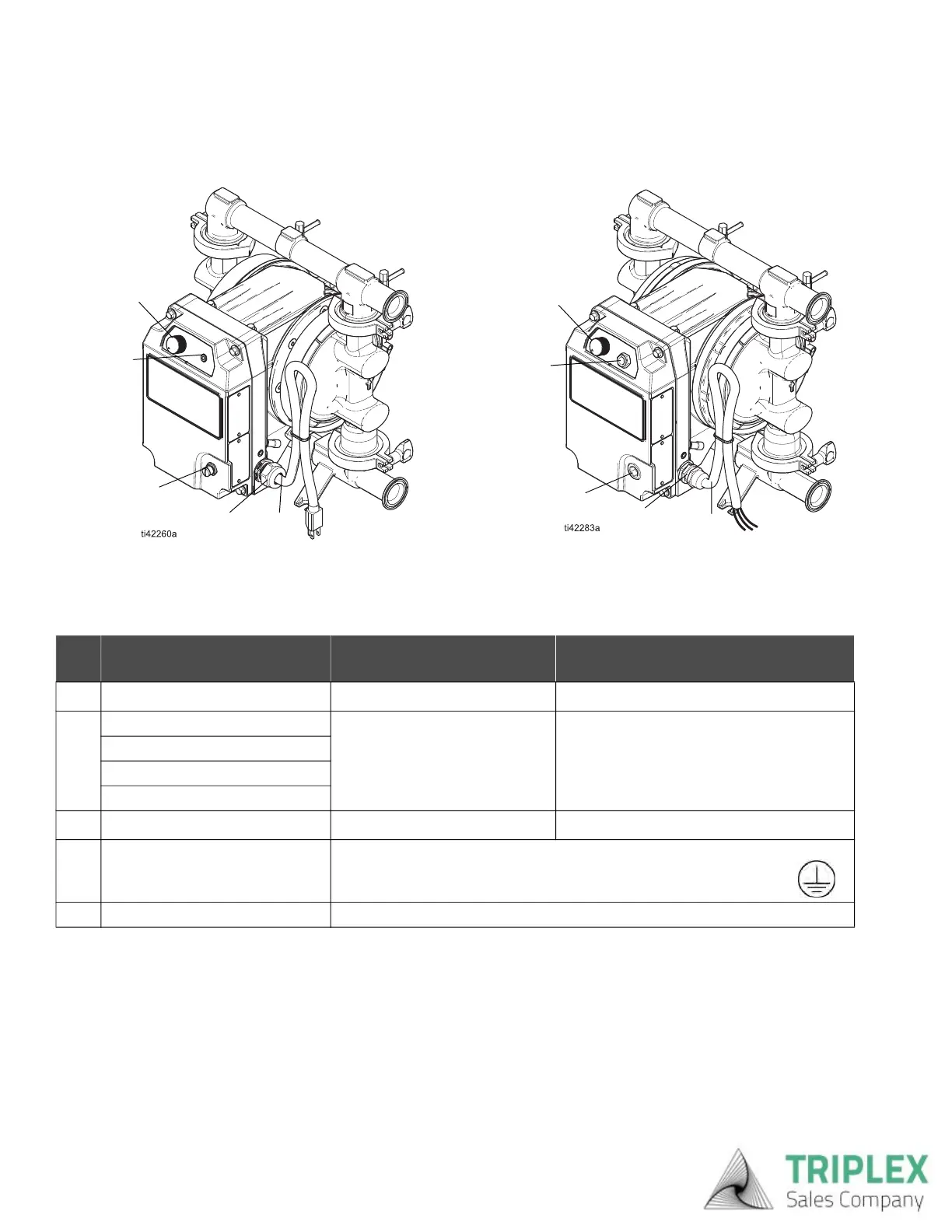

FIG. 1: Ordinary Locations Model (h30 (QHC) model
shown)
Ordinary Locations models include a cord with a plug
and Input/Output (I/O) port.
FIG. 2: Explosive Atmospheres or Hazardous (Classified)
Locations Model (h30 (QHC) model shown)
Explosive Atmospheres or Hazardous (Classified)
Locations models include flying leads on the power
cable (for direct wiring to a power source).
BB
E
A
K
CC
K
CC
BB
A
E
Ref. Component Ordinary Locations Models
Explosive Atmospheres or Hazardous
(Classified) Locations Models
A Power Cord/Cable
15 ft (4.6 m) cord with plug*
15 ft (4.6 m) cable for hard-wiring
†
BB I/O Port/Cable
M12, 5-pin connector**
Cable (not supplied) for direct wiring to
user-provided controls
‡
On/Off Control, Digital Input
Error Status, Digital Output
Speed Control, Analog Input
CC
LED Indicator
♦
Standard Reinforced
E External Ground Fastener,
Ground Symbol
The equipment is marked per IEC 417, Symbol 5019:
K Control Knob Turn clockwise (right) to increase fluid output
* See Required Power and Plugs, page 17.
** See I/O Pin Connection, page 20.
†
See Wire Power Cables, page 18, and Requirements for Cables and Conduits, page 19.
‡
I/O cable kits are available (purchase separately). See Related Manuals, page 2.
♦
See LED Indicator, page 24.
