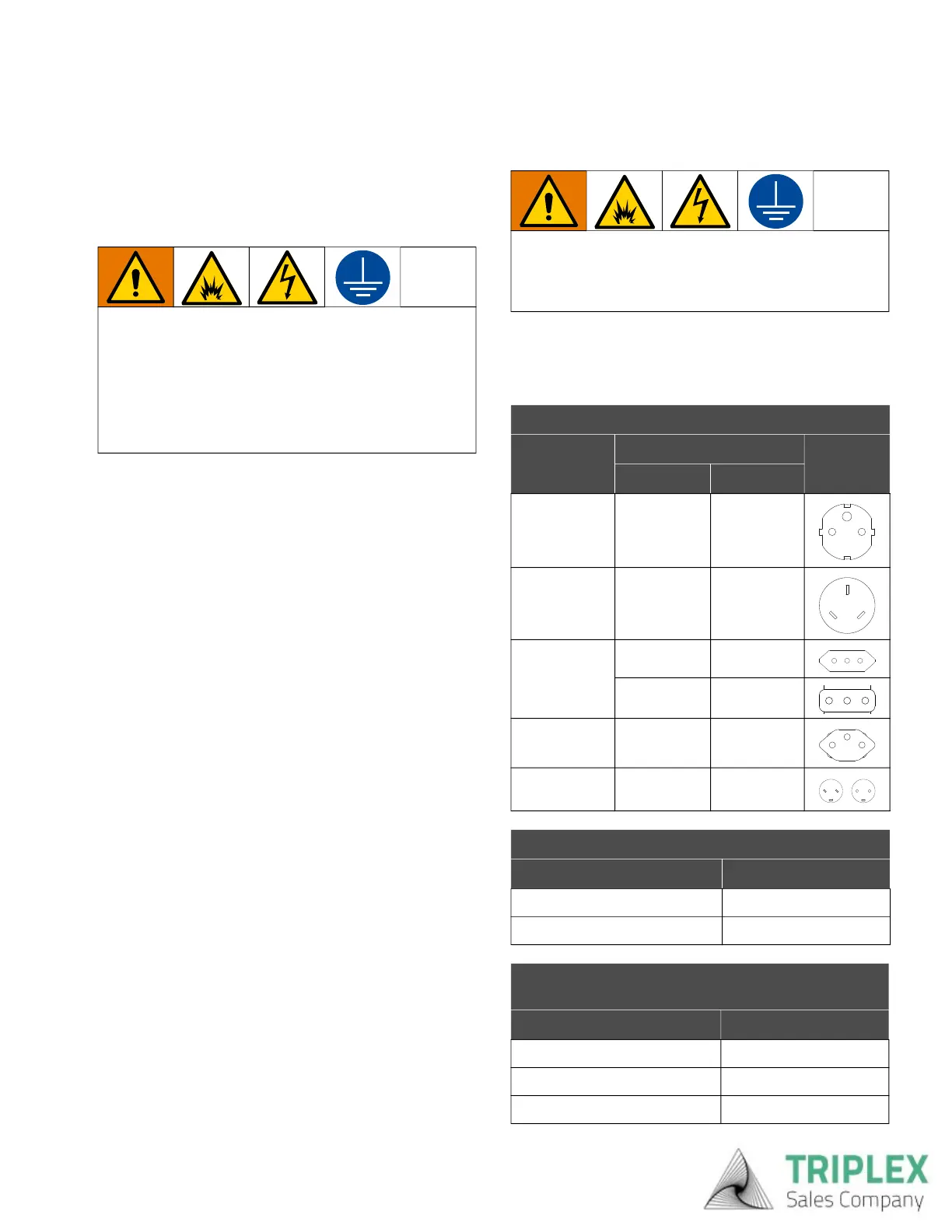

Electrical Connections and Wiring
3A9286B 19
Requirements for Cables and
Conduits
For models in Explosive Atmospheres or Hazardous
(Classified) Locations only.
Requirements for Explosion Proof
Equipment
Use appropriate conduits, connectors, and cable
glands rated for Class I, Division I, Group D. Follow all
national, state, and local electric codes and regulations.
Cable rating requirement: 158°F (70°C) minimum (all
cables)
Cable gland rating requirement: 158°F (70°C)
minimum (all glands)
Requirements for Flame Proof Equipment
Use appropriate conduits, connectors, and cable
glands rated for Ex II 2 G. Follow all national, state, and
local electric codes and regulations.
Cable rating requirement: 158°F (70°C) minimum (all
cables)
Cable gland rating requirement: 158°F (70°C)
minimum (all glands)
Adapters for Plugs and Cables
Use adapters as needed. Follow local codes and
regulations.
Adapters are available (purchase separately).
Do not modify or repair explosion proof joints.
Modifying explosion proof joints may produce an
explosion hazard.
To avoid injury from fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
To avoid injury from fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
Plug Adapters
Region
Part
Plug
Adapter
C14 Plugs C20 Plugs
Europe 242001 15G958
Australia,
China
242005 17A242
Italy
242002
– – –
– – –
15G959
Switzerland 242004 15G961
Denmark 242003
– – –
Plug Retainer Clips
Plug Part
C14 Plugs 195551
C20 Plugs 121249
I/O Port Flying Lead Cable Adapters (for models in
Ordinary Locations only)
Cable Length (meters) Part
2 123846
15 17D160
30 17B590
