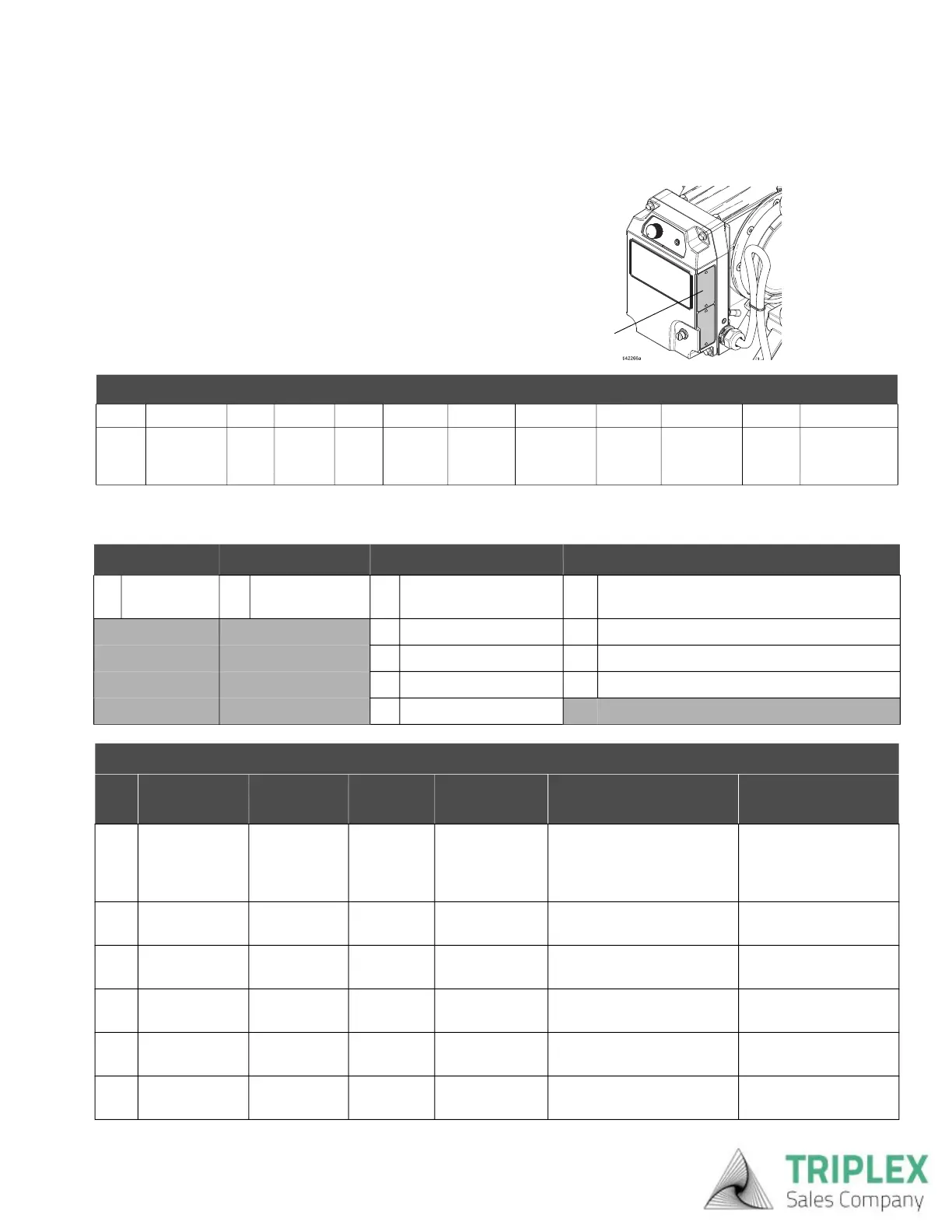

Configuration Matrix
3A9286B 7
Configuration Matrix
Record the model part number and configuration
sequence found on your equipment identification plate
(ID) to assist you when ordering replacement parts.
Model Part Number:
_______________________________________________
Configuration Sequence:
_______________________________________________
NOTE: Some combinations are not possible. Check with your local distributor.
ID
Sample Configuration Sequence: QHC-FGFF1ACACBNBNA10021
Q H C FG FF1 AC AC BN BN A1 00 21
Brand Application Model Wetted
Section
Material
Motor Seat
Material
Check
Material
Diaphragm
Material
Manifold
Seal
Material
Connection Options Material
Certifications
Brand Application Model Wetted Section Material
Q QUANTM H Hygienic (h) C 30 (1 in. port) FG Food Grade, Stainless Steel, 125 micro finish
(cast CF8M)
D 80 (1-1/2 in. port) HS Hygienic, Stainless Steel, 32 micro finish
E 120 (2 in. port) PH Pharmaceutical, Stainless Steel, 20 micro finish
F 120 (3 in. port) 3A 3-A Hygienic, Stainless Steel, 32 micro finish
G 120 (4 in. port)
Motor
Drive Coat
Input
Voltage
Phase Location
Cord/Cable
Termination
FF1 Aluminum Direct
Drive
Fluorinated
ethylene
propylene
(FEP) coat
200–240 V 3-Phase Hygienic, Ordinary Locations Cord with plug
FF2 Aluminum Direct
Drive
FEP coat 200–240 V Single-Phase Hygienic, Ordinary Locations Cord with plug
FF3 Aluminum Direct
Drive
FEP coat 200–240 V 3-Phase Hygienic, Hazardous
(Classified) Locations
Cable with flying leads
FF4 Aluminum Direct
Drive
FEP coat 200–240 V Single-Phase Hygienic, Explosive
Atmospheres
Cable with flying leads
FF5 Aluminum Direct
Drive
FEP coat 100–120 V Single-Phase Hygienic, Ordinary Locations Cord with plug
FF6 Aluminum Direct
Drive
FEP coat 100–120 V Single-Phase Hygienic, Hazardous
(Classified) Locations
Cable with flying leads
