Service
312780K 57
Servicing RoboMix Manifold
Manifold Service Kit 15V480 is available. Kit parts are
marked with an asterisk, for example (502*). For best
results, use all parts in the kit. Lubricate all o-rings
during assembly.
1. Follow Preparation, page 52.
2. Disconnect all fluid and air lines from the RoboMix
manifold (477).
3. Unscrew the flexible mixer (474) from the integrator
cap (511).
4. Remove the screws (403, 478) and the spacer (465,
on the B side). Remove the manifold assembly
(477) from the RoboMix fluid station. F
IG. 34.

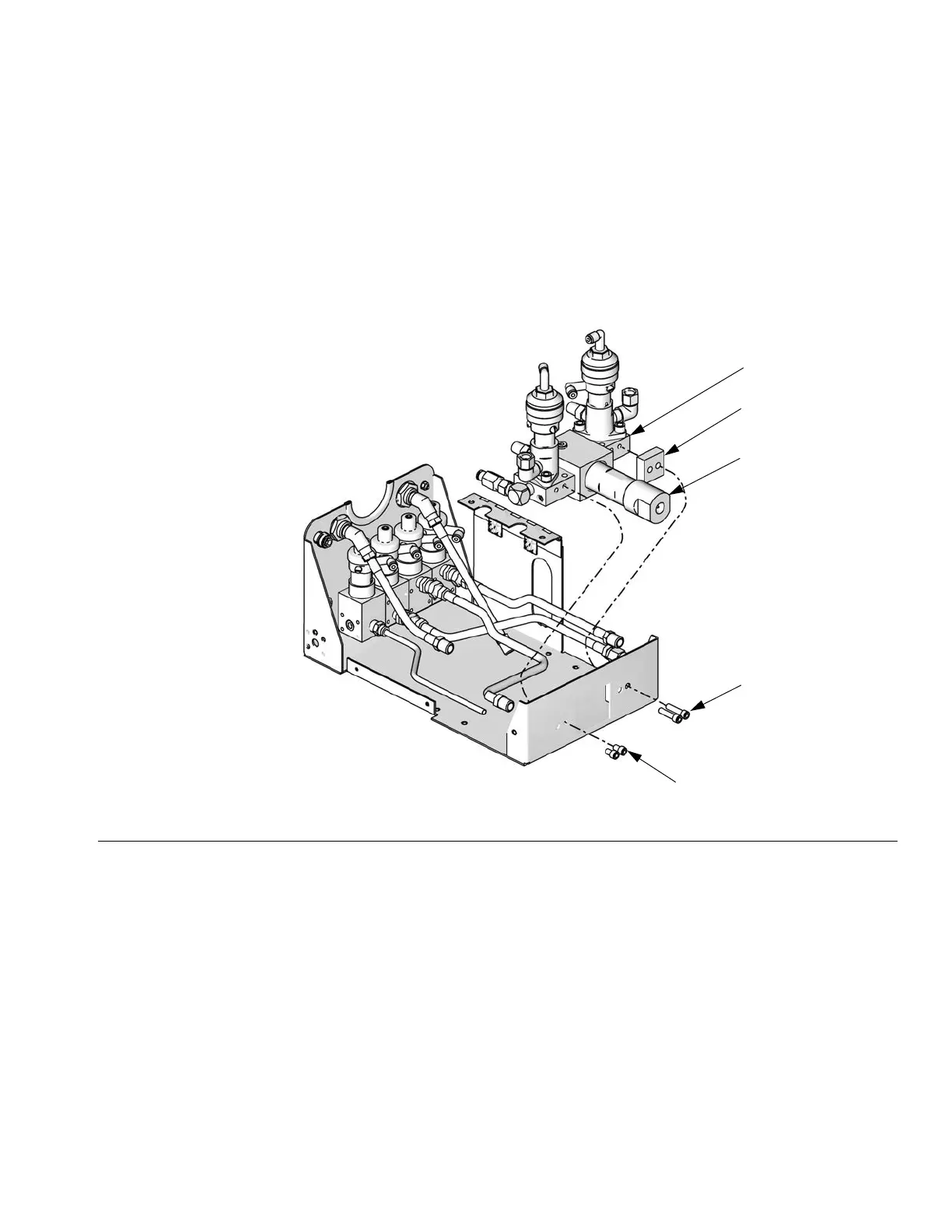

F
IG. 34: RoboMix Manifold
477
TI12651a
B Side
A Side
511
465
403
478
To Next Page
