Graco Reactor 3 Repair And Parts

Parts
60 3A8501A
25R471 Parts

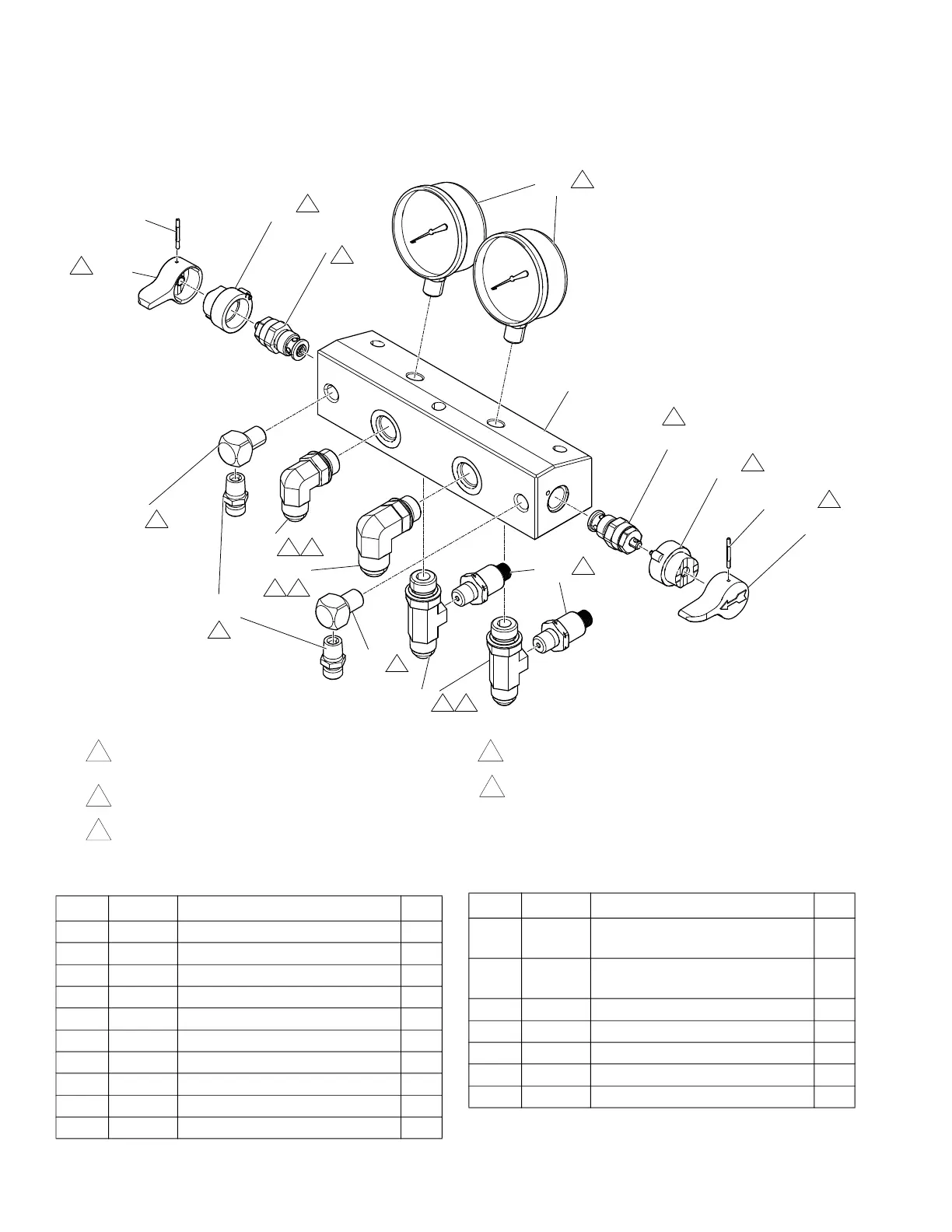

25R471 Parts List
✖ Not shown.
ti39927a
410
409
408
407
407
408
411411
412412
405
406
403
402
406
404
403
402
401
413
413











 
 
 
Apply sealant to threads and torque
to 250 +/- 10 in-lb (28 +/- 1.1 N•m).
Apply lubricant to o-rings before assembly.
Apply tape and sealant to all non-swiveling pipe threads.
1
5
4
3
7
Verify installation of o-ring before installing the fitting.
Apply lubricant to mating surfaces.
Ref. Part Description Qty.
401
25R458 HOUSING, outlet
1
402
239913 VALVE, drain
2
403 224807 BASE, valve
2
404
17X499 HANDLE, valve, drain, red
1
405
17X521 HANDLE, valve, drain, blue
1
406 111600 PIN, grooved
2
407 100840 FITTING, elbow, street
2
408
162453 FITTING, (1/4 npsm x 1/4 npt)
2
409
132443 FITTING, elbow, jic-8 x orb-8
1
410 132513 FITTING, elbow, jic-10 x orb-8
1
411
132173 FITTING, tee, orb-8, jic-8,
1/4-npt
2
412 18B074 TRANSDUCER, pressure,
5000 psi
2
413
102814 GAUGE, press, fluid
2
414✖ 070268 LUBRICANT, grease
1
415
✖ 070274 TAPE, tfe, sealant
1
416
✖ 070408 SEALANT, pipe, sst
1
417
✖ 070269 SEALANT, anaerobic, blue
1
Ref. Part Description Qty.
