DataTrak Controls and Indicators
311164M 19
DataTrak Controls and Indicators
Key for F IG . 5
T Runaway Limit, in cycles per minute (user settable;
00=OFF)
U Lower Displacement (user settable)
V Flow Rate Units (user settable to gpm [US], gpm
[Imperial], oz/min [US], oz/min [Imperial], l/min, or cc/min)
W LED (fault indicator when lit)
X Diagnostic Reference Card (see T
ABLE 3, page 22)
Y Display
PF Prime/Flush Key (Enables Prime/Flush mode. While in
Prime/Flush mode, runaway protection is disabled and the
batch totalizer (BT) will not count.)
RK Reset Key (Resets faults. Press and hold for 3 seconds to
clear the batch totalizer.)
CF Cycle/Flow Rate
BT Batch Totalizer
GT Grand Totalizer
RT Runaway Toggle (enable/disable)
UT E1 Error Option (enable/disable)
DT E2 Error Option (enable/disable)
ST E5 Error Option (enable/disable)
NOTE: DataTrak is included with certain mod-
els. See Models, page 4, for a list of models fea-
turing DataTrak.
/min,

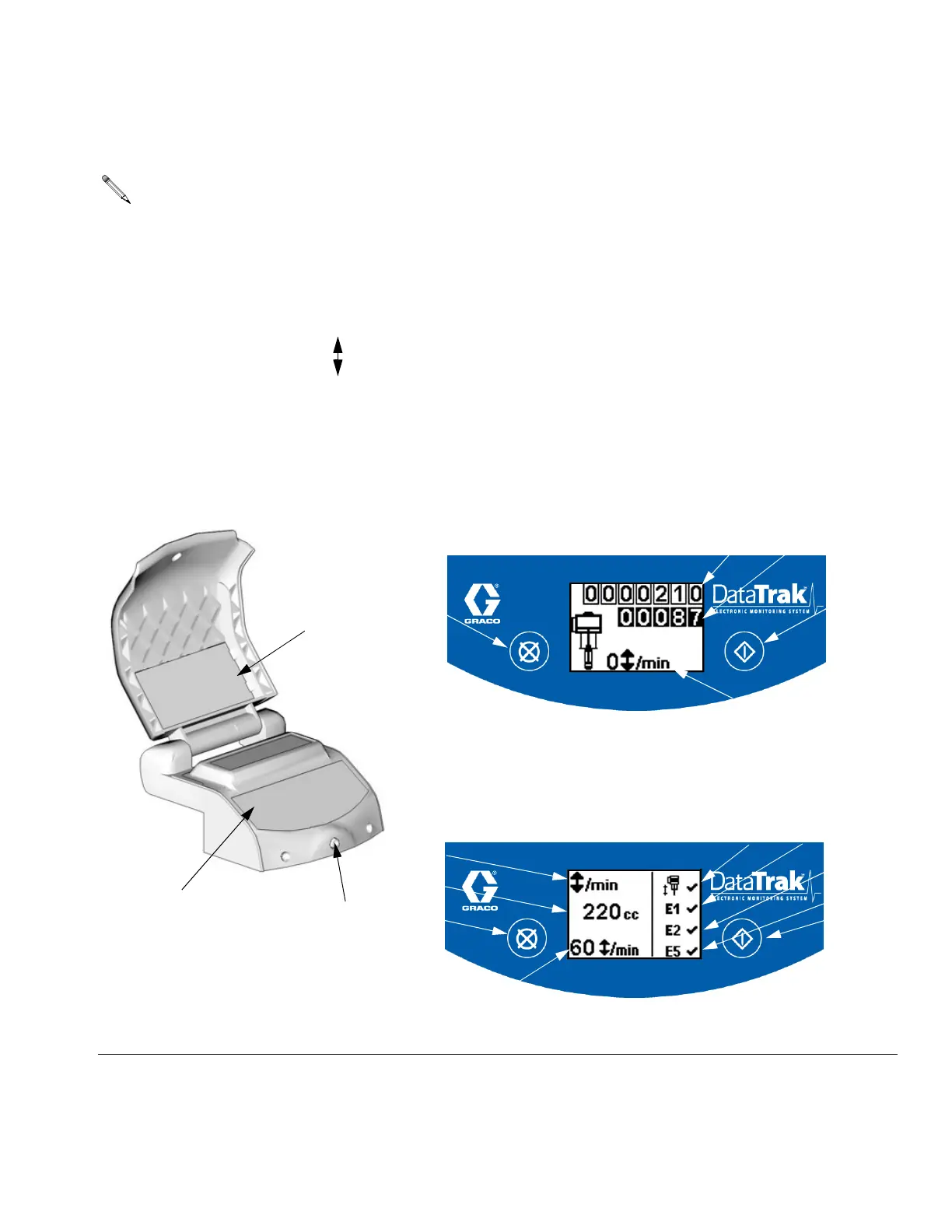

F IG . 5. DataTrak Controls and Indicators
X
W
Y; See Details at right.
CF
BT
GT
V
RT
T
PF
RK
U
UT
DT
ST
Run Mode
Setup Mode
TI8215a
TI8622b
TI8623b
RK
PF
