Xtreme Lower Removal
24 311164M
Xtreme Lower Removal
Required Tools
• Set of adjustable wrenches
• Torque wrench
• Rubber mallet
• Thread lubricant
• Anti-seize lubricant 222955
• Loctite
®
2760
™
or equivalent

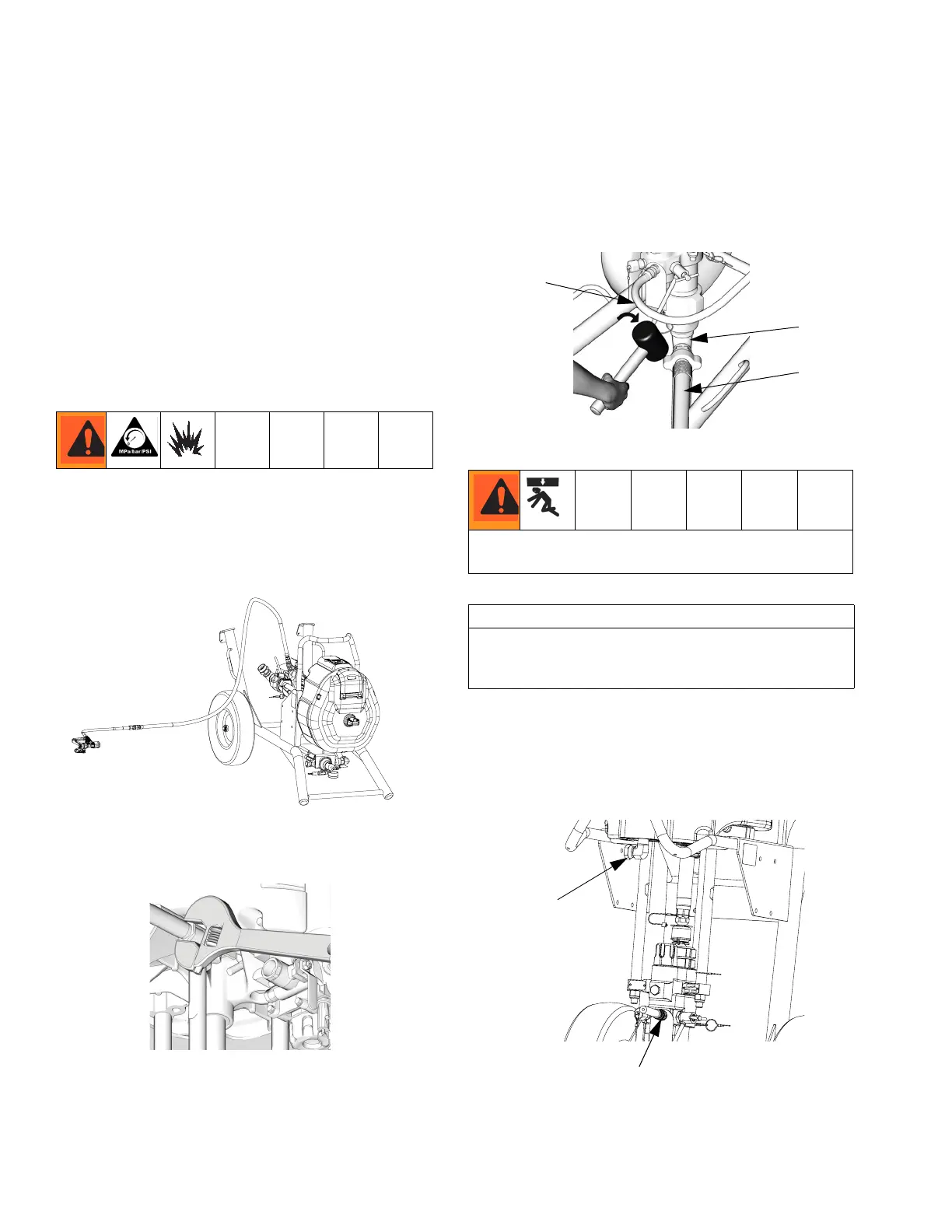

Disconnect and Reconnect
Lower
1. Flush pump; see Prime/Flush, page 14. Stop pump
at bottom of its stroke. Follow Pressure Relief Pro-
cedure, page 13.
2. Tip cart back.
3. Disconnect air hose.
4. Disconnect fluid hose (103). Disconnect suction
hose (4). Hold fluid outlet fitting (6) with a wrench to
keep it from loosening while you disconnect suction
hose.
5. Note the relative position of lower’s fluid outlet (P) to
inlet (W) of motor for easier reassembly alignment. If
motor does not require service, leave it attached to
its mounting.
r_x25dh1_x45hd1_311164_24f
TI8415a
Do not lift the pump by the lift ring when the total weight
exceeds 250 kg (550 lb).
CAUTION
Use caution when disconnecting lower; they can
weigh up to 25 kg (55 lbs). Take appropriate precau-
tions.
TI8262a
6
4
103
TI8414a
W
P
To Next Page
