Xtreme Lower Removal
311164M 25

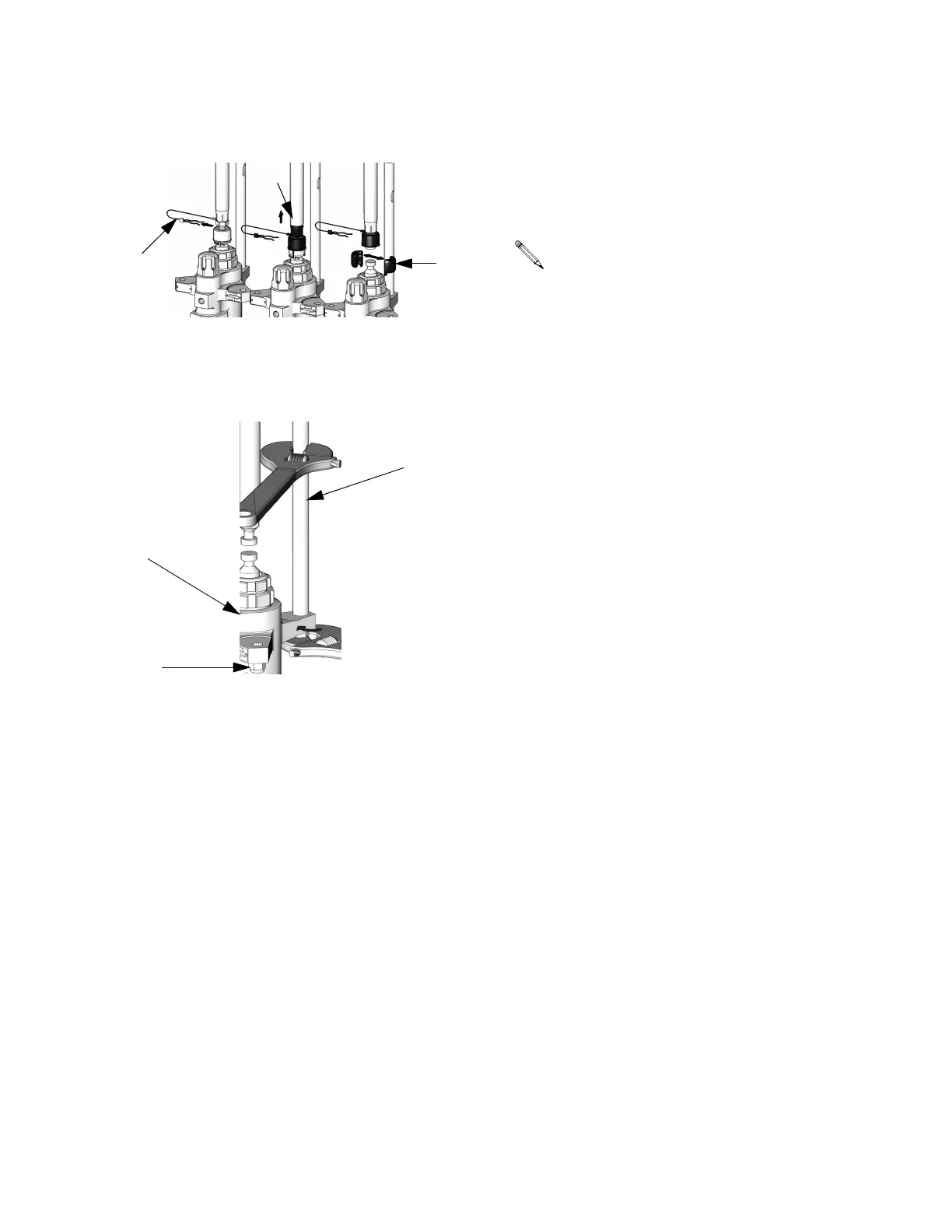

6. Remove clip (309), and slide coupling cover (307)
up to remove coupling (305).
7. Use a wrench to hold tie rod flats to keep rods (306)
from turning. Unscrew nuts (308), and remove lower
(302).
8. Refer to the Xtreme Lower manual (311762) to ser-
vice lower. To service motor, refer to separate motor
manual.
9. Reconnect lower by following disconnect steps in
reverse order.
TI8264a
305
307
309
TI8301a
306
308
302
NOTE: Torque nuts (308) to 50-60 ft-lb (68-81
N•m).
