Graco xtreme User Manual

Models
4 311164M
Models
Sprayer Packages
Airless Sprayers, Wall Mount Packages, and Hopper Packages

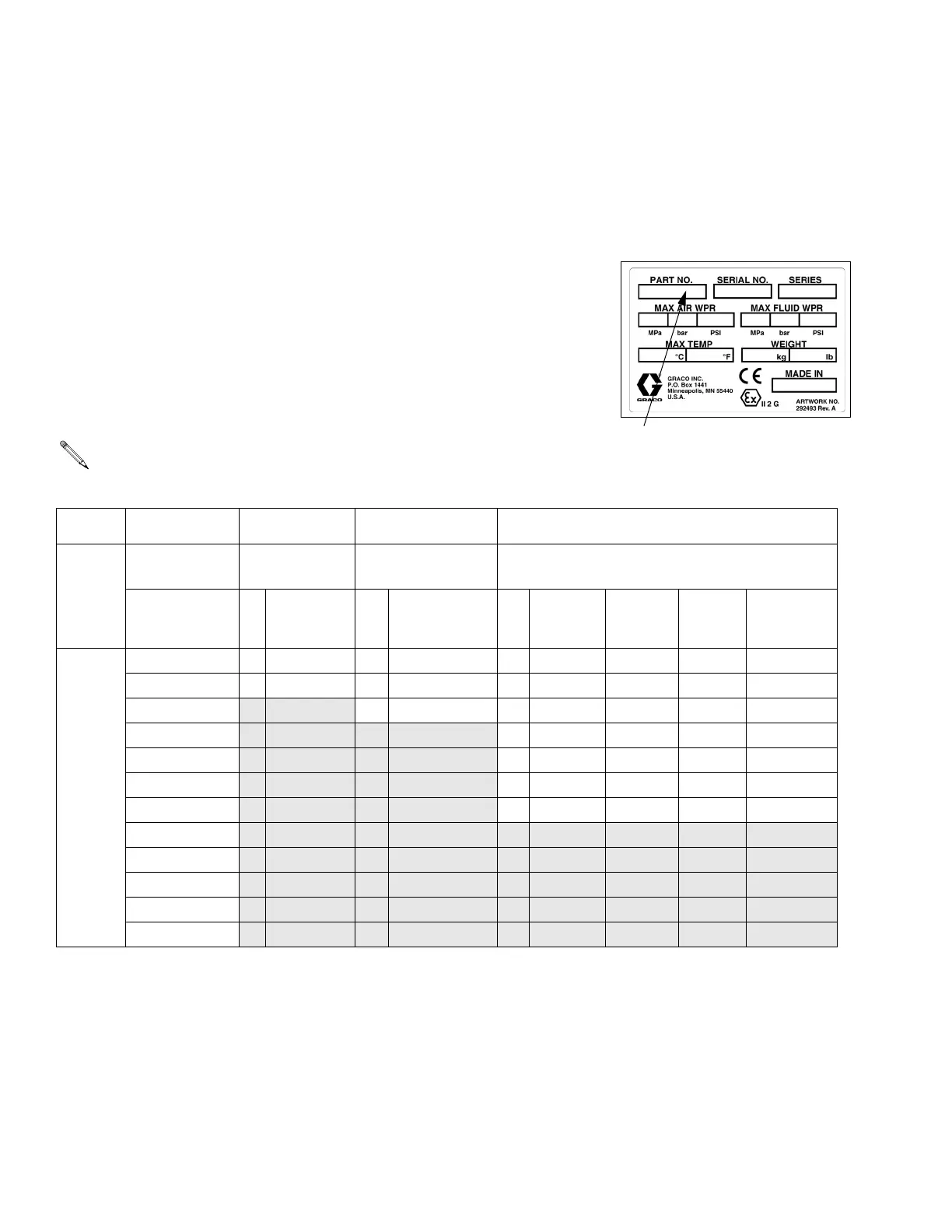

Check your sprayer, wall mount, or hopper package’s identification plate (ID) for
the 6-digit part number of your package. Use the following matrix to define the
construction of your package, based on the six digits. For example, Sprayer
Part Number X60D H 1 represents the Xtreme brand (X), pressure ratio
(60 :1), de-icing motor (D), heavy duty cart (H), and complete package (gun and
hose included) with DataTrak
™
(1). To order replacement parts, see Airless
Xtreme Sprayer Parts section starting on page 28. The digits in the matrix do
not correspond to the reference numbers in the Parts drawings and lists.
NOTE: All models have a maximum air input pressure of 100 psi (.7
MPa, 7 bar). Models with a 90:1 pressure ratio have a maximum air
input
pressure of 80 psi (0.55 MPa, 5.5 bar).
ID
X60 D H 1
First
Digit
Second and
Third Digit Fourth Digit Fifth Digit Sixth Digit
Pressure Ratio
(xx:1)
Motor /
Exhaust Mount Option
Complete
Package DataTrak Hopper
Without
Integrated
Fluid Filter
X
(Xtreme
brand)
25
D De-Icing H Heavy Duty 1
✔✔
30
L Low Noise L Light Weight 2
✔
35
W Wall Mount 3
✔
40
4
45
5
✔ ✔ ✔
46
6
✔ ✔
50
7
✔ ✔
55
60
70
80
90
