Component Identification - Cart Mount
311164M 9
Component Identification - Cart Mount
A Air Inlet, 3/4 npt(f)
B Bleed Type Master Air Valve (required)
C Air Pressure Relief Valve
D Air Filter (hidden)
E Air Pressure Gauge
F Air Regulator Adjustment Knob
GDataTrak
™
location (see page 19; not present on all
models)
J Fluid Drain/Purge Valve (required)
K Fluid Filter
L Grounding Wire (required)
M Lower
N Suction Hose and Tube
P Fluid Outlet
R Optional Fluid Outlet, for second gun
S Packing Nut
T De-Ice Control

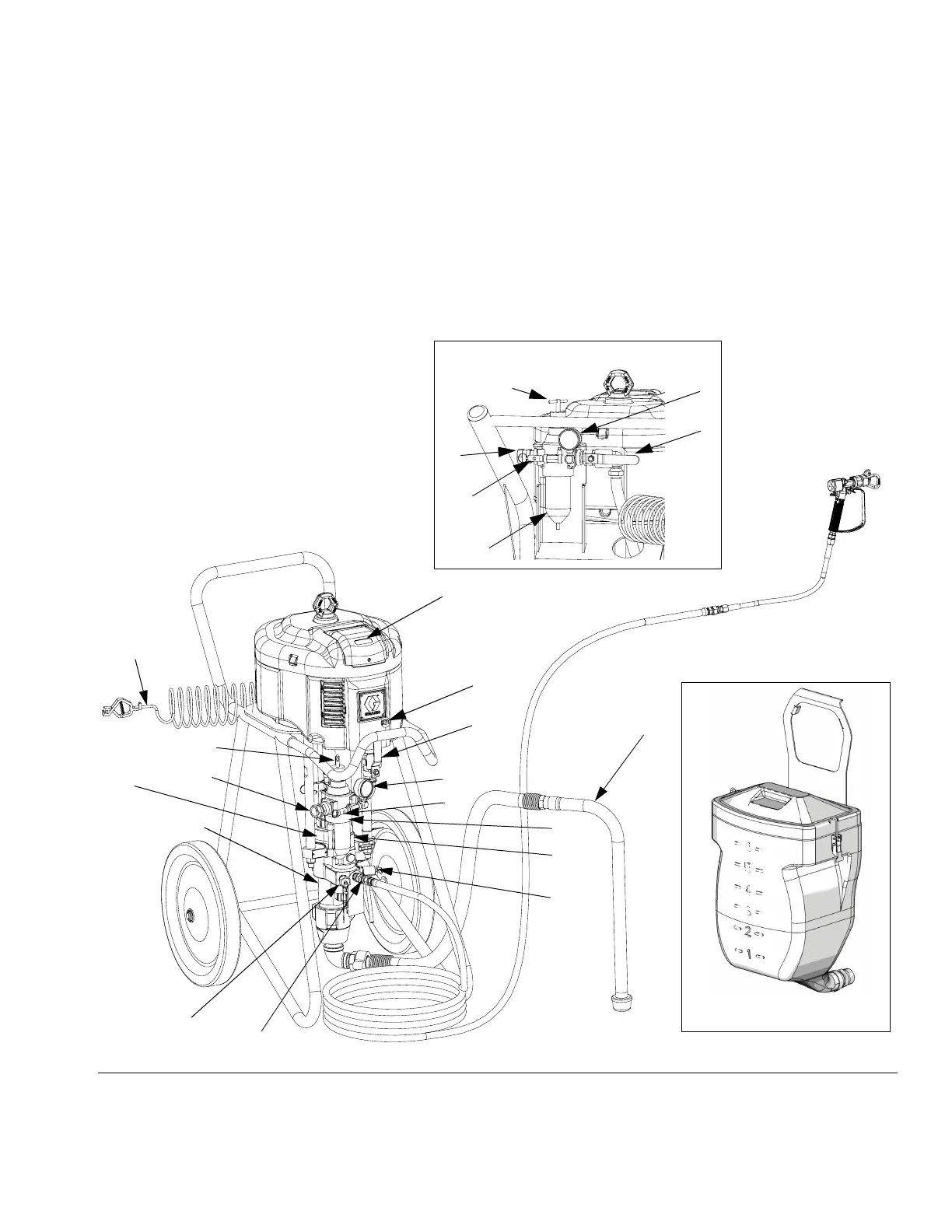

F IG . 1: Airless Sprayer
M
A
B
D
F
G
J
K
L
N
P
R
S
Hopper (288347) Option
T
TI8408a
E
C
Light Duty Cart
Heavy Duty Cart
F
C
A
D
E
B
