Dimensions
311164M 51

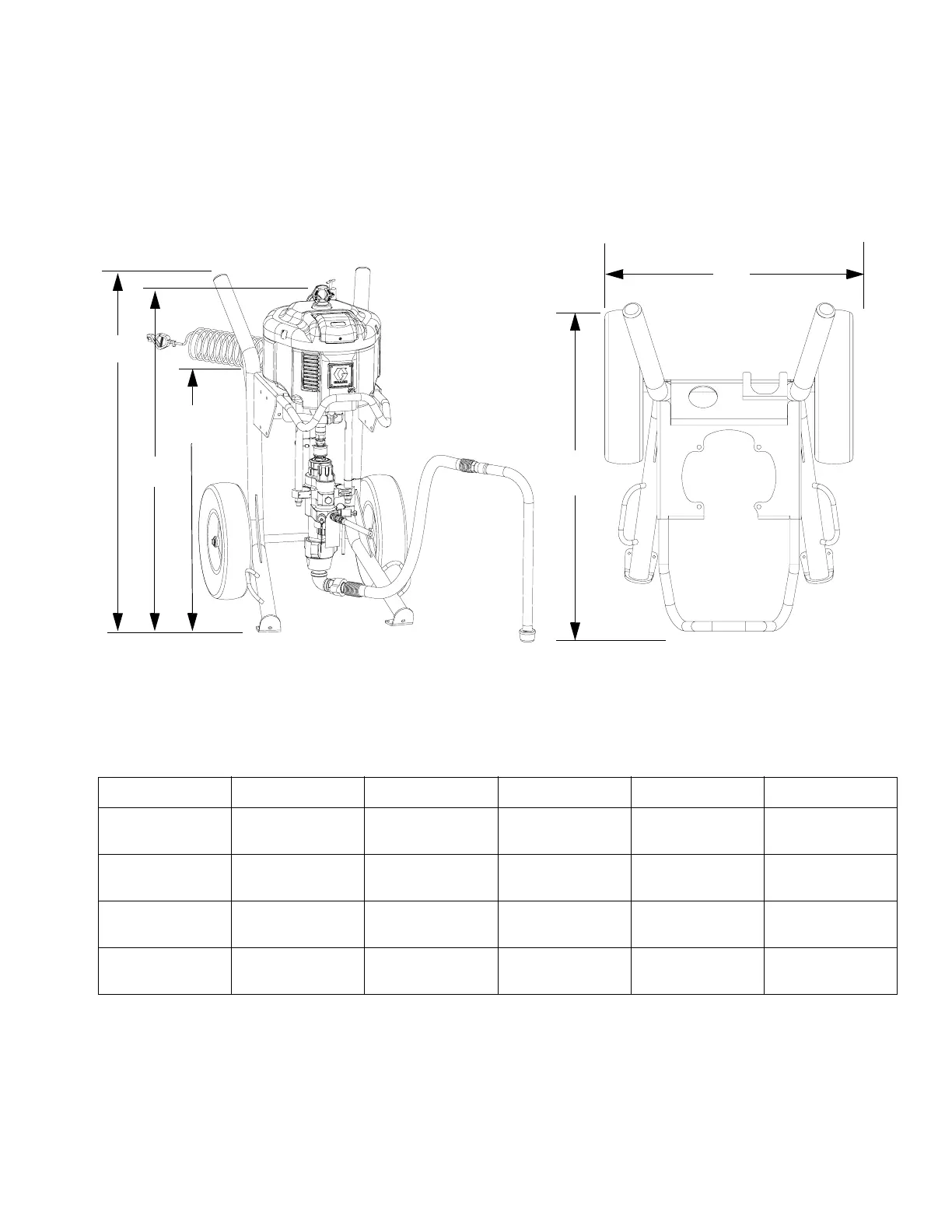

Dimensions
Sprayer (Cart Mounted) Packages
All Xtreme Sprayer (Cart Mounted) Packages
Model X60DH3 Shown
KEY:
HD = Heavy Duty Cart
LW = Light Weight Cart
Top View - Heavy Duty Cart Shown
B
C
D
E
r_x25dh1_x45dh1_311164_47f
A
r_x25dh1_x45dh1_311164_47f2
Mount A B C D E
HD
43.69 in.
(1109.73 mm)
46.0 in.
(1168.4 mm)
32.0 in.
(812.8 mm)
35.0 in.
(889 mm)
25.72 in.
(653.3 mm)
LW
44.86 in.
(1139.44 mm)
45.5 in.
(1115.7 mm)
31.3 in.
(795 mm)
34.0 in.
(863.6 mm)
27.09 in.
(688.1 mm)
HD with Hopper
43.69 in.
(1109.73 mm)
46.0 in.
(1168.4 mm)
32.0 in.
(812.8 mm)
45.0 in.
(1143 mm)
25.72 in.
(653.3 mm)
LW with Hopper
44.86 in.
(1139.44 mm)
45.5 in.
(1115.7 mm)
31.3 in.
(795 mm)
44.0 in.
(1117.6 mm)
27.09 in.
(688.1 mm)
