GWN7602 User Manual
Version 1.0.15.20
Wall Mount Installation
GWN7602 can be mounted on the wall. Please refer to the following steps for the appropriate installation.
Step1:
Use a measuring tape to measure the distance between the two wall mount slots on the back of the
GWN7602 access point and use a pencil to mark the mounting screw holes on the wall.
Step 2:
Drill the holes in the spots that you have marked and slide the anchors into the wall. Attach the GWN7602
access point to the wall via the wall mount slots.

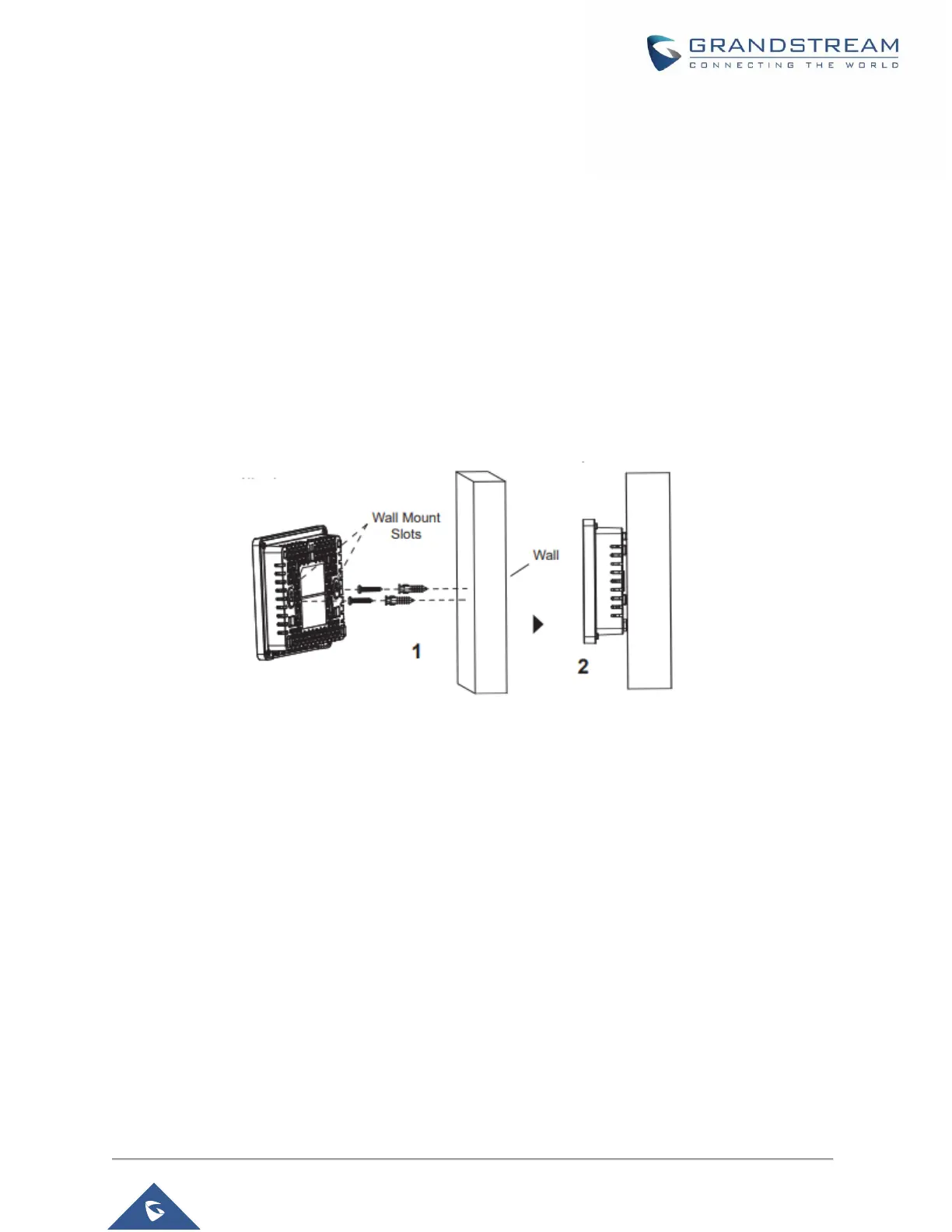

Figure 3: Wall Mount – Steps 1 & 2
