Using Voucher with GWN Captive Portal
In order to successfully use the voucher feature, users will need to create a captive portal in order to
request voucher authentication codes from users before allowing them access to internet. More details
about captive portal will be covered on next section but for voucher configuration please follow below steps.
1. Go under “Captive Portal → Captive portal” menu.
2. Press in order to add new captive portal policy.
3. Set the following parameters as shown on the screenshot for basic setup then save and apply.

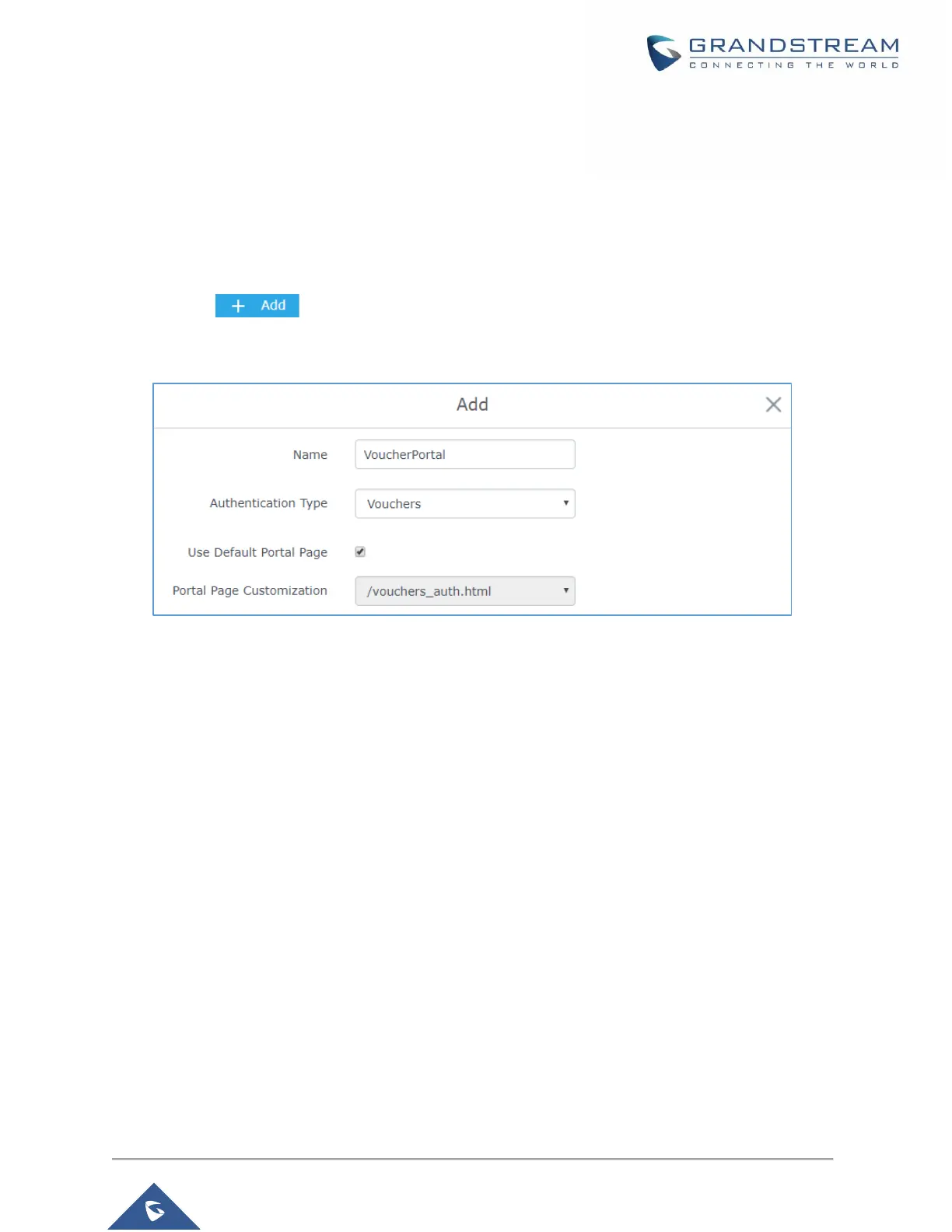

Figure 25: Captive Portal with Voucher authentication
Then go under your SSID configuration page and enable the generated captive portal under Wi-Fi settings
tab.
Mesh Network
In Mesh Network, wireless connection is established between multiple Aps, which is used to pass-through
data traffic rather than client association. Each AP will evaluate the performance of wireless channel based
on several factors and choose one or multiple appropriate APs to setup connection.
In a mesh network, access points are categorized to two types:
• CAP (Central Access Point): this is an access point that has an uplink connection to the wired
network.
• RE (Range Extender): This is an access point that participate on the mesh network topology and
has a wireless uplink connection to the central network.
In order to deploy mesh access points (RE), users/installers can follow below steps:
1. Make sure to have the master and CAP access points already deployed (sometimes the CAP
access points can be the master controller of the network).
