GWN7803(P) LED Indicators
Access & Configure
Login using the Console port
1. Use the console cable to connect the console port of switch and the serial port of PC.
2. Open the terminal emulation program of PC (e.g. SecureCRT), enter the default username and password to login. (The
default administrator username is “admin” and the default random password can be found at the sticker on the GWN7800
switch).
Login Remotely using SSH
1. Enter “cmd” in PC/Start.
2. Enter ssh <gwn7800_IP> in the cmd window.
3. Enter the default username and password to login. (The default administrator username is “admin” and the default
random password can be found at the sticker on the GWN7800 switch).
Configure using GWN.Cloud
Type https://www.gwn.cloud in the browser, and enter the account and password to login the cloud platform. If you don’t
have an account, please register first or ask the administrator to assign one for you.
Login using the Web UI
The GWN780x(P) embedded Web server responds to HTTPS GET/POST requests. Embedded HTML pages allow users to
configure the device through a Web browser such as Microsoft IE, Mozilla Firefox, or Google Chrome.

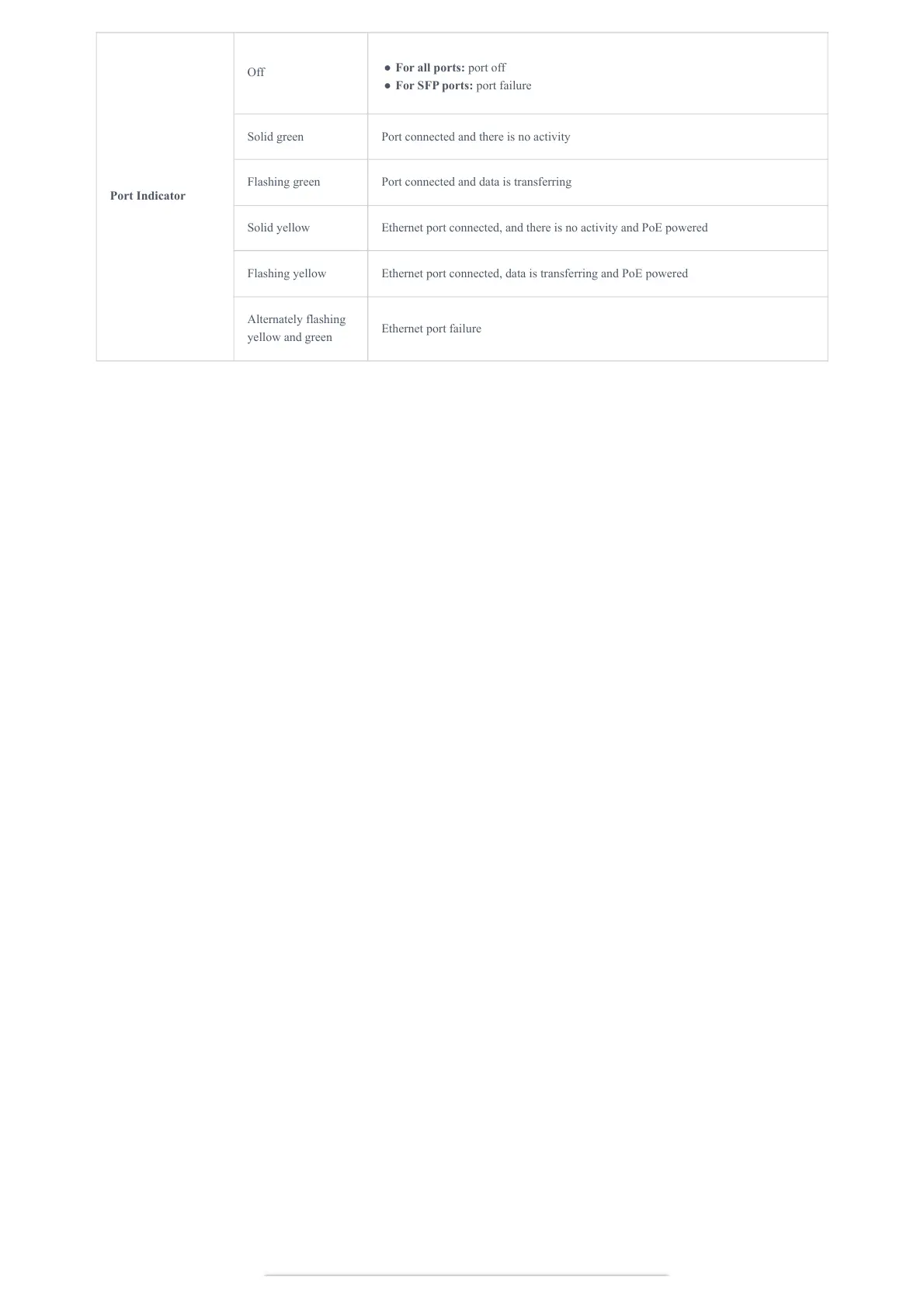

Port Indicator
Off
● For all ports: port off
● For SFP ports: port failure
Solid green Port connected and there is no activity
Flashing green Port connected and data is transferring
Solid yellow Ethernet port connected, and there is no activity and PoE powered
Flashing yellow Ethernet port connected, data is transferring and PoE powered
Alternately flashing
yellow and green
Ethernet port failure
Note:
If no DHCP server is available, the GWN7800 default IP address is 192.168.0.254.
Note:
The baud rate needs to be set to 115200.
