the MAC address table is established based on the automatic learning of the source MAC address in the data frame received
by the device. If the MAC address entry does not exist in the MAC address table, the device adds the new MAC address and
the interface and VLAN corresponding to the MAC address as a new entry into the MAC address table. GWN780x(P) Switch
will update the entry by resetting the aging time.
Aging Time:
Dynamic MAC address entries are not always valid . Each entry has a lifetime. The entries that cannot be updated after
reaching the lifetime will be deleted. This lifetime is called the Aging Time. If the record is updated before reaching the
lifetime, the aging time of the entry will be recalculated.

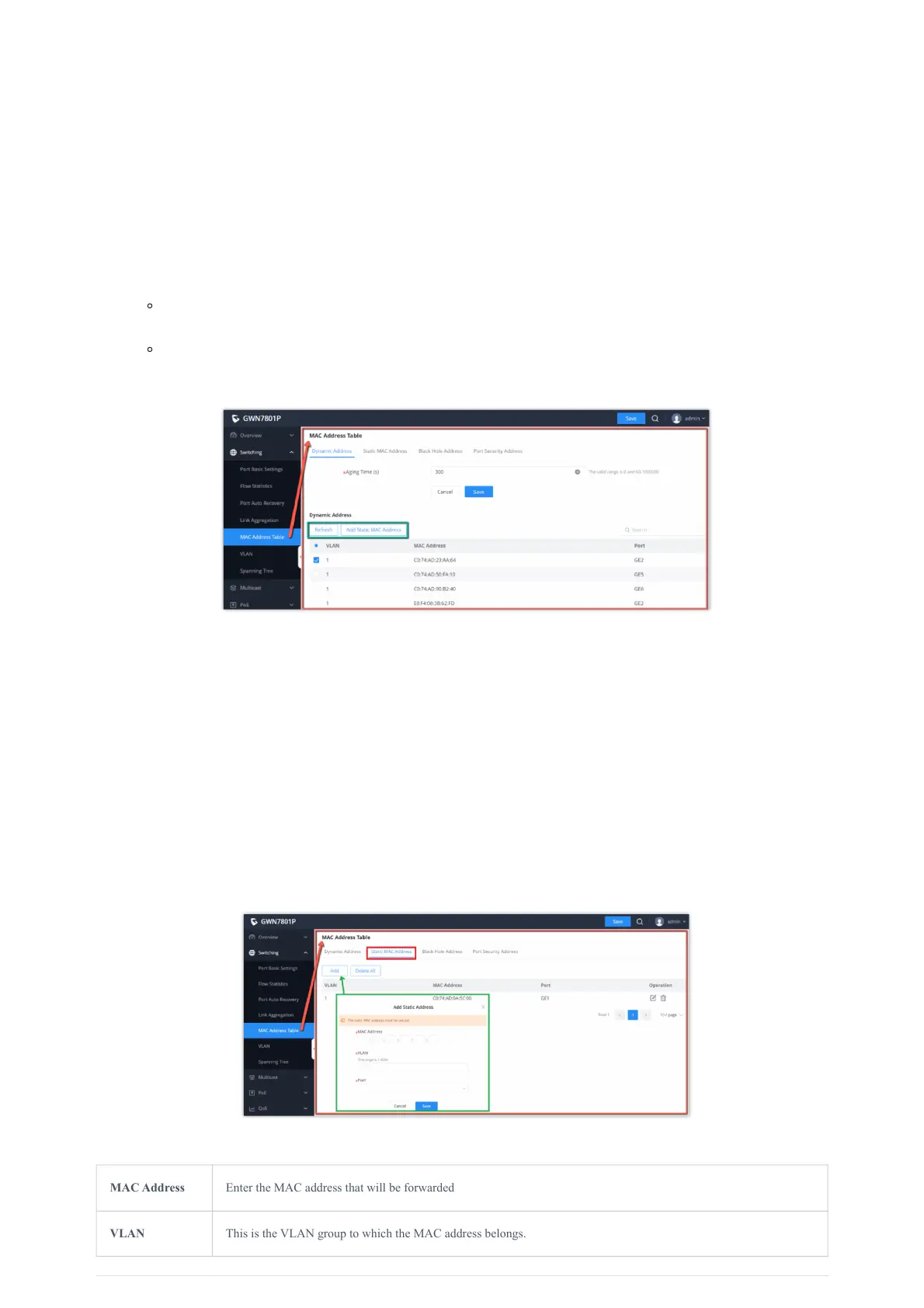

MAC Address Table – Dynamic Address
Click on “Refresh” button to update the table, or click on “Add Static MAC Address” button to add the entry to the static
MAC address.
Static MAC Address
This section allows user to manually assign MAC address into MAC table. The configuration
result will be displayed on the table listed on the lower side of this web page.
MAC Address Table – Static MAC Address
Notes:
The value range is 0 or 60-1 000000, the default is 300. If it is set to 0, it means that dynamic MAC address entries will not
be aged
Dynamic table entries are lost after system restart.
Note:
The static MAC address must be unicast.
