Link Aggregation Group
Link Aggregation Port
LAG Port Settings
In this page, the user can Enable the Link Aggregation Group and add Description as well as specifying the speed and the flow
control for LAG.

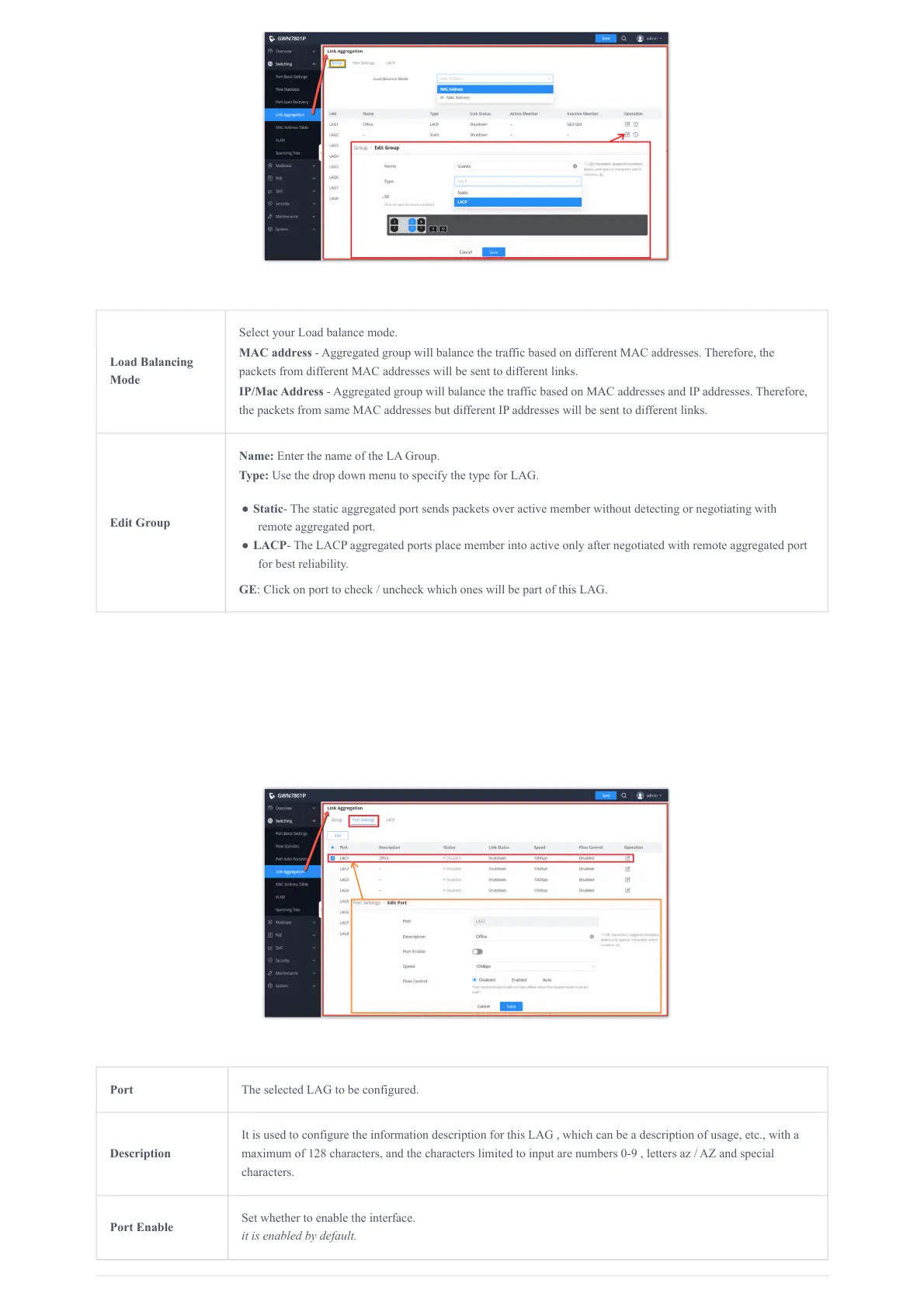

Link Aggregation – Port Settings
Load Balancing
Mode
Select your Load balance mode.
MAC address - Aggregated group will balance the traffic based on different MAC addresses. Therefore, the
packets from different MAC addresses will be sent to different links.
IP/Mac Address - Aggregated group will balance the traffic based on MAC addresses and IP addresses. Therefore,
the packets from same MAC addresses but different IP addresses will be sent to different links.
Edit Group
Name: Enter the name of the LA Group.
Type: Use the drop down menu to specify the type for LAG.
● Static- The static aggregated port sends packets over active member without detecting or negotiating with
remote aggregated port.
● LACP- The LACP aggregated ports place member into active only after negotiated with remote aggregated port
for best reliability.
GE: Click on port to check / uncheck which ones will be part of this LAG.
Port The selected LAG to be configured.
Description
It is used to configure the information description for this LAG , which can be a description of usage, etc., with a
maximum of 128 characters, and the characters limited to input are numbers 0-9 , letters az / AZ and special
characters.
Port Enable
Set whether to enable the interface.
it is enabled by default.
