Install on the Desktop

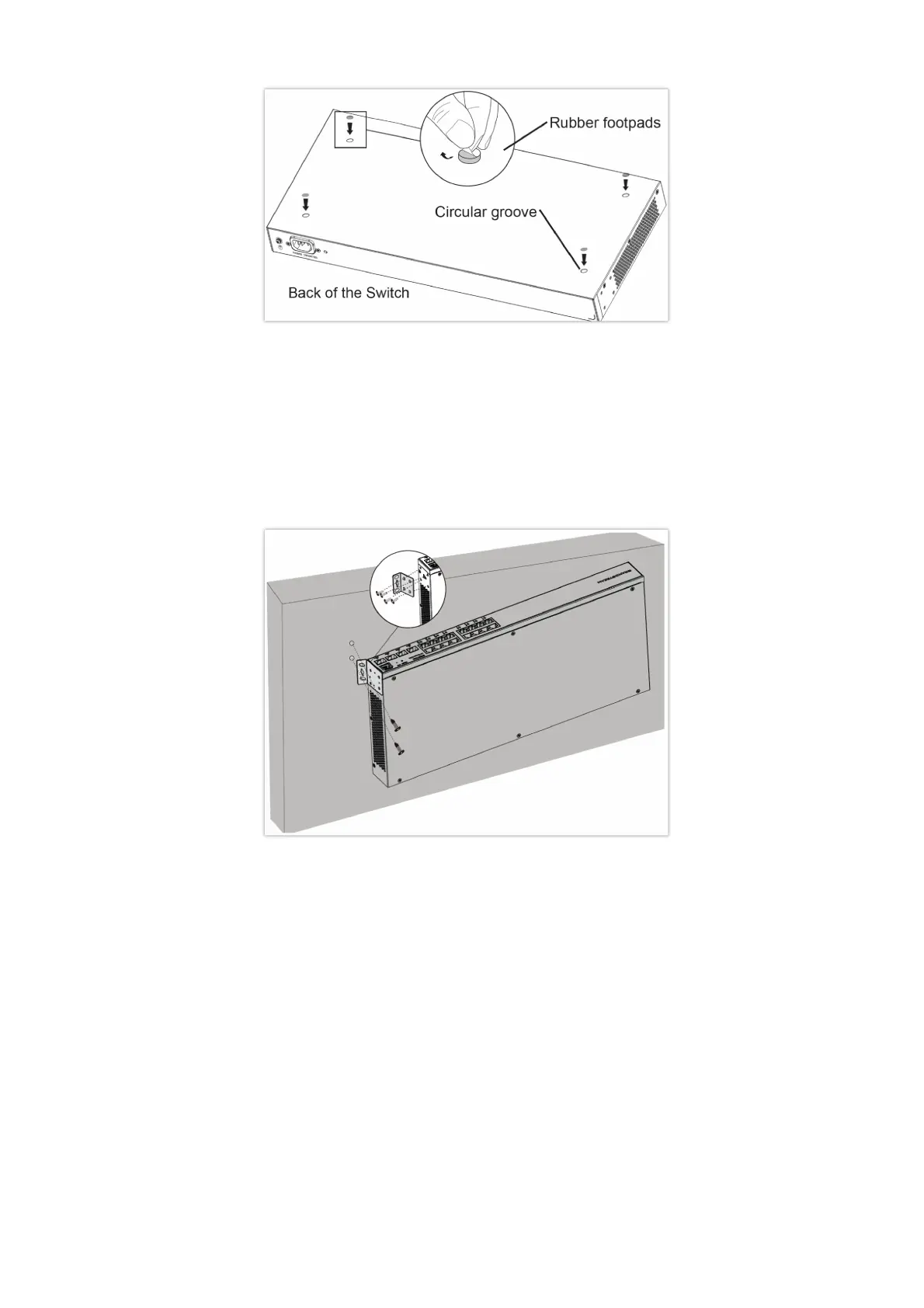

GWN780x(P) Desktop Installation
1. Place the bottom of switch on a sufficiently large and stable table.
2. Peel off the rubber protective paper of the four footpads one by one, and stick them in the corresponding circular
grooves at the four corners of the bottom of the case.
3. Flip the switch over and place it smoothly on the table.
Install on the Wall
GWN780x(P) Wall Installation
1. Use the matching screws (KM 3*6) to fix the two L-shaped rack-mounting kits (rotated 90°) on both sides of switch.
2. Stick the switch port up and horizontally on the selected wall, mark the position of the screw hole on the L-shaped rack-
mounting kits with a marker. Then, drill a hole at the marked position with an impact drill, and drill the expansion
screws(prepared by yourself) into the drilled hole in the wall.
3. Use a screwdriver to tighten the screws (prepared by yourself) that have passed through the L-shaped rack-mounting kits
to tighten the expansion solenoids to ensure that the switch is firmly installed on the wall.
