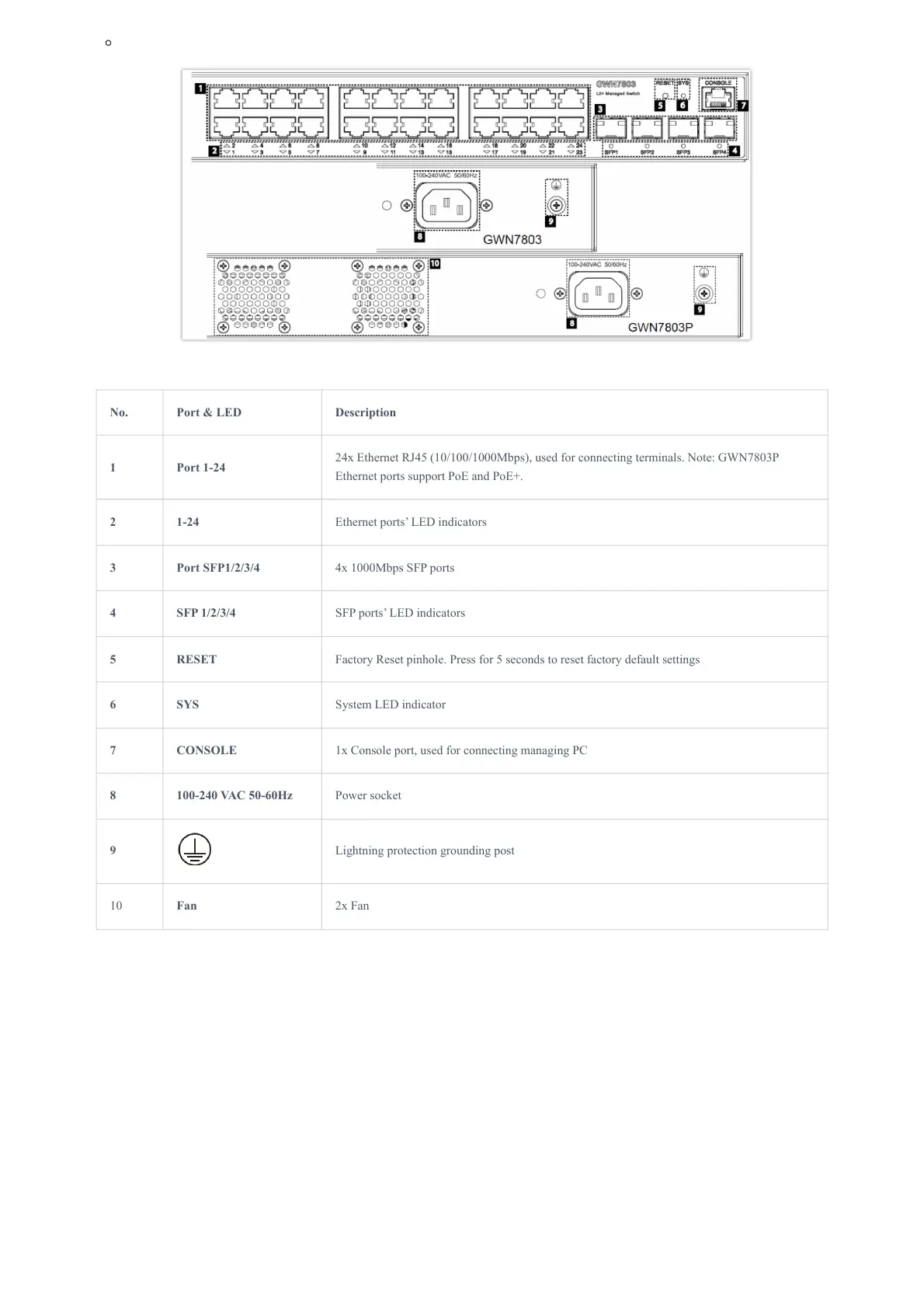

No. Port & LED Description
1 Port 1-24
24x Ethernet RJ45 (10/100/1000Mbps), used for connecting terminals. Note: GWN7803P
Ethernet ports support PoE and PoE+.
2 1-24 Ethernet ports’ LED indicators
3 Port SFP1/2/3/4 4x 1000Mbps SFP ports
4 SFP 1/2/3/4 SFP ports’ LED indicators
5 RESET Factory Reset pinhole. Press for 5 seconds to reset factory default settings
6 SYS System LED indicator
7 CONSOLE 1x Console port, used for connecting managing PC
8 100-240 VAC 50-60Hz Power socket
9
Lightning protection grounding post
10 Fan 2x Fan
