Grandstream Networks GWN780 Series User Manual

GWN7801(P) Ports and LEDs

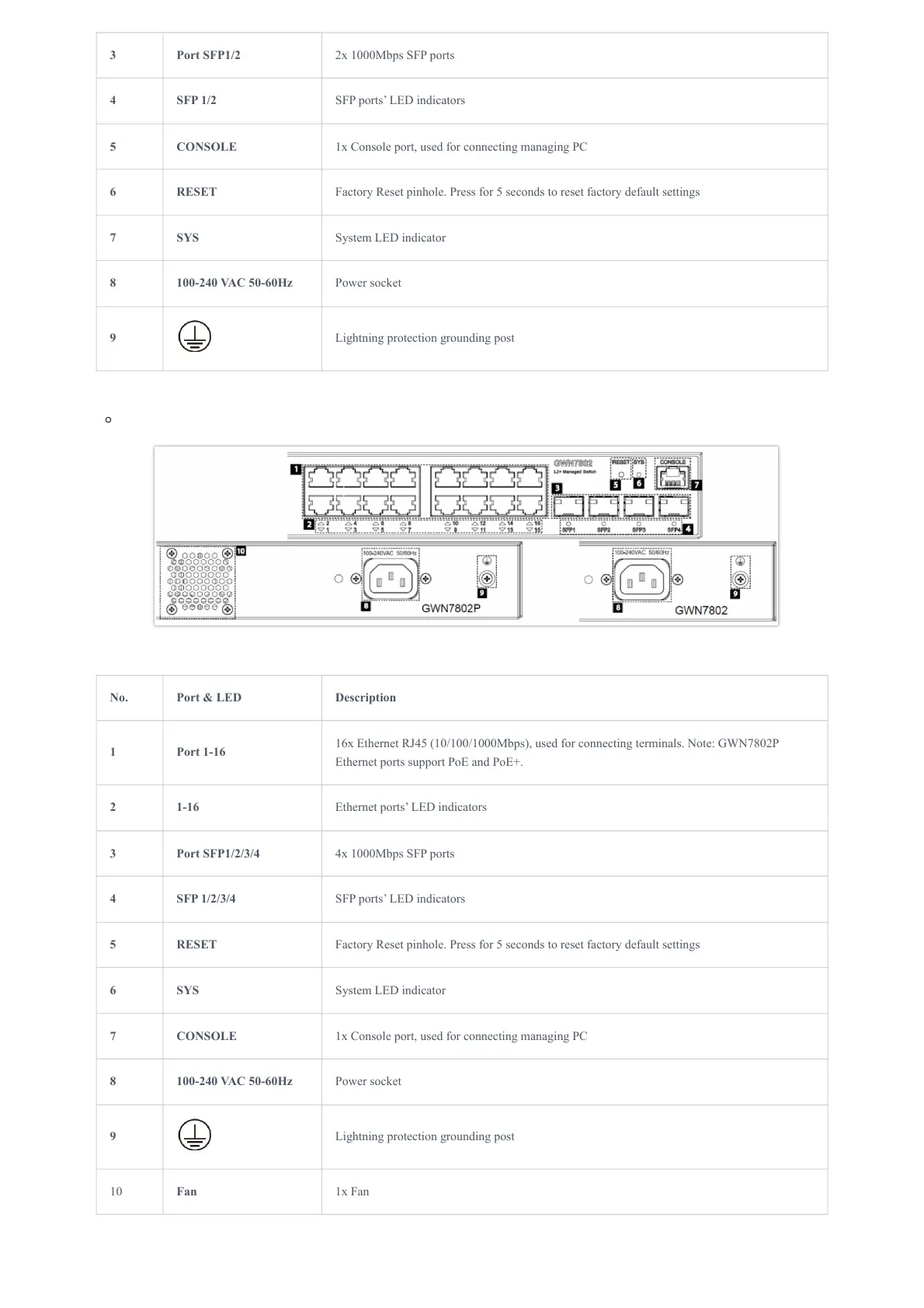

GWN7802/GWN7802P
GWN7802/GWN7802P Ports
GWN7802(P) Ports and LEDs
3 Port SFP1/2 2x 1000Mbps SFP ports
4 SFP 1/2 SFP ports’ LED indicators
5 CONSOLE 1x Console port, used for connecting managing PC
6 RESET Factory Reset pinhole. Press for 5 seconds to reset factory default settings
7 SYS System LED indicator
8 100-240 VAC 50-60Hz Power socket
9
Lightning protection grounding post
No. Port & LED Description
1 Port 1-16
16x Ethernet RJ45 (10/100/1000Mbps), used for connecting terminals. Note: GWN7802P
Ethernet ports support PoE and PoE+.
2 1-16 Ethernet ports’ LED indicators
3 Port SFP1/2/3/4 4x 1000Mbps SFP ports
4 SFP 1/2/3/4 SFP ports’ LED indicators
5 RESET Factory Reset pinhole. Press for 5 seconds to reset factory default settings
6 SYS System LED indicator
7 CONSOLE 1x Console port, used for connecting managing PC
8 100-240 VAC 50-60Hz Power socket
9
Lightning protection grounding post
10 Fan 1x Fan
