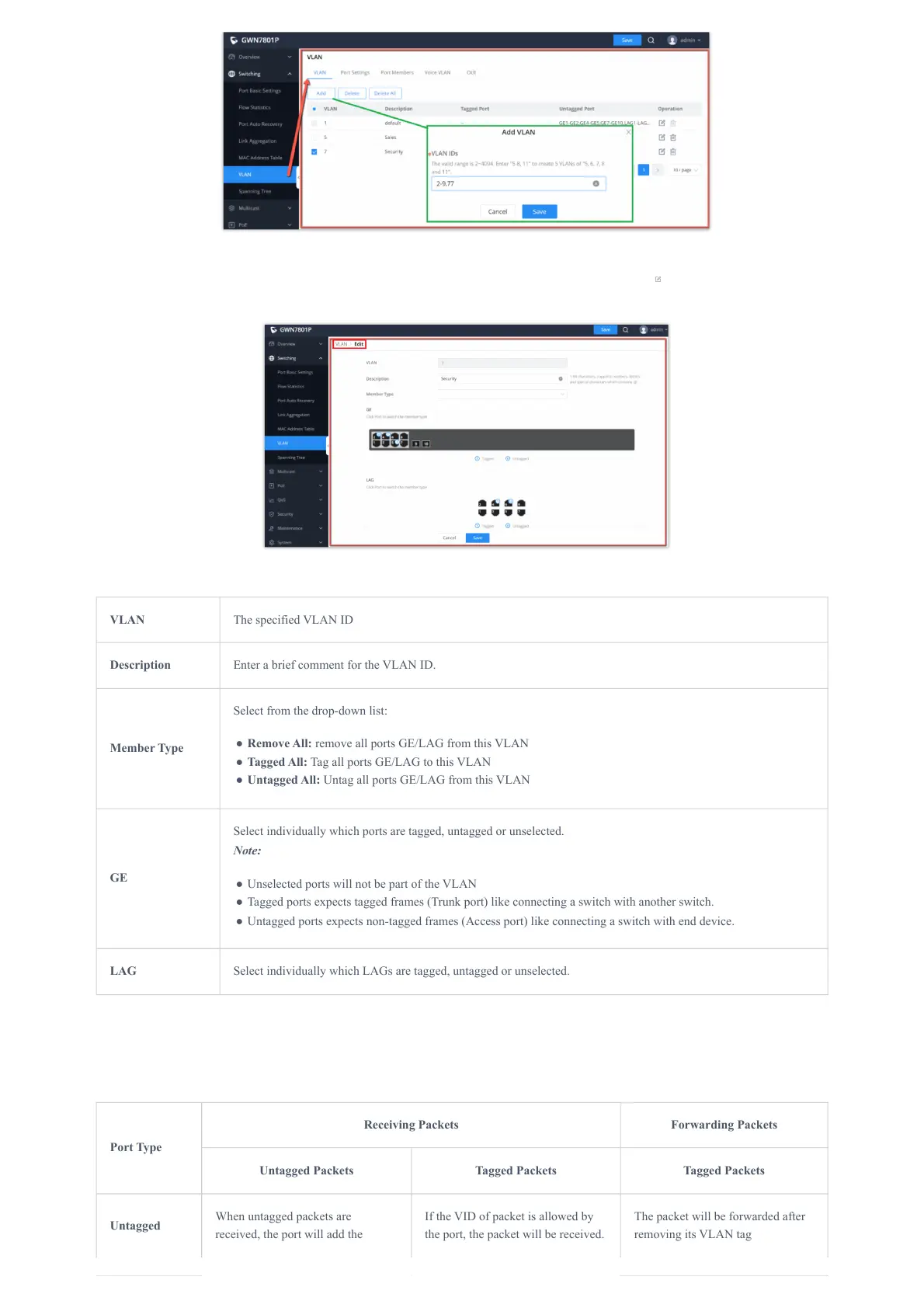

Add a VLAN
If the VLAN is already created there is also the option to modify it by clicking on modify button for more options and
settings like Description, Tagged and Untagged ports and LAGs.
Edit VLAN
Edit VLAN
Please refer to this Table below for more details about Tagged and Untagged Ports.
VLAN The specified VLAN ID
Description Enter a brief comment for the VLAN ID.
Member Type
Select from the drop-down list:
● Remove All: remove all ports GE/LAG from this VLAN
● Tagged All: Tag all ports GE/LAG to this VLAN
● Untagged All: Untag all ports GE/LAG from this VLAN
GE
Select individually which ports are tagged, untagged or unselected.
Note:
● Unselected ports will not be part of the VLAN
● Tagged ports expects tagged frames (Trunk port) like connecting a switch with another switch.
● Untagged ports expects non-tagged frames (Access port) like connecting a switch with end device.
LAG Select individually which LAGs are tagged, untagged or unselected.
When untagged packets are
received, the port will add the
If the VID of packet is allowed by
the port, the packet will be received.
To Next Page
