Greenlee ECCXL - Head and Ram Assembly (EK06 ATL, EK06 ATCL)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
12

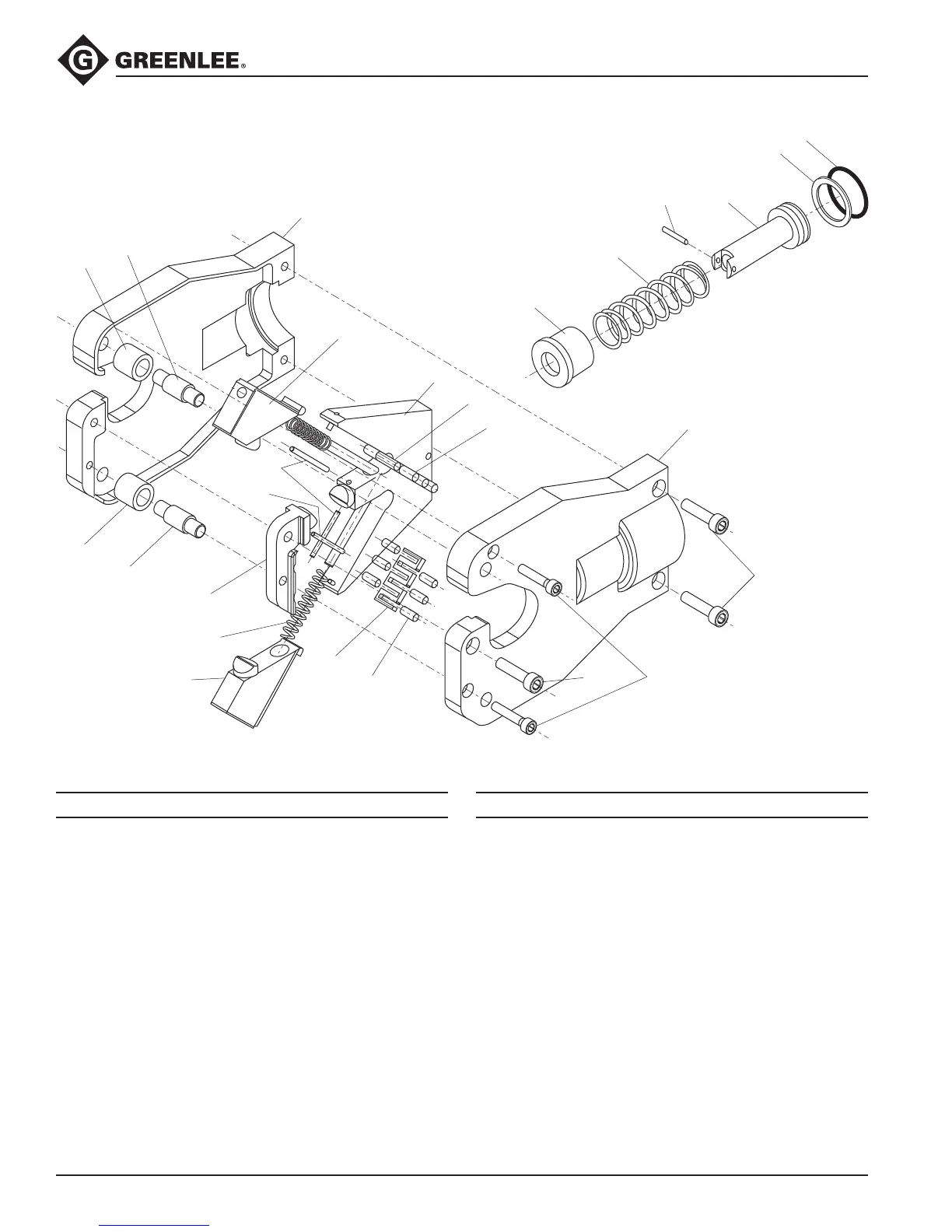

Head and Ram Illustration and Parts List—EK06ATL, EK06ATCL
50017284 Quad point head assembly (EK06ATL)
(includes 1–14)
50017446 Quad point head assembly,
rubber-covered (EK06ATCL)
(includes 1–14)
1 50017292 Cam yoke assembly .................................. 1
2 Roller bearings ........................................ 12
3 Bearing retainers ....................................... 2
4 50060910 Compression spring .................................. 3
5 50061003 Screw ........................................................ 2
6 50060848 Fixed jaw ................................................... 1
7 50060856 Moving jaw ................................................ 2
8 50060864 Pivot roller ................................................. 2
9 50060872 Pivot pin .................................................... 2
10 50061011 Screw ........................................................ 2
Key Part No. Description Qty
50060953 Head kit (includes 11, 12)
50065262 Head kit, rubber-covered
(includes 11A, 12A)
11 Head cover (LH) ........................................ 1
11A Head cover (LH), rubber-covered .............. 1
12 Head cover (RH) ........................................ 1
12A Head cover (RH), rubber-covered ............. 1
13 50017276 Spring pin .................................................. 2
14 50017349 Spring pin .................................................. 1
20 O-ring (included in 52054906) ................... 1
21 Backup ring (included in 52054906) .......... 1
22 50063812 Piston ........................................................ 1
23 50063405 Pin ............................................................. 1
24 50058398 Compression spring .................................. 1
25 50063820 Sleeve ........................................................ 1
50061291 Bearing retainer kit (includes 2, 3)
Key Part No. Description Qty
7
1
3
2
5
10
5
2
3
4
6
9
8
8
9
7
12
11
13
14
25
24
23
22
21
20
