Greenlee ECCXL - Motor and Release Lever Assemblies

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6

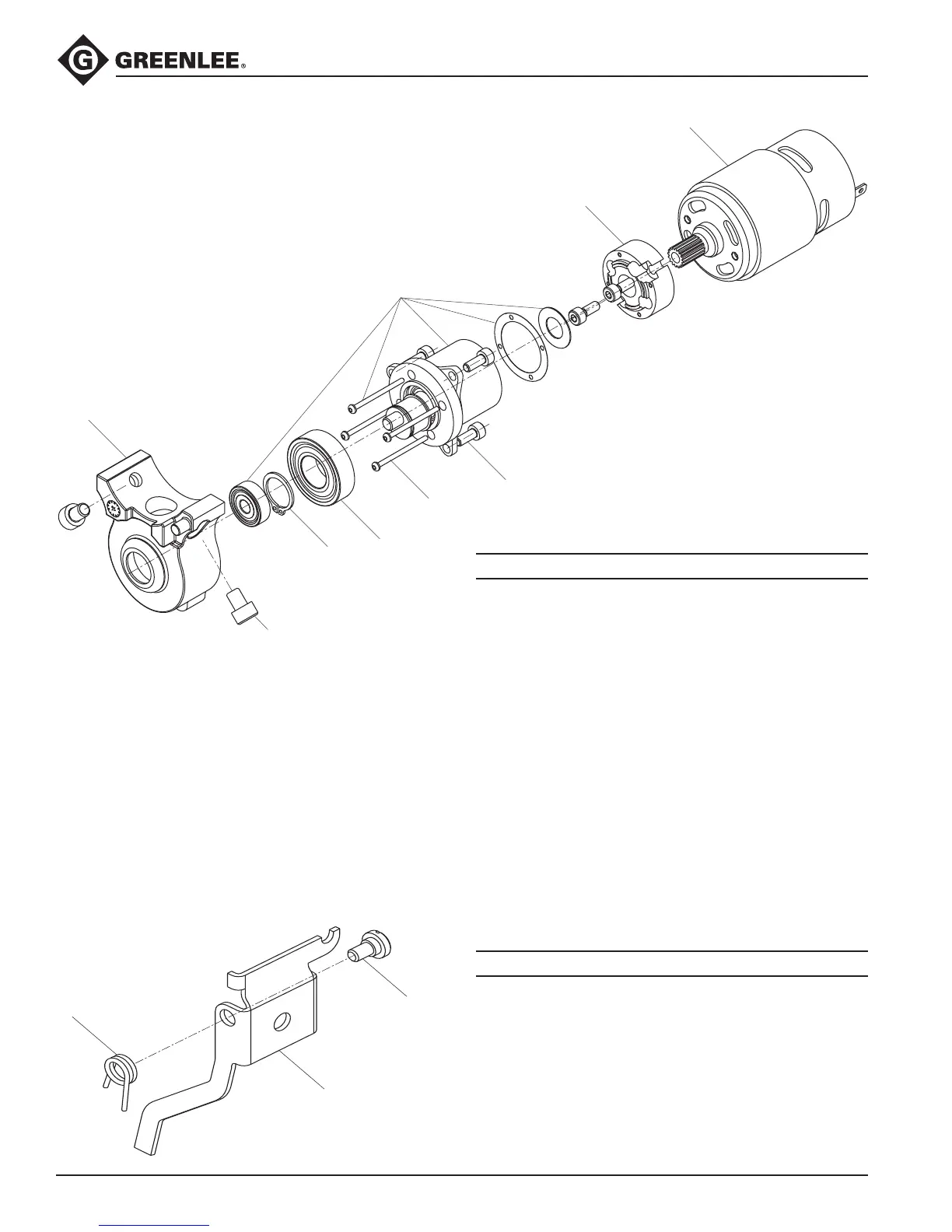

Motor Illustration and Parts List—All Tools
Release Lever Illustration and Parts List—All Tools
1
7
2
8
4
3
5
6
9
3
2
1
52049233 Release lever unit
1 Release lever ............................................. 1
2 Socket head screw .................................... 1
3 Compression spring .................................. 1
52049231 Motor gearbox unit (all except EK622PLU)
52066318 Motor gearbox unit (EK622PLU)
1 52055064 Motor and pinion ....................................... 1
2 Gearbox with eccentric ............................. 1
3 Retaining ring ............................................ 1
4 Grooved ball bearing ................................. 1
5 Screw ........................................................ 2
6 Eccentric case ........................................... 1
7 Flange ........................................................ 1
8 Screw ........................................................ 5
9 52028323 Gear box screw ......................................... 4
Key Part No. Description Qty
Key Part No. Description Qty
