Greenlee ECCXL - E12 Ccxl, Ek12 Idl, Ek1230 L, Ek1230 Cl, Ek1240 L, Ek1240 Cl, Ek1240 Kl, Esc105 L, Ek1550 L, Ek1550 Ftlu, Esg55 L, Esg105 L

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
8
52049228 Pump housing unit (A)
(E12CCXL, EK12IDL, EK1230L,
EK1230CL, EK1240L, EK1240CL,
EK1240KL, ESC105L, ESG55L)
52054793 Pump housing unit (B)
(EK1550L, EK1550FTLU)
52065117 Pump housing unit (C)
(ESG105L)
1 Reservoir plug .............................................
2 Cable tie (included in 52054906) ............... 1
3 52054802 Reservoir ................................................... 1
4 Cable tie (included in 52054906) ............... 1
5 50109308 Threaded bushing ..................................... 1
6A Pump housing ........................................... 1
6B Pump housing ........................................... 1
6C Pump housing ........................................... 1
7 Hanging ring .............................................. 1
8 50109162 Threaded bushing ..................................... 1
9 Filter .......................................................... 1
10 Bearing ...................................................... 1
11 Switch lever ............................................... 1
12 Screw ........................................................ 1
13 Bearing ...................................................... 2
14 O-ring (included in 52054906) ................... 1
15 Pin ............................................................. 1
16 Screw ........................................................ 1
17 Needle valve .............................................. 1
18 O-ring ........................................................ 1
19 Compression spring .................................. 1
20 Disc spring ................................................ 1
21 Solenoid .................................................... 1
52054907 Solenoid kit (includes 17–21)
52055065 Switch lever kit (includes 10–12)
52055068 Wrench, bushing
Key Part No. Description Qty Key Part No. Description Qty
3
4
1
6A, 6B or 6C
10
11
12
8
9
17
19
20
21
13
15
16
5
2
14
7
18

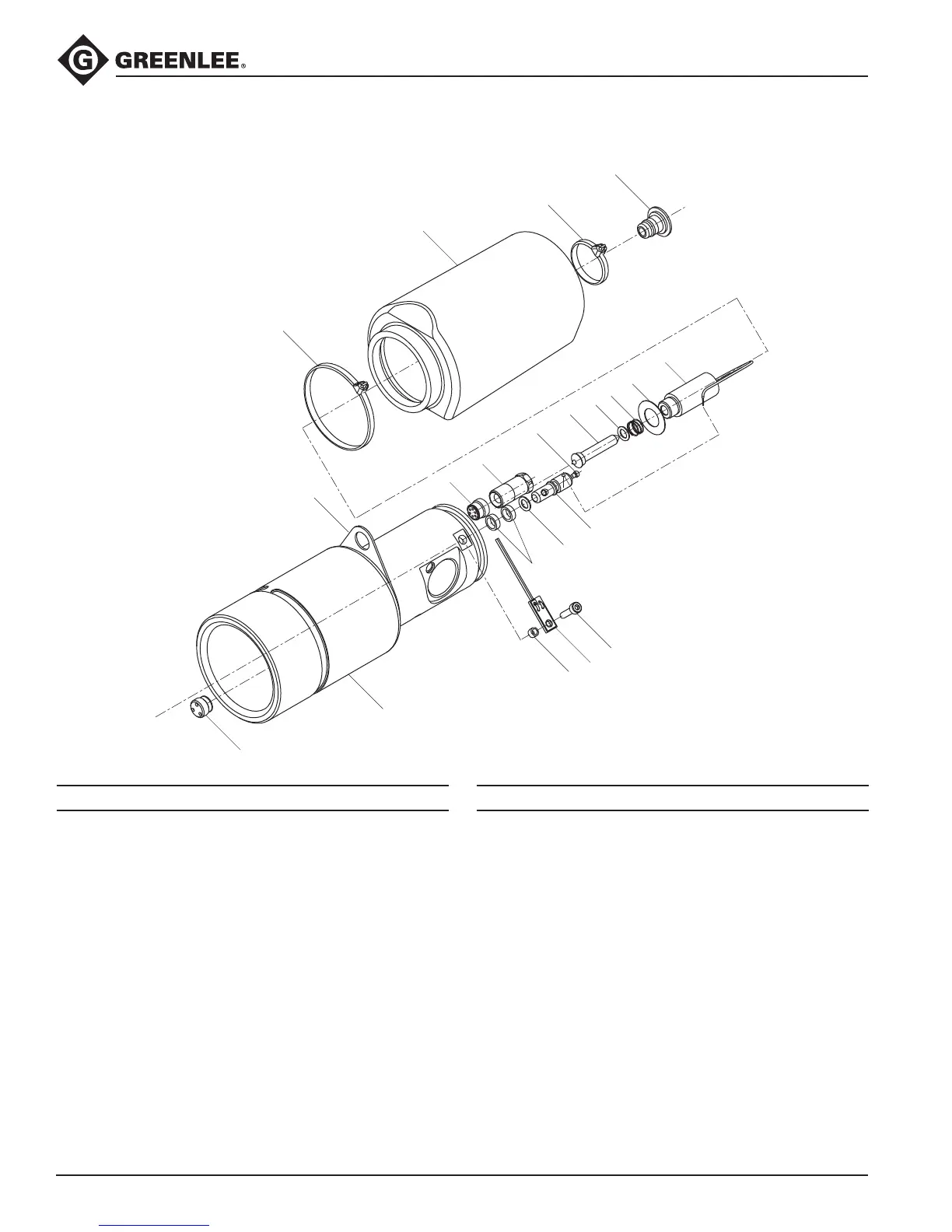

Pump Illustration and Parts List—E12CCXL, EK12IDL, EK1230L, EK1230CL,
EK1240L, EK1240CL, EK1240KL, ESC105L, EK1550L, EK1550FTLU,
ESG55L, ESG105L
