Greenlee ECCXL - Head and Ram Assembly (EK1550 L)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
22

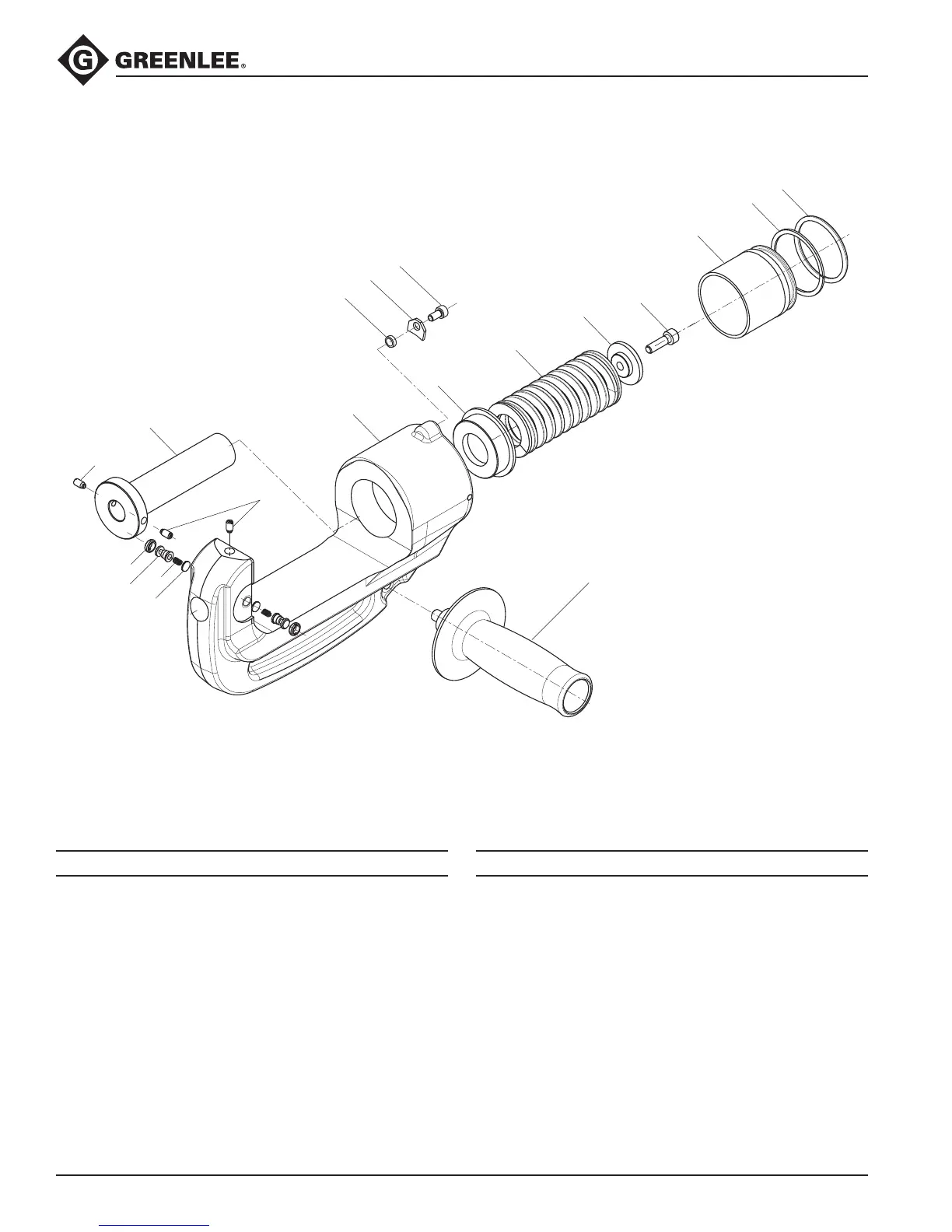

Head and Ram Illustration and Parts List—EK1550L
52048139 Head unit (includes 1–8)
1 Crimp head ................................................ 1
2 Ram ........................................................... 1
3 Piston guide .............................................. 1
4 90539621 Ball plunger ............................................... 3
52047036 Die retainer kit (includes 5–8)
5 Disk ........................................................... 2
6 Spring ........................................................ 2
7 Die pin ....................................................... 2
8 Nut ............................................................. 2
Key Part No. Description Qty
9 52020646 Handle ....................................................... 1
10 Spring ........................................................ 1
11 Screw, M6-1.0 x 20 mm skt head cap ...... 1
12 50066900 End cap ..................................................... 1
13 Piston ........................................................ 1
14 Backup ring (included in 52054906) .......... 1
15 O-ring (included in 52054906) ................... 1
16 50019210 Screw ........................................................ 1
17 50066943 Stop ........................................................... 1
18 Spacer ....................................................... 1
Key Part No. Description Qty
2
4
1
3
10
12
11
8
6
5
7
9
13
14
15
16
17
18
4
