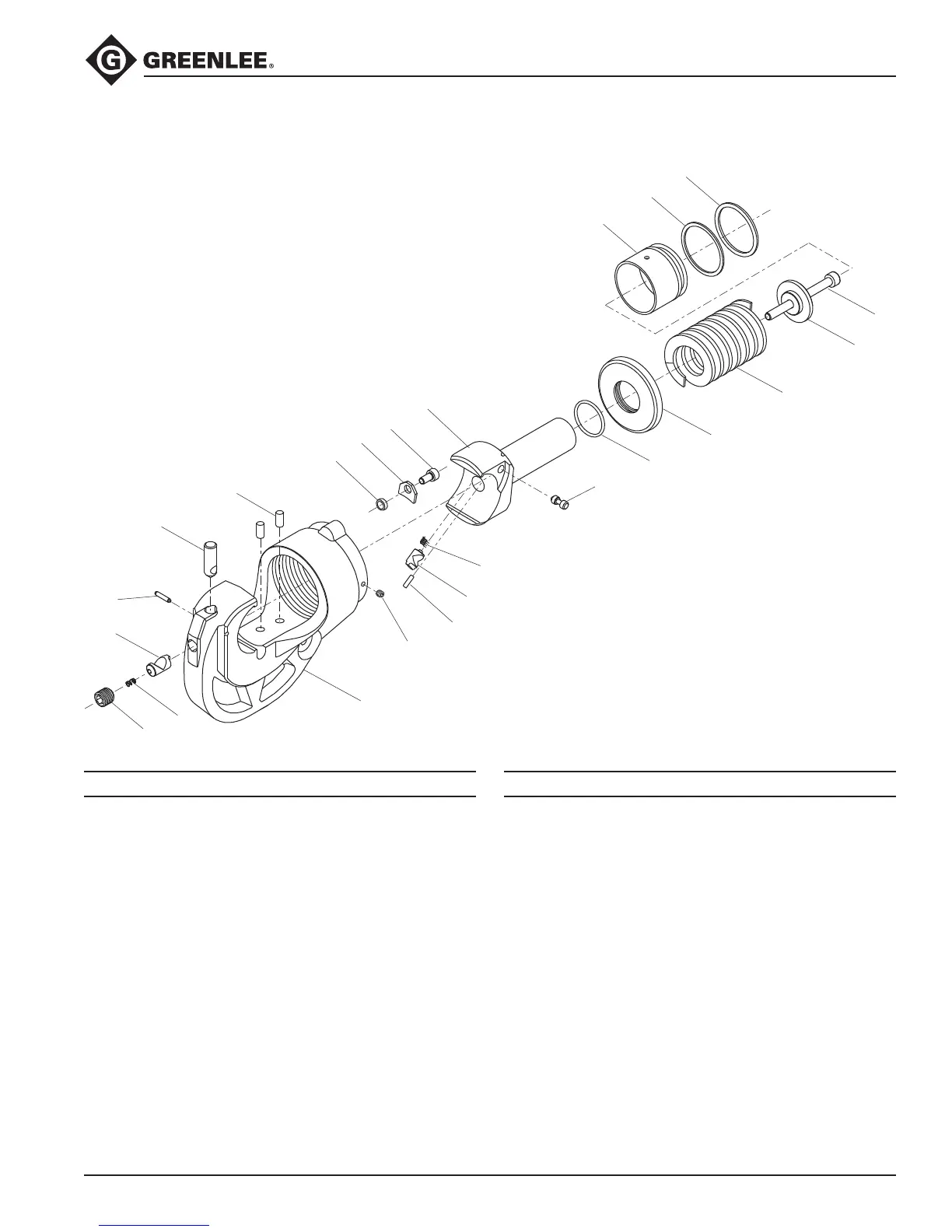

Head and Ram Illustration and Parts List—EK1230L, EK1230CL
50053728 C-head assembly, 30 mm
(includes 1A, 2–8)
50072161 C-head assembly, 30 mm,
PVC-covered (includes 1B, 2– 8)
1A C-head ...................................................... 1
1B C-head, PVC-covered ............................... 1
2 90550609 Set screw .................................................. 1
3 50038214 Compression spring .................................. 1
4 90550633 Groove pin ................................................. 1
5 50053175 Die release button ..................................... 1
6 50053191 Die release pin ........................................... 1
7 90550625 Groove pin ................................................. 2
8 90550617 Set screw .................................................. 1
50053779 Ram assembly (includes 9–13)
9 50038214 Compression spring .................................. 1
10 50053167 Die release pin ........................................... 1
Key Part No. Description Qty
11 50053183 Release shaft ............................................. 1
12 90550641 Spring pin .................................................. 1
13 Ram ........................................................... 1
50067079 Spring kit (includes 14–21)
14 Screw, M5-0.8 x 10 mm skt head cap ...... 1
15 Stop ........................................................... 1
16 Bushing, 5 x 9 x 3T ................................... 1
17 Spring stop ................................................ 1
18 O-ring (included in 52054906) ................... 1
19 Ram spring ................................................ 1
20 Screw, M6-1.0 x 70 mm skt head cap ...... 1
21 Disc ........................................................... 1
22 O-ring (included in 52054906) ................... 1
23 Backup ring (included in 52054906) .......... 1
24 50067796 Piston ........................................................ 1
