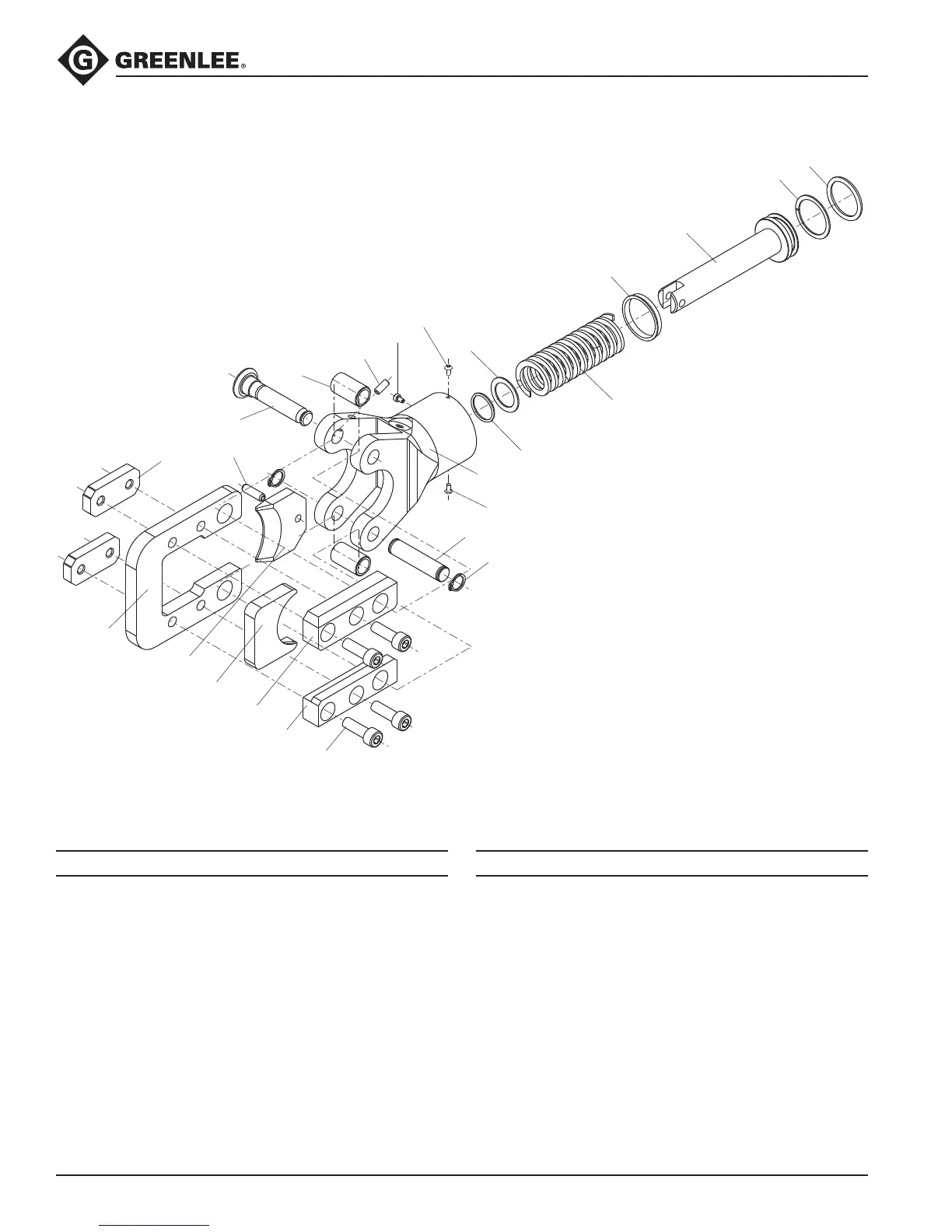

Head and Ram Illustration and Parts List—ESG45L
50103946 Head and ram unit (includes 1–22)
1 O-ring (included in 52054906) ................... 3
2 Piston backup ring
(included in 52054906) .............................. 1
3 50041681 Screw, M3x6 mm button hd cap
(units without item 22) ............................... 2
* 52057106 Screw, M3x5 mm socket hd cap
(units with item 22) .................................... 1
4 50058258 Compression spring .................................. 2
5 50058371 Adapter disk .............................................. 2
6 O-ring (included in 52054906) ................... 1
7 50103962 Piston ...................................................... 1
8 50103970 Stationary blade ........................................ 1
9 50103989 Cutting blade ............................................. 1
Key Part No. Description Qty
10 50103997 Screw ........................................................ 4
11 50104004 Snap ring ................................................... 2
12 50104012 Cutting head .............................................. 1
13 50104020 Cutting head base ..................................... 1
14 50106600 Pin, 8 x 20 ................................................. 1
15 50104039 Sleeve ........................................................ 2
16 50104047 Pin ............................................................. 1
17 50104055 Guide plate ................................................ 1
18 50104063 Side plate .................................................. 2
19 50104071 Pull pin....................................................... 1
20 50104080 Brace plate ................................................ 1
21 50104101 Screw ........................................................ 1
22 52065822 Stroke adjustor (used in models
with M3x5 mm screw) ............................... 1
Key Part No. Description Qty
18
11
16
13
21
19
14
15
12
9
8
20
17
10
5
6
4
7
2
1
3
3
22
3*
