Greenlee ECCXL - Head and Ram Assembly (ESC85 L)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
28

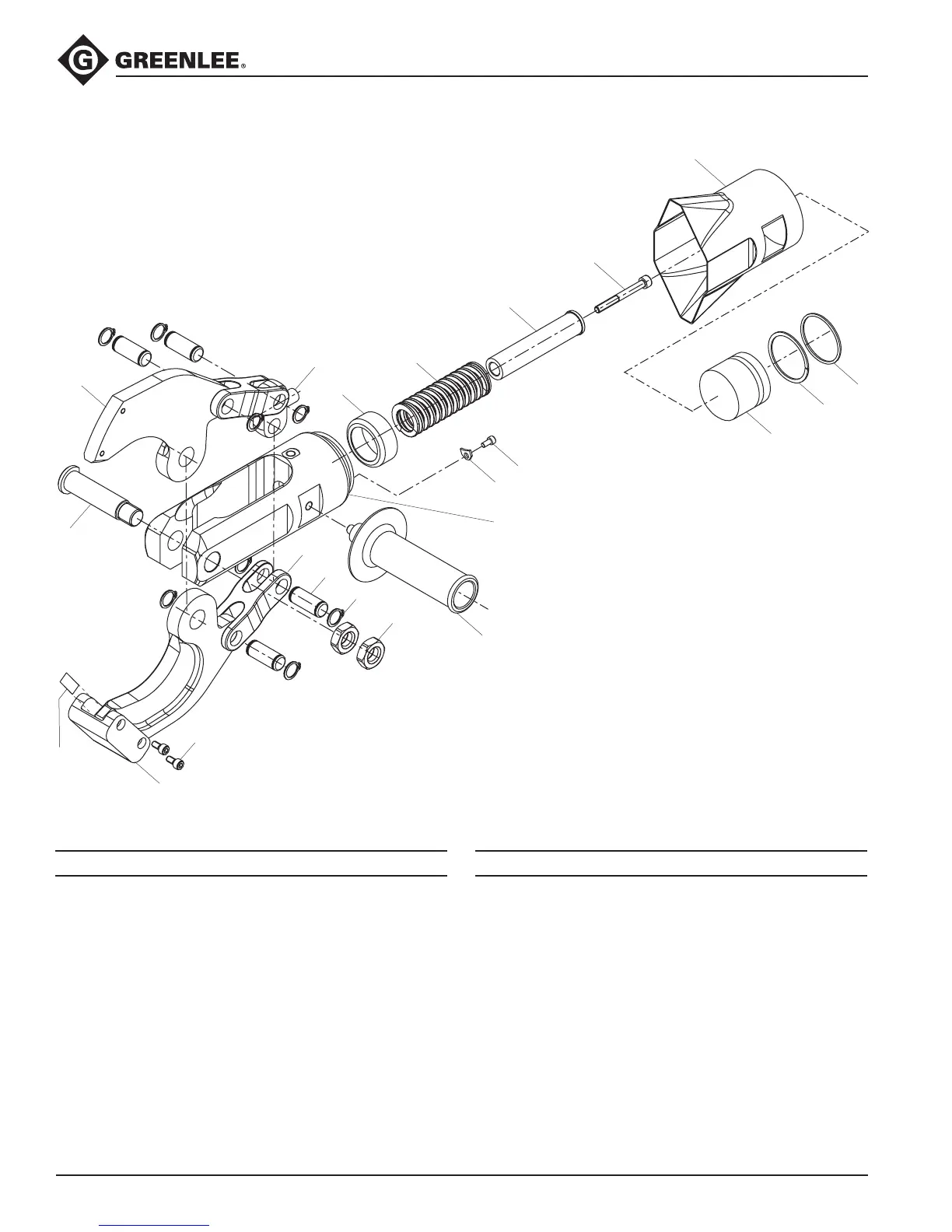

Head and Ram Illustration and Parts List—ESC85L
52057512 Cutting head (includes 1–18)
1 Shrink cover .............................................. 1
2 M6 x 55 mm socket head cap screw ........ 1
3 52020641 Piston rod .................................................. 1
4 50058258 Return spring ............................................. 1
5 52057514 Spring cup ................................................. 1
6 Bearing block ............................................ 1
7 52057513 Blade ......................................................... 2
8 52020643 Clevis pin ................................................... 1
9 52046709 Blade guide ............................................... 1
10 50043676 M5 socket head cap screw ....................... 2
11 Link ............................................................ 2
Key Part No. Description Qty
12 Pin ............................................................. 4
13 Retaining ring ............................................ 8
14 52020644 M16 hex nut .............................................. 2
15 52020646 Handle ....................................................... 1
16 Yoke ........................................................... 1
17 50066943 Stop ........................................................... 1
18 Screw ........................................................ 1
19 52020648 Piston ....................................................... 1
20 Piston backup ring
(included in 52054906) .............................. 1
21 O-ring (included in 52054906) ................... 1
52046857 Pin kit (includes 12,13)
Key Part No. Description Qty
19
20
21
User-added
shim
if required
2
18
17
15
12
13
14
10
7
9
8
6
3
4
1
11
5
16
