Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
13

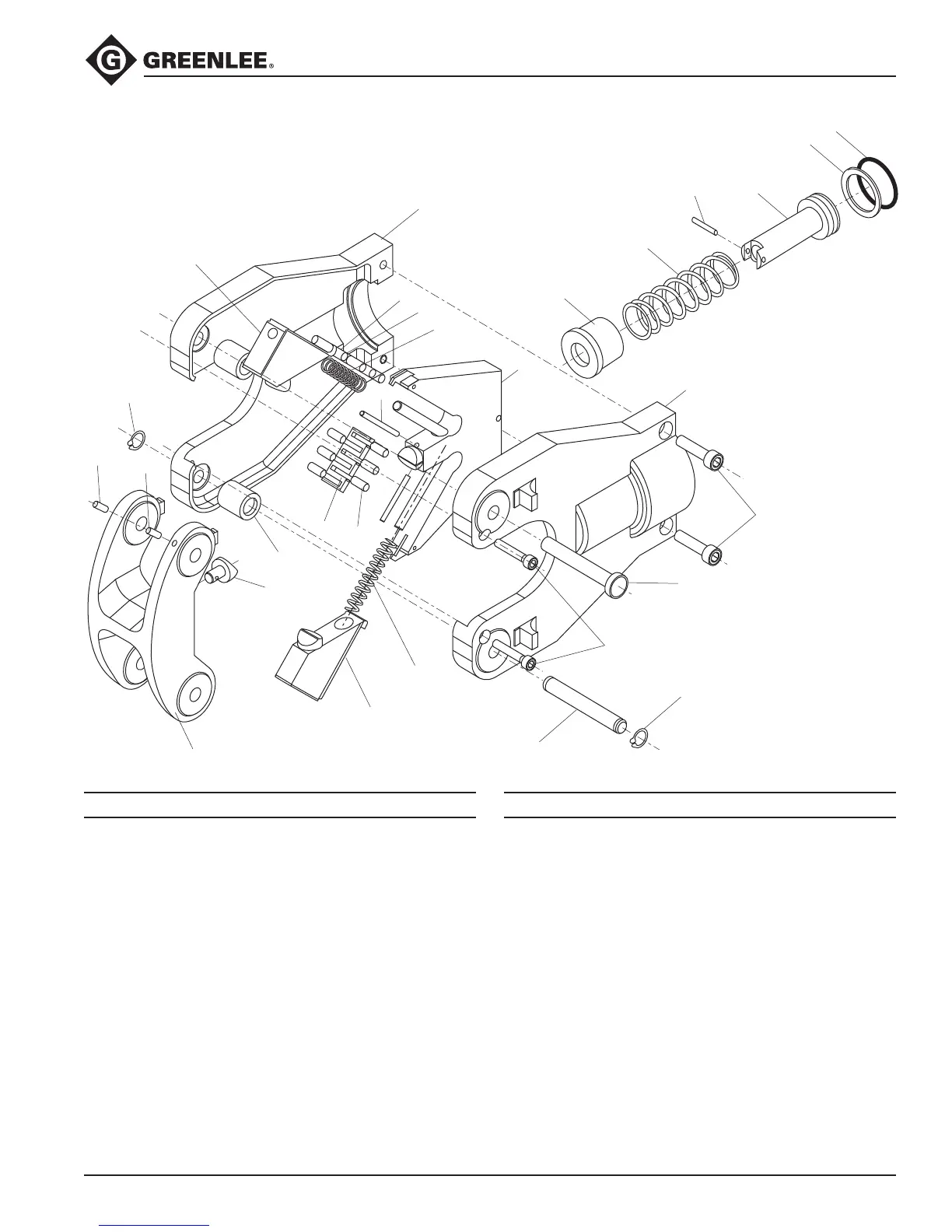

Head and Ram Illustration and Parts List—EK06FTL
50017225 Quad point flip-top head assembly
(includes 1–17)
1 50017233 Cam yoke assembly .................................. 1
2 50061178 Latch (includes 7) ...................................... 1
3 50061275 Moving jaw ................................................ 2
4 Roller bearing .......................................... 12
5 Bearing retainer ......................................... 2
6 50061216 Latch mounting pin ................................... 1
7 Latch nib (included in 50061178) .............. 1
8 50061240 Lock pin ..................................................... 1
9 50061160 Side jaw roller ............................................ 2
10 50060910 Compression spring .................................. 2
11 50060961 Ball screw .................................................. 1
Key Part No. Description Qty
12 50061224 Snap ring ................................................... 2
13 50061003 Screw ........................................................ 2
14 50061038 Screw ........................................................ 2
15 50083660 Set screw .................................................. 1
16 50017276 Spring pin .................................................. 2
17 52023662 Head cover ................................................ 2
20 O-ring (included in 52054906) ................... 1
21 Backup ring (included in 52054906) .......... 1
22 50063812 Piston ........................................................ 1
23 50063405 Pin ............................................................. 1
24 50058398 Compression spring .................................. 1
25 50063820 Sleeve ........................................................ 1
50061291 Bearing retainer kit (includes 4, 5)
Key Part No. Description Qty
3
5
4
10
9
12
7
4
10
3
6
12
5
11
15
13
1
14
8
17
17
16
25
24
23
22
21
20
To Next Page
