Greenlee ECCXL - Head and Ram Assembly (ESG105 LU)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
27

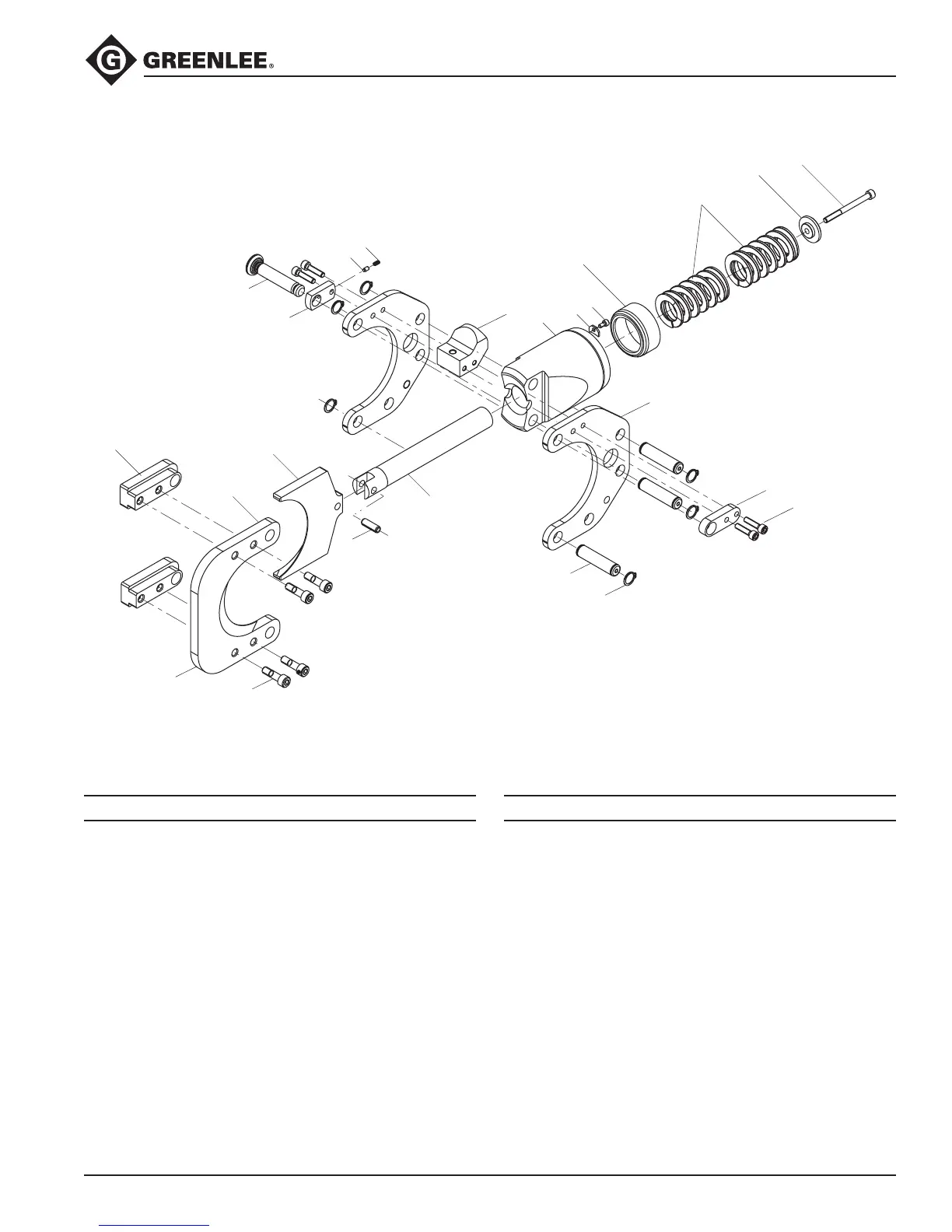

Head and Ram Illustration and Parts List—ESG105LU
52065118 Cutting head (includes 1–23)
1 52065125 Movable cutting blade ............................... 1
2 52056975 Pin ............................................................. 1
3 52065124 Fixed cutting blade .................................... 1
4 Cutting head base ..................................... 1
5 Handle block ............................................. 1
6 Frame plate ............................................... 2
7 Spacer ....................................................... 1
8 Pin guide ................................................... 1
9 Blade guide ............................................... 2
10 Socket head cap screw ............................. 1
11 End cap ..................................................... 1
12 Spring, 40 mm ........................................... 2
Key Part No. Description Qty Key Part No. Description Qty
13 Cylinder sleeve .......................................... 1
14 Blade holder .............................................. 1
15 Screw ........................................................ 4
16 Pin ............................................................. 3
17 Retaining ring ............................................ 6
18 Screw ........................................................ 4
19 Compression spring .................................. 1
20 Ball pin detent ........................................... 1
21 Pin assembly ............................................. 1
22 Fillister head screw.................................... 1
23 Stop ........................................................... 1
52065149 Plate kit (includes 4–9)
52065150 Spring kit (includes 10–14)
52065181 Fastener kit (includes 2, 15–23)
10
11
21
8
20
19
15
3
9
14
2
13
12
23
22
5
1
3
16
17
6
7
18
4
