Greenlee ECCXL - Head and Ram Assembly (ESP710 L)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
30

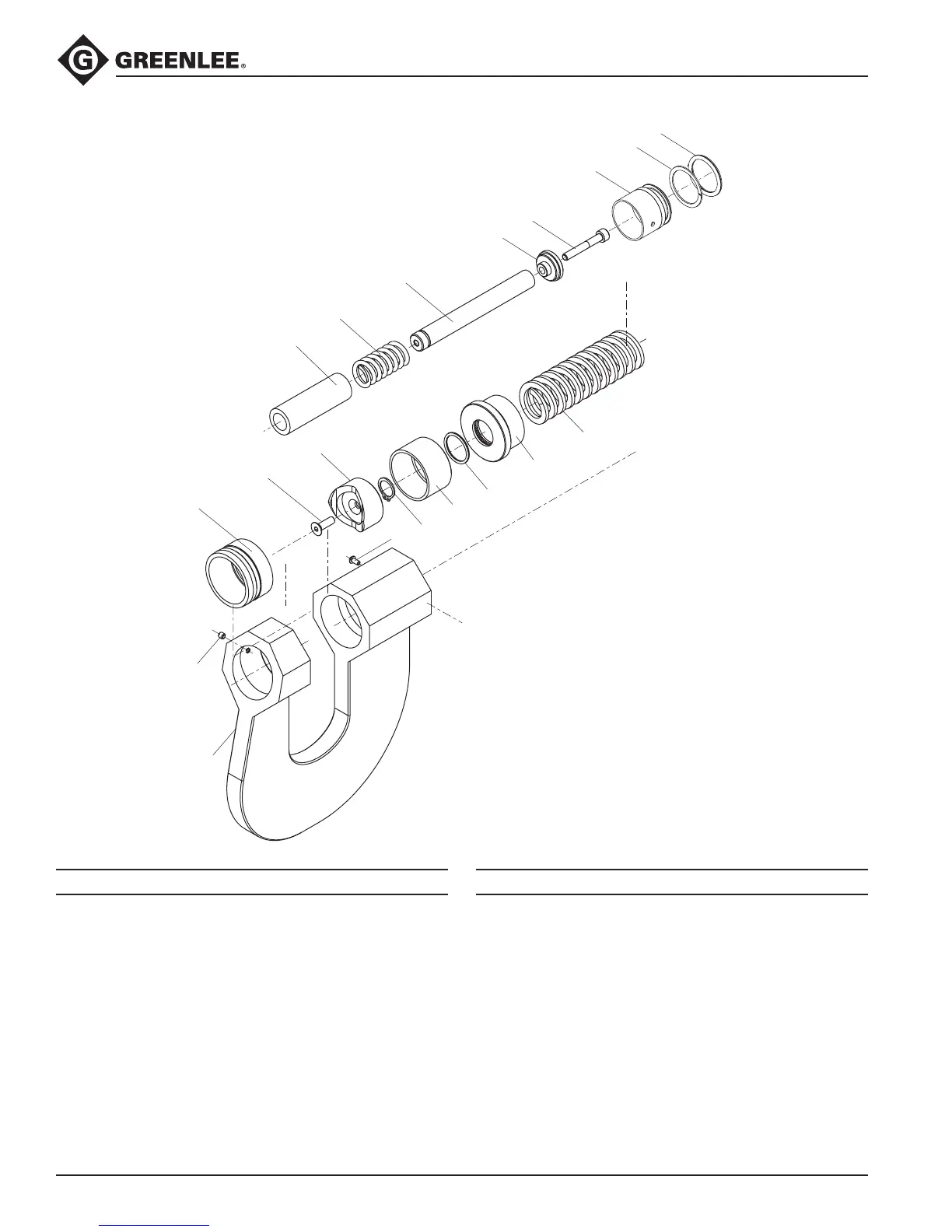

Head and Ram Illustration and Parts List—ESP710L
52027451 C-Head unit (includes 5–20)
1 50103431 Retaining ring ............................................ 1
2 50103440 Punch ........................................................ 1
3 50212974 Die ............................................................. 1
4 Screw ........................................................ 1
5 50103466 Stripper...................................................... 1
6 C-head ...................................................... 1
7 Screw, M4 x 6............................................ 2
8 Piston ........................................................ 1
9 Bushing ..................................................... 1
10 Spring ........................................................ 1
Key Part No. Description Qty
11 Sleeve ........................................................ 1
12 O-ring (included in 52054906) ................... 1
13 Compression spring .................................. 1
14 End cap ..................................................... 1
15 50121960 Screw ........................................................ 1
16 50103512 Screw ........................................................ 1
20 O-ring (included in 52054906) ................... 1
21 Backup ring (included in 52054906) .......... 1
22 52020648 Piston cup ................................................. 1
Key Part No. Description Qty
4
3
16
2
5
12
9
13
15
14
8
10
11
7
1
6
22
21
20
