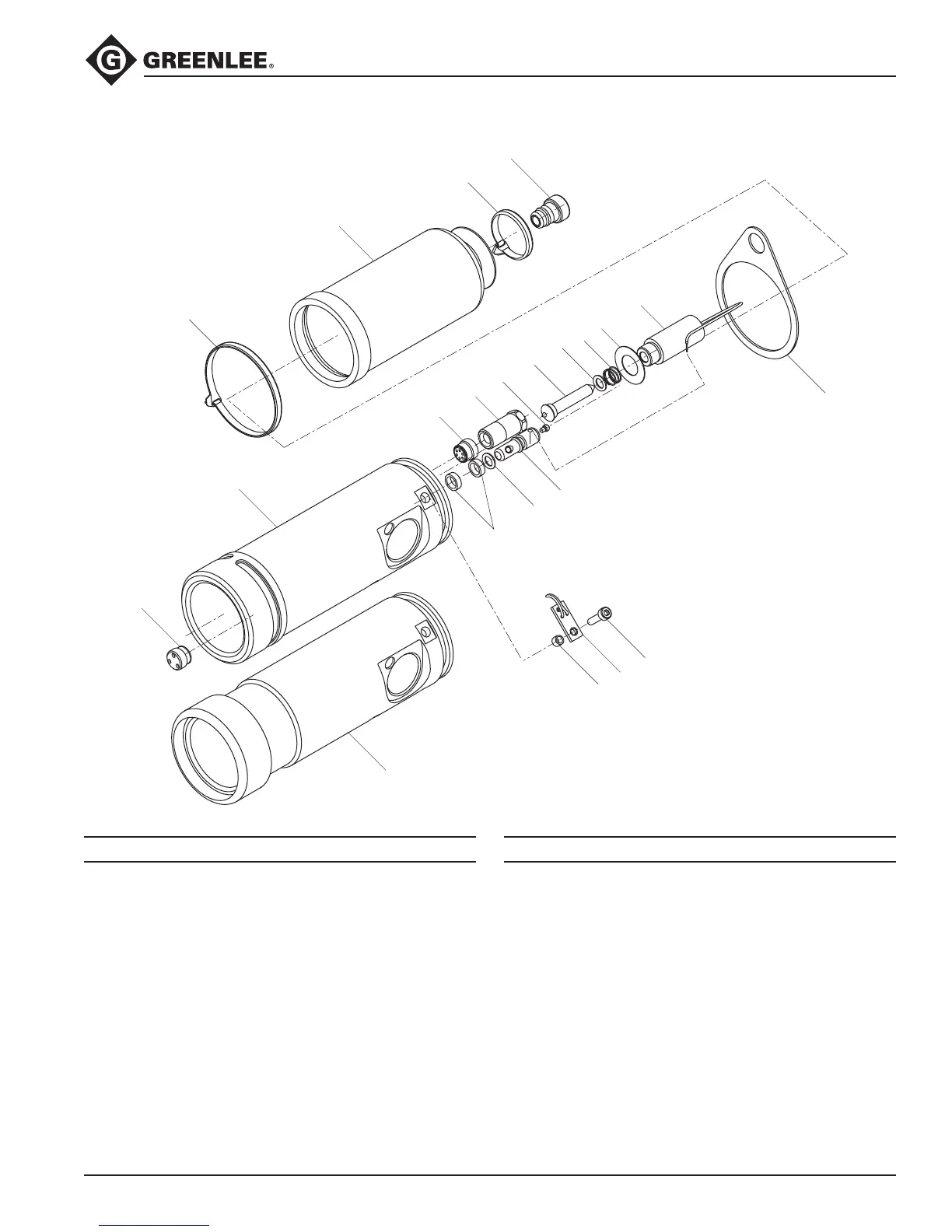

Pump Illustration and Parts List—ECCXL, ESG45L, ESG50L, ESC85L,
EK06ATL, EK06ATCL, EK06FTL
52049246 Pump housing unit (A)
(ECCXL, ESG45L, ESG50L, ESC85L)
52054792 Pump housing unit (B)
(EK06ATL, EK06ATCL, EK06FTL)
1 Reservoir plug ........................................... 1
2 52054820 Reservoir ................................................... 1
3 Cable tie (included in 52054906) ............... 1
4 50109308 Threaded bushing ..................................... 1
5A Pump housing ........................................... 1
5B Pump housing ........................................... 1
6 50109162 Threaded bushing ..................................... 1
7 Filter .......................................................... 1
8 Bearing ...................................................... 1
9 Switch lever ............................................... 1
10 Screw ........................................................ 1
11 Bearing ...................................................... 2
12 O-ring (included in 52054906) ................... 1
13 Pin ............................................................. 1
14 Screw ........................................................ 1
15 Needle valve .............................................. 1
16 O-ring ........................................................ 1
17 Compression spring .................................. 1
18 Disc spring ................................................ 1
19 Solenoid .................................................... 1
20 Hanging ring .............................................. 1
21 Cable tie (included in 52054906) ............... 1
52054907 Solenoid kit (includes 15–19)
52055065 Switch lever kit (includes 8–10)
52055068 Wrench, bushing
